2005 Lexus LS 430FACTORY OEM SERVICE PROCEDURE
Suspension Control System: Precaution
NOTE:
When disconnecting the negative (-) battery terminal, initialize the following system after the terminal is reconnected.
SUSPENSION CONTROL SYSTEM REFERENCE
| System Name | See Procedure |
| Front Power Seat Control System | INITIALIZATION |
- JACK OR LIFT UP AND DOWN
- When a proceed is performed under the vehicle or when jacking the vehicle up, make sure to turn the ignition switch off.

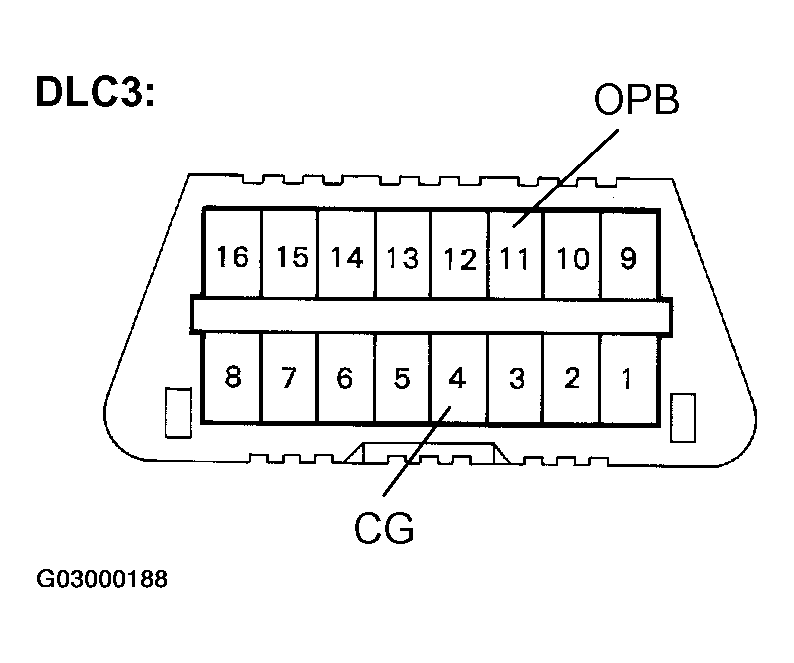

- If the vehicle must be raised with its engine running, connect terminals OPB and CG of the DLC3 to stop the vehicle height control operation of the suspension control ECU.

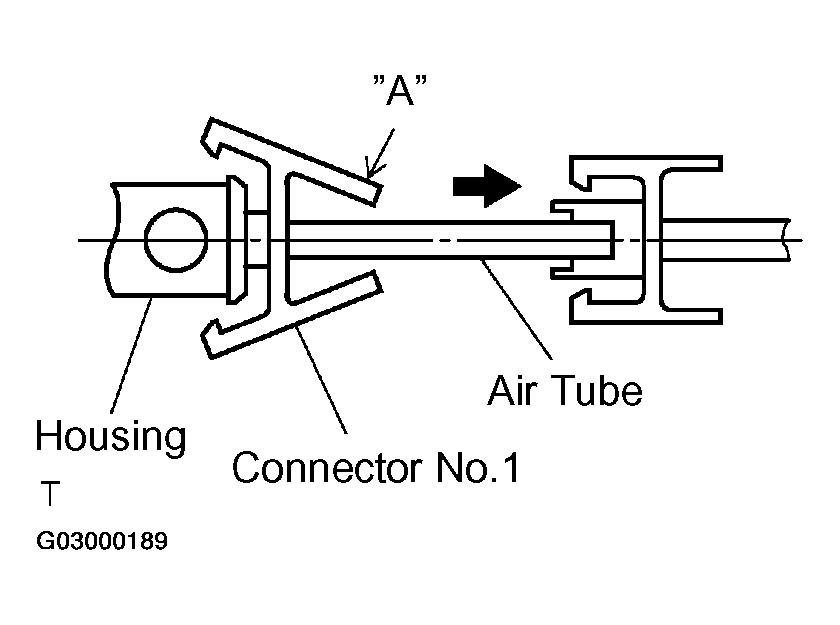

- DISCONNECT AND CONNECT HEIGHT CONTROL TUBE (Type 1)
