2005 Lexus LS 430FACTORY OEM SERVICE PROCEDURE
Supplemental Restraint System: Preparation

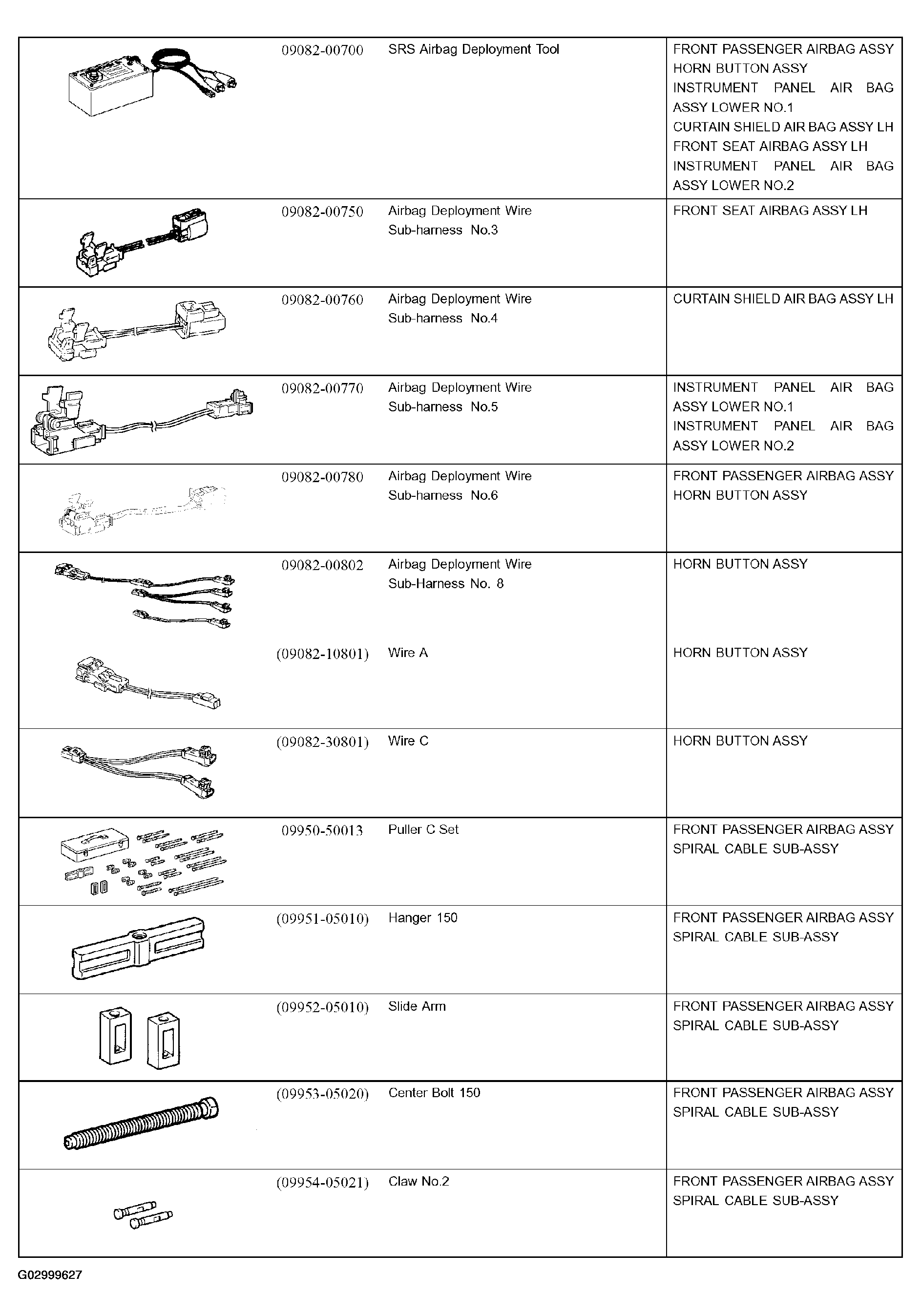

SST

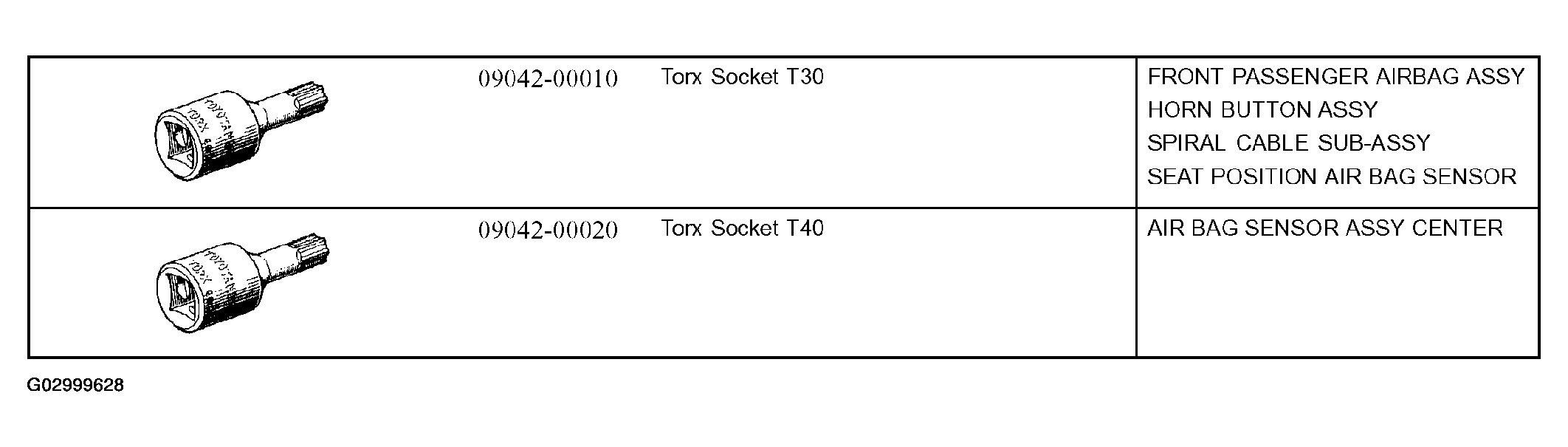

Recommended Tools
Torx is a registered trademark of Textron Inc.
Equipment
EQUIPMENT
| Torque wrench | |
| Bolt Length: 35.0 mm (1.378 in.) Pitch: 1.0 mm (0.039 in.) Diameter: 6.0 mm (0.236 in.) | Airbag disposal |
| Tire Width: 185 mm (7.28 in.) Inner diameter: 360 mm (14.17 in.) | Airbag disposal |
| Tire with disc wheel Width: 185 mm (7.28 in.) Inner diameter: 360 mm (14.17 in.) | Airbag disposal |
| Plastic bag | Airbag disposal |
