2005 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Emission Control: Preparation

SST

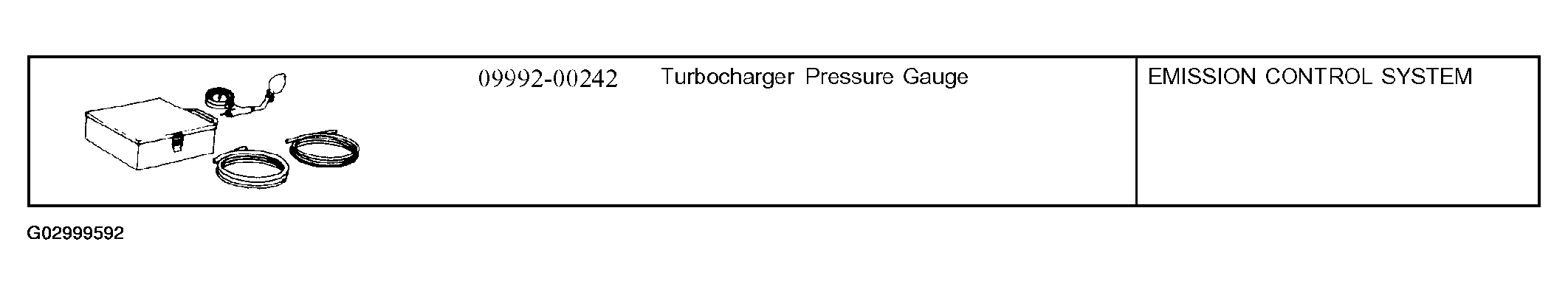

Fig 1: Emission Control Tools Reference
G02999592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Battery
Clean hose
Hose clipper
Ohmmeter
Service Wire Harness
Torque wrench
Vacuum gauge

SSM

SSM REFERENCE

08833-00070 "Adhesive 1324," THREE BOND 1324 or equivalent VENTILATION VALVE SUB-ASSY
