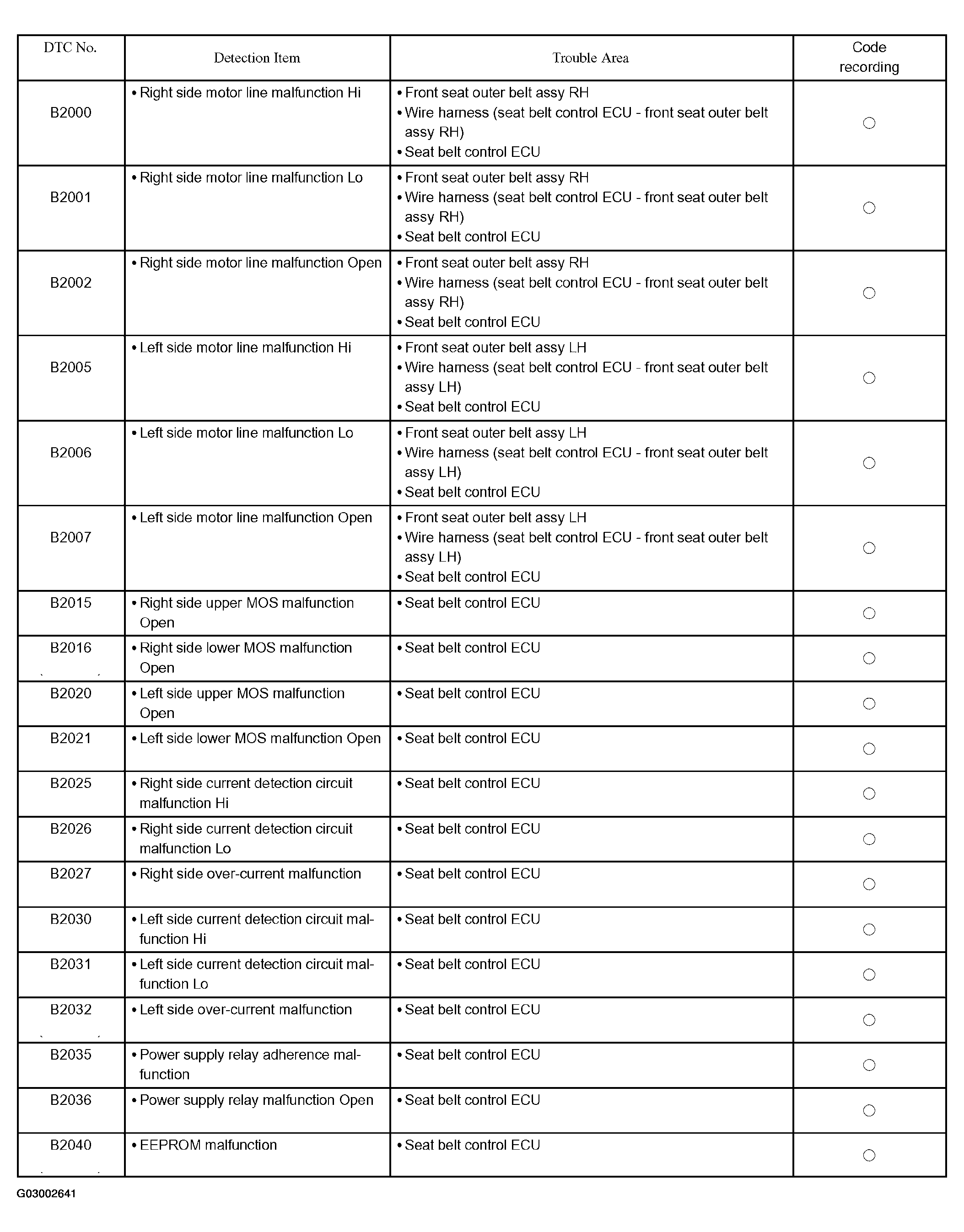

Diagnostic Trouble Code Chart
HINT:
If a trouble code is displayed during the DTC check, check the circuit listed for the code .
| DTC | Description |
|---|---|
| DTC B2000 | RIGHT SIDE MOTOR LINE MALFUNCTION HI |
| DTC B2001 | RIGHT SIDE MOTOR LINE MALFUNCTION LO |
| DTC B2002 | RIGHT SIDE MOTOR LINE MALFUNCTION OPEN |
| DTC B2005 | LEFT SIDE MOTOR LINE MALFUNCTION HI |
| DTC B2006 | LEFT SIDE MOTOR LINE MALFUNCTION LO |
| DTC B2007 | LEFT SIDE MOTOR LINE MALFUNCTION OPEN |
| DTC B2015, B2016, B2020, B2021, B2025, B2026, B2027, B2030, B2031, B2032, B2035, B2036, B2040, B2041, B2047 | RIGHT/LEFT SIDE UPPER/LOWER MOS MALFUNCTION OPEN, RIGHT SIDE CURRENT DETECTION CIRCUIT MALFUNCTION HI/LO, RIGHT/LEFT SIDE OVER-CURRENT MALFUNCTION, LEFT SIDE CURRENT DETECTION CIRCUIT MALFUNCTION HI/LO, POWER SUPPLY RELAY ADHERENCE MALFUNCTION, POWER SUPPLY RELAY MALFUNCTION OPEN, EEPROM MALFUNCTION, FALL OF THE RAISED VOLTAGE, PRE-COLLISION SAFETY ECU INNER CIRCUIT MALFUNCTION |
| DTC B2043 | FALL OF THE +B VOLTAGE |
| DTC B2059 | VEHICLE SPEED MALFUNCTION OF DISTANCE CONTROL ECU |
| DTC B2064 | VEHICLE TYPE SIGNAL MALFUNCTION |
