2005 Lexus LS 430FACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Replacement
- REMOVE ENGINE UNDER COVER NO. 1
- REMOVE CRANKSHAFT POSITION SENSOR
- Disconnect the sensor connector.

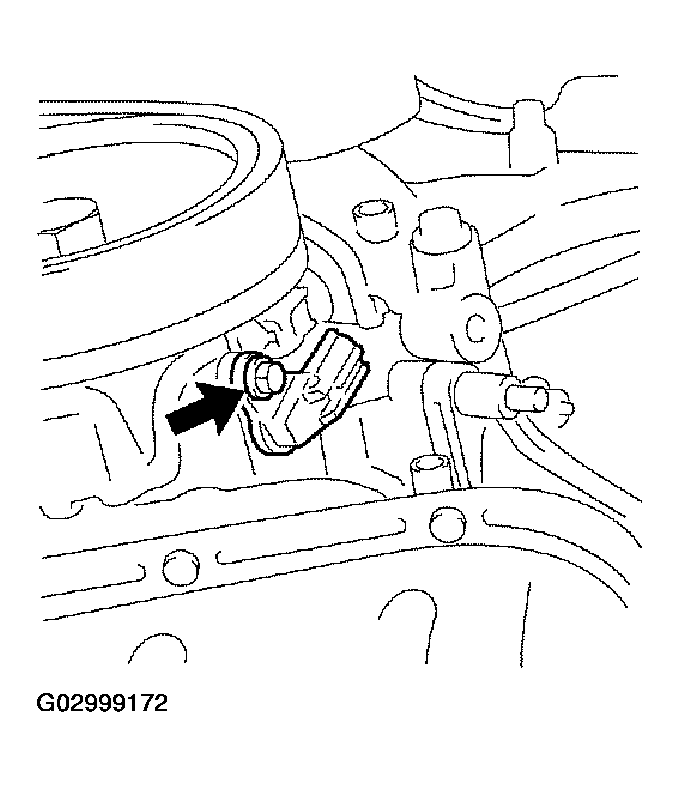

- Remove the bolt and sensor.
- INSTALL CRANKSHAFT POSITION SENSOR
- Install a new sensor with the bolt.
- Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)
- Connect the sensor connector.
- Install a new sensor with the bolt.
- INSTALL ENGINE UNDER COVER NO. 1
