Power Mirror Control System: Inspection

1. Select "L" or "R" on the left/right adjustment switch. Measure the switch resistance.
   Fig 1: Inspecting Outer Mirror Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

   "L" OR "R" ON LEFT/RIGHT ADJUSTMENT SWITCH



   Tester Connection	Switch Condition	Specified Condition
   O3-7 - O3-9	OFF	10 kΩ or higher
   O3-7 - O3-9	UP	90 to 100 Ω
   O3-7 - O3-9	DOWN	435 to 505 Ω
   O3-7 - O3-9	LEFT	740 to 860 Ω
   O3-7 - O3-9	RIGHT	220 to 280 Ω

   If the result is not as specified, replace the switch assy.

2. Measure the left/right adjustment switch resistance.

   Standard:

   LEFT/RIGHT ADJUSTMENT SWITCH



   Tester Connection	Switch Condition	Specified Condition
   O3-8 - O3-9	L	90 to 110 Ω
   O3-8 - O3-9	R	10 Ω or less

   If the result is not as specified, replace the switch assy.

3. Measure the retract switch resistance.

   Standard:

   RETRACT SWITCH



   Tester Connection	Switch Condition	Specified Condition
   O4-4 - O4-7	(B) position	Below 1 Ω
   O4-2 - O4-4	(A) position	Below 1 Ω

   If the result is not as specified, replace the switch assy.

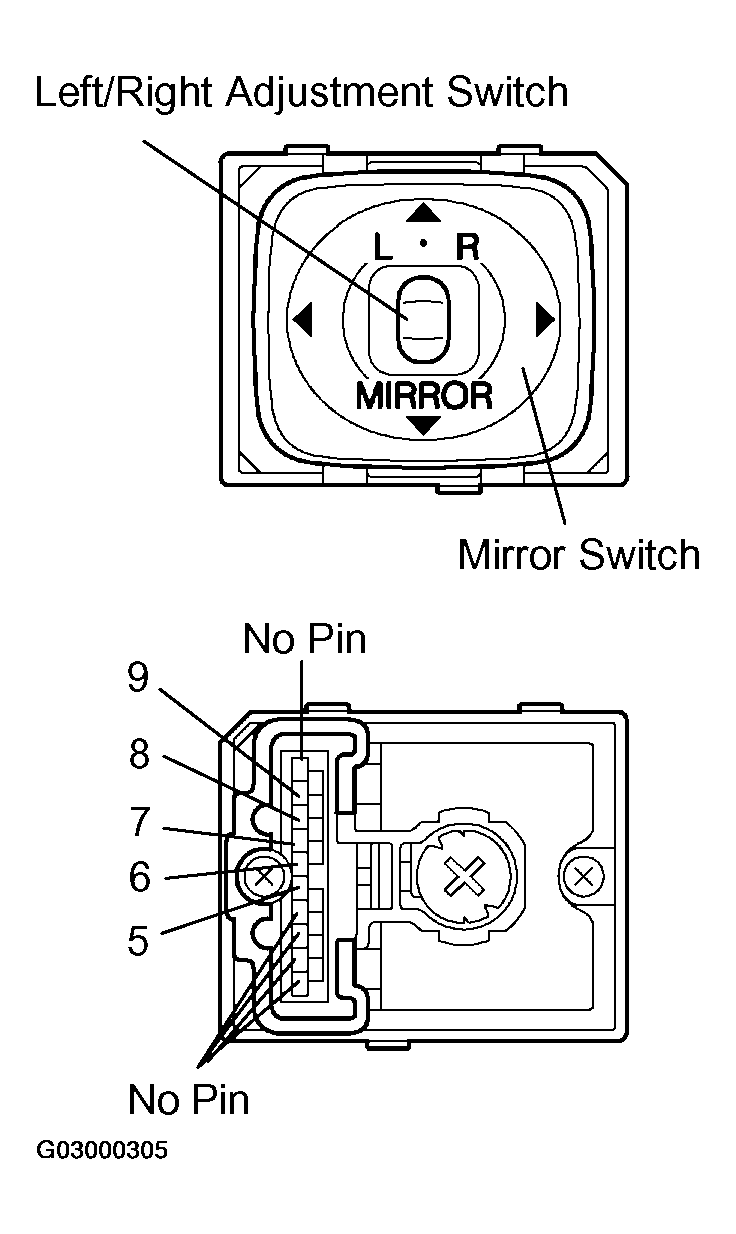

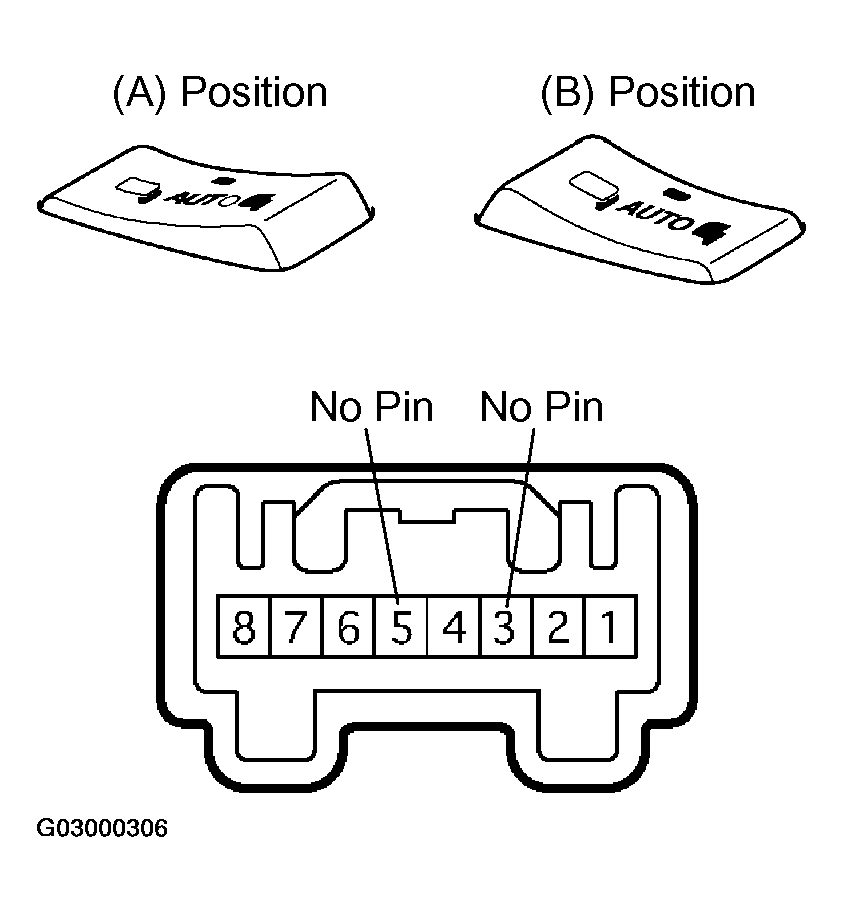

   Fig 2: Inspecting Left/Right Adjustment Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Measure the clearance sonar switch resistance.

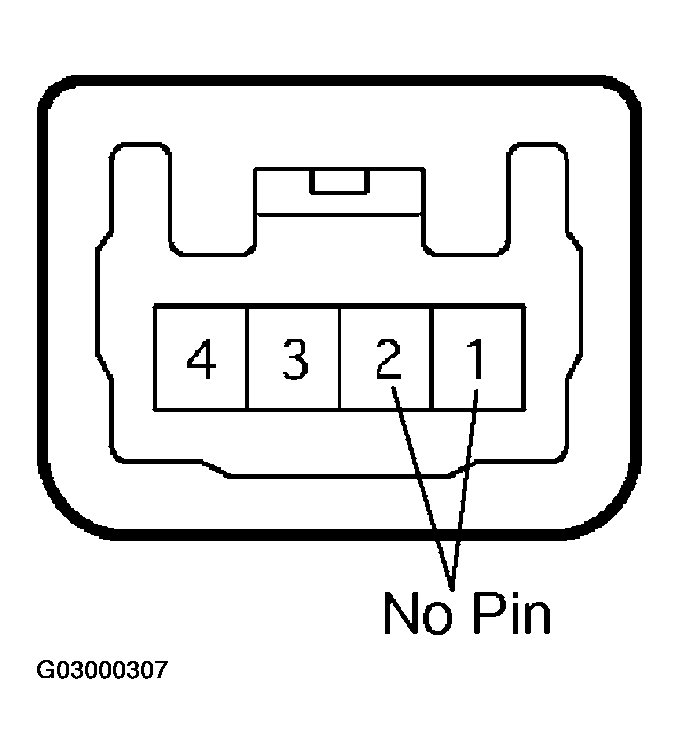

Fig 3: Measuring Clearance Sonar Switch Resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch assy.

1. Measure the switch resistance.

Standard:

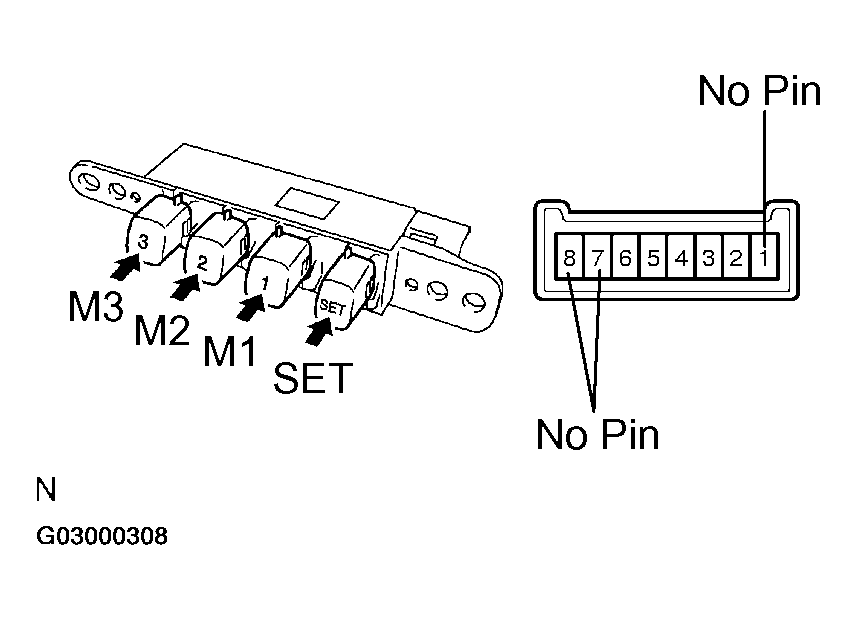

Fig 4: Inspecting Seat Memory Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the switch assy.

1. Disconnect the mirror connector.
2. Apply battery voltage and check operation of the mirror.

   OK:

   OUTER REAR VIEW MIRROR ASSY LH - OPERATION TABLE



   Measurement Condition	Specified Condition
   Battery positive (+) -> Terminal R39-1 (#MVR) Battery negative (-) -> Terminal R39-10 (#M+R)	Turns upward (A)
   Battery positive (+) -> Terminal R39-10 (#M+R) Battery negative (-) -> Terminal R39-1 (#MVR)	Turns downward (B)
   Battery positive (+) -> Terminal R39-10 (#M+R) Battery negative (-) -> Terminal R39-9 (#MHR)	Turns right (D)
   Battery positive (+) -> Terminal R39-9 (#MHR) Battery negative (-) -> Terminal R39-10 (#M+R)	Turns left (C)

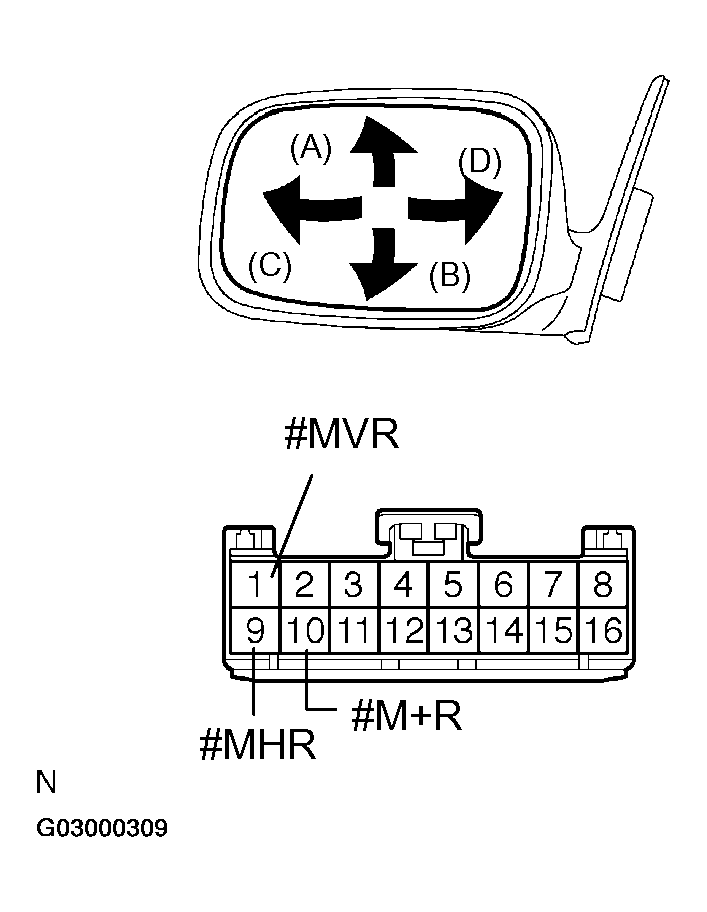

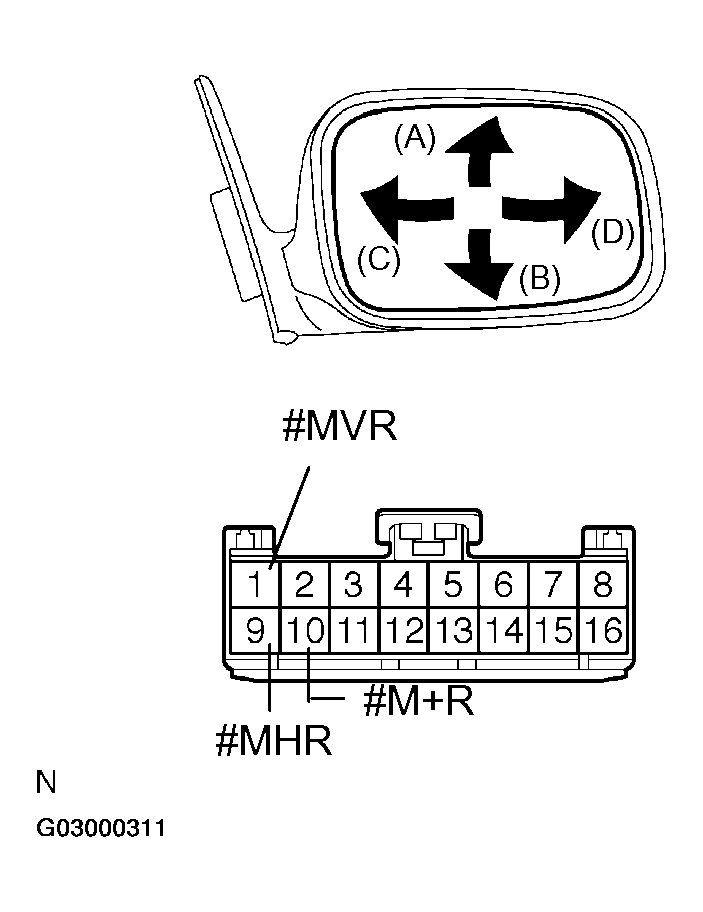

   Fig 5: Inspecting Outer Rear View Mirror Assy LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the result is not as specified, replace the mirror assy.

3. Apply battery voltage and check the mirror retract operation.
   NOTE:

   • Disconnect and reconnect the battery once between each mirror position check.
   • The mirror position cannot be changed manually when the battery is connected. If you wish to change the mirror position manually, disconnect the battery first before doing so.

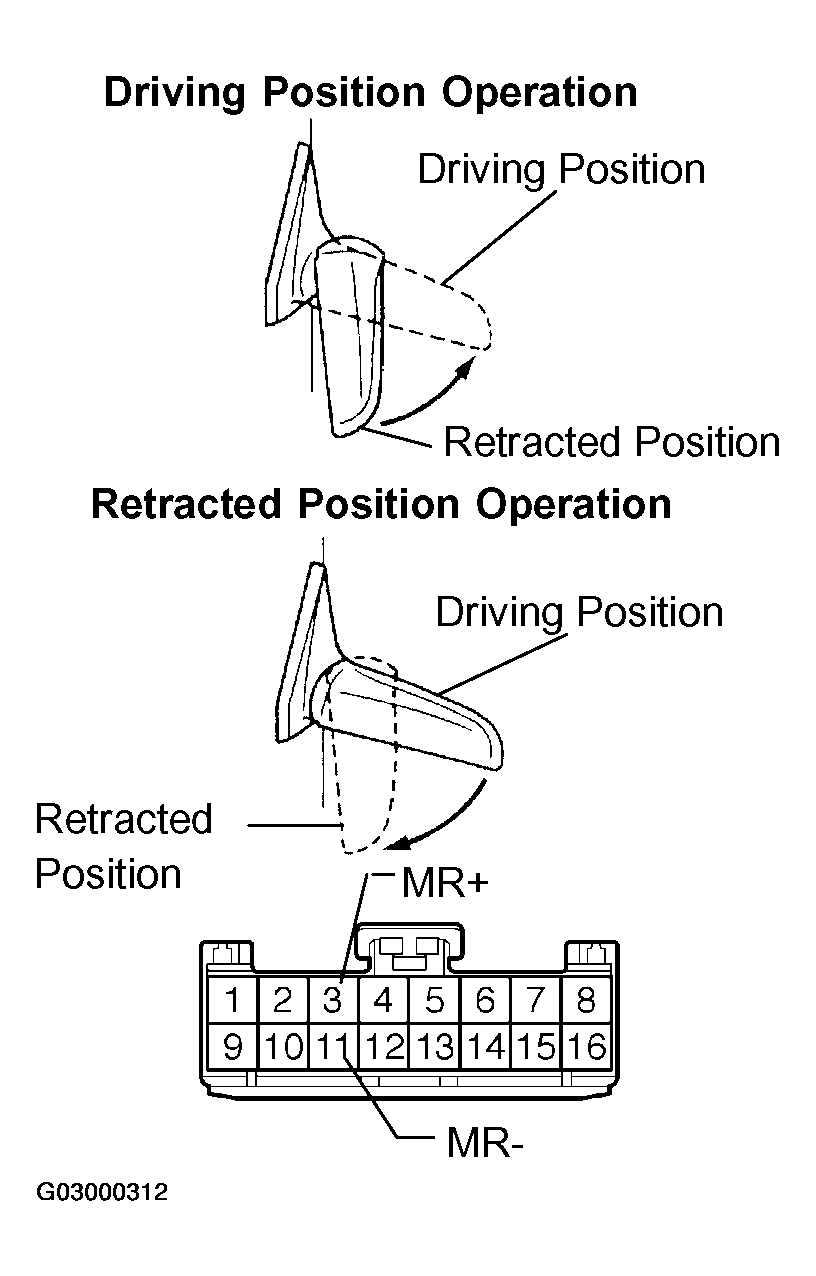

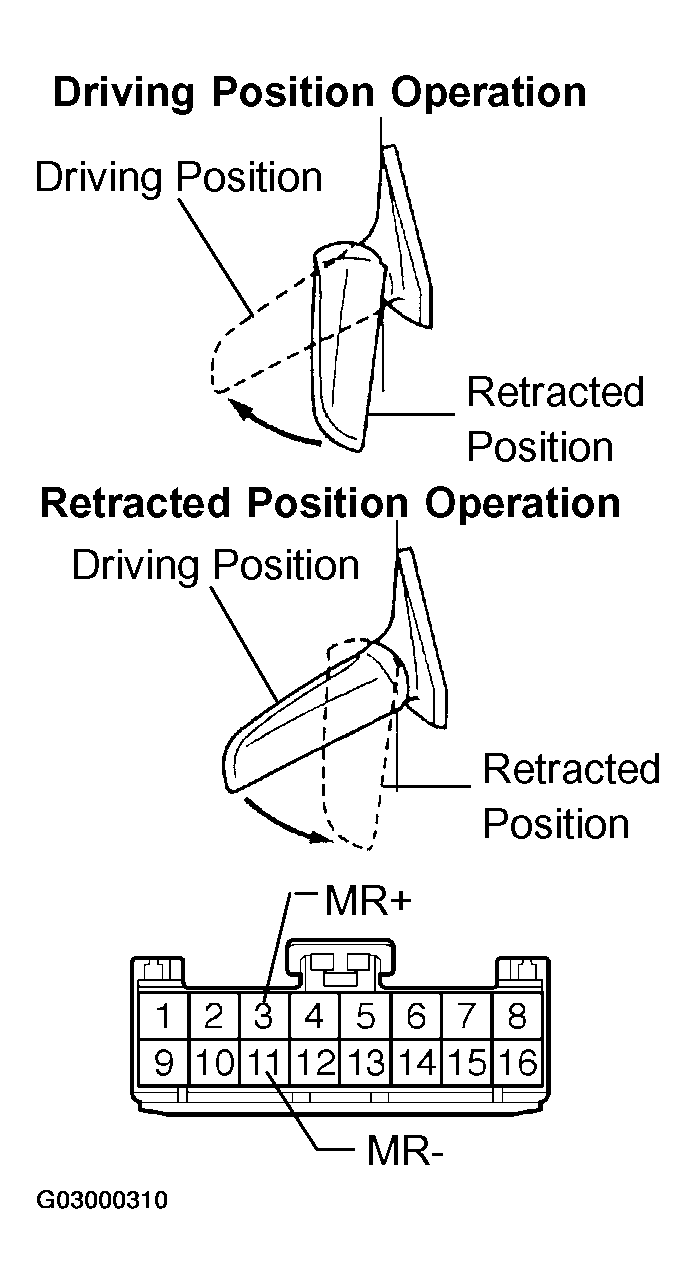

   Fig 6: Checking Mirror Retract Operation LH
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   MIRROR RETRACT OPERATION TABLE



   Measurement Condition	Mirror Condition	Specified Condition
   Battery positive (+) -> Terminal R39-11 (MR-) Battery negative (-) -> Terminal R39-3 (MR+)	Retracted position	Moves from retracted position to driving position
   Battery positive (+) -> Terminal R39-3 (MR+) Battery negative (-) -> Terminal R39-11 (MR-)	Driving position	Moves from driving position to retracted position

   If the result is not as specified, replace the mirror assy.

1. Disconnect the mirror connector.
2. Apply battery voltage and check operation of the mirror.
   Fig 7: Inspecting Outer Rear View Mirror Assy RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK:

   OUTER REAR VIEW MIRROR ASSY RH - OPERATION TABLE



   Measurement Condition	Specified Condition
   Battery positive (+) -> Terminal R40-1 (#MVR) Battery negative (-) -> Terminal R40-10 (#M+R)	Turns upward (A)
   Battery positive (+) -> Terminal R40-10 (#M+R) Battery negative (-) -> Terminal R40-1 (#MVR)	Turns downward (B)
   Battery positive (+) -> Terminal R40-10 (#M+R) Battery negative (-) -> Terminal R40-9 (#MHR)	Turns right (D)
   Battery positive (+) -> Terminal R40-9 (#MHR) Battery negative (-) -> Terminal R40-10 (#M+R)	Turns left (C)

   If the result is not as specified, replace the mirror assy.

3. Apply battery voltage and check the mirror retract operation.

OK:

If the result is not as specified, replace the mirror assy.

1. Check the voltage.
   1. Apply voltage to the terminals with a battery and a dry cell battery, as shown in MIRROR POSITION SENSOR - OPERATION TABLE  .
   2. Measure the voltage while the mirror moves between the fully turned downward position and fully turned upward position.

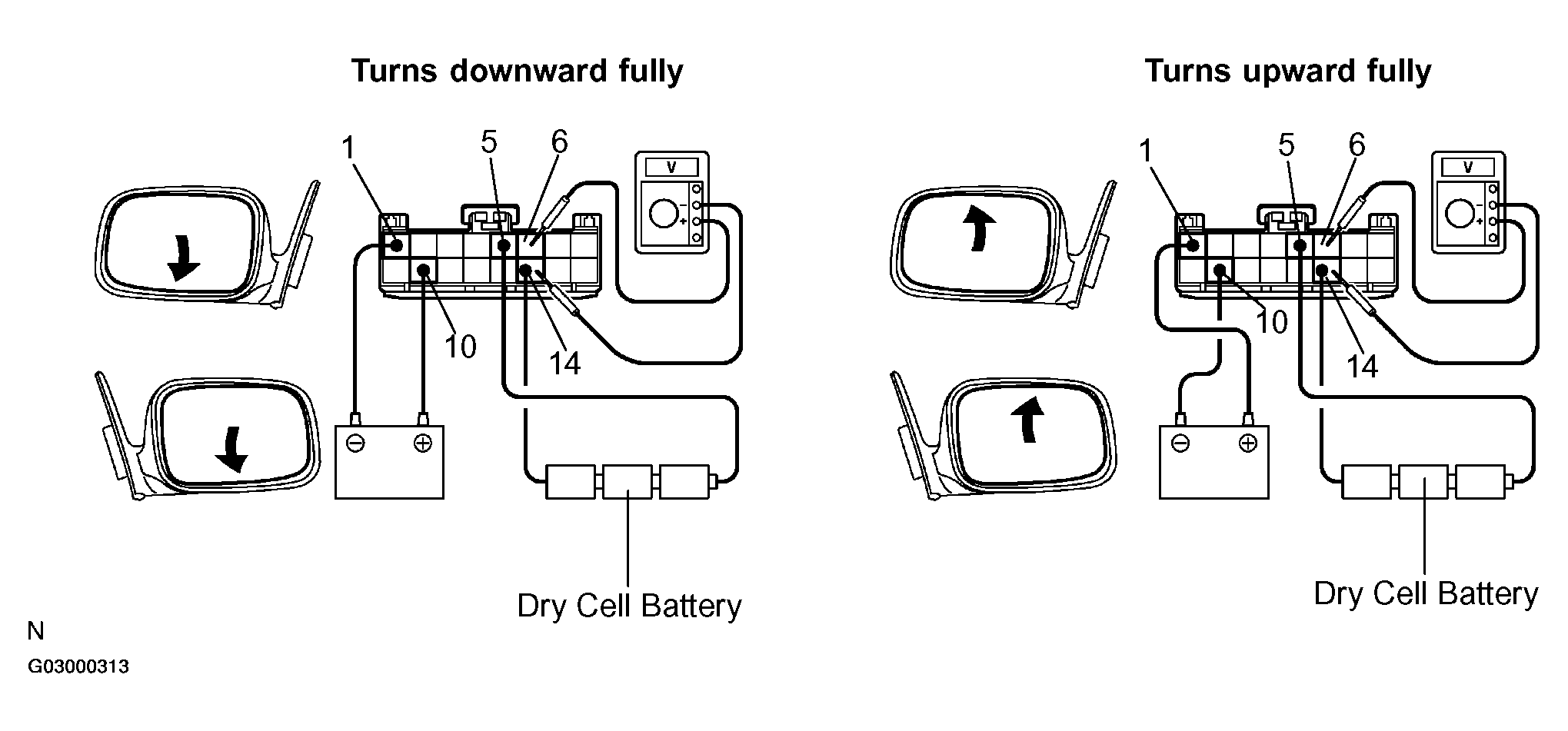

      Fig 9: Measuring Mirror Voltage (Turns Downward/Upward Fully)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      MIRROR POSITION SENSOR - OPERATION TABLE



      Measurement Condition (battery)	Measurement Condition (dry cell battery)	Voltmeter Condition	Mirror Condition	Specified Condition
      Battery positive (+) -> Terminal R39/R40-1 Battery negative (-) -> Terminal R39/R40-10	Battery positive (+) -> Terminal R39/R40-5 Battery negative (-) -> Terminal R39/R40-14	Positive lead (+) -> Terminal R39/R40-6 Negative lead (-) -> Terminal R39/R40-14	Turns downward fully	2.8 to 5.0 V
      Battery positive (+) -> Terminal R39/R40-10 Battery negative (-) -> Terminal R39/R40-1	Battery positive (+) -> Terminal R39/R40-5 Battery negative (-) -> Terminal R39/R40-14	Positive lead (+) -> Terminal R39/R40-6 Negative lead (-) -> Terminal R39/R40-14	Turns upward fully	0 to 1.0 V

      If the result is not as specified, replace the mirror assy.

   3. Measure the voltage while the mirror moves between the fully turned to the left position and fully turned to the right position.

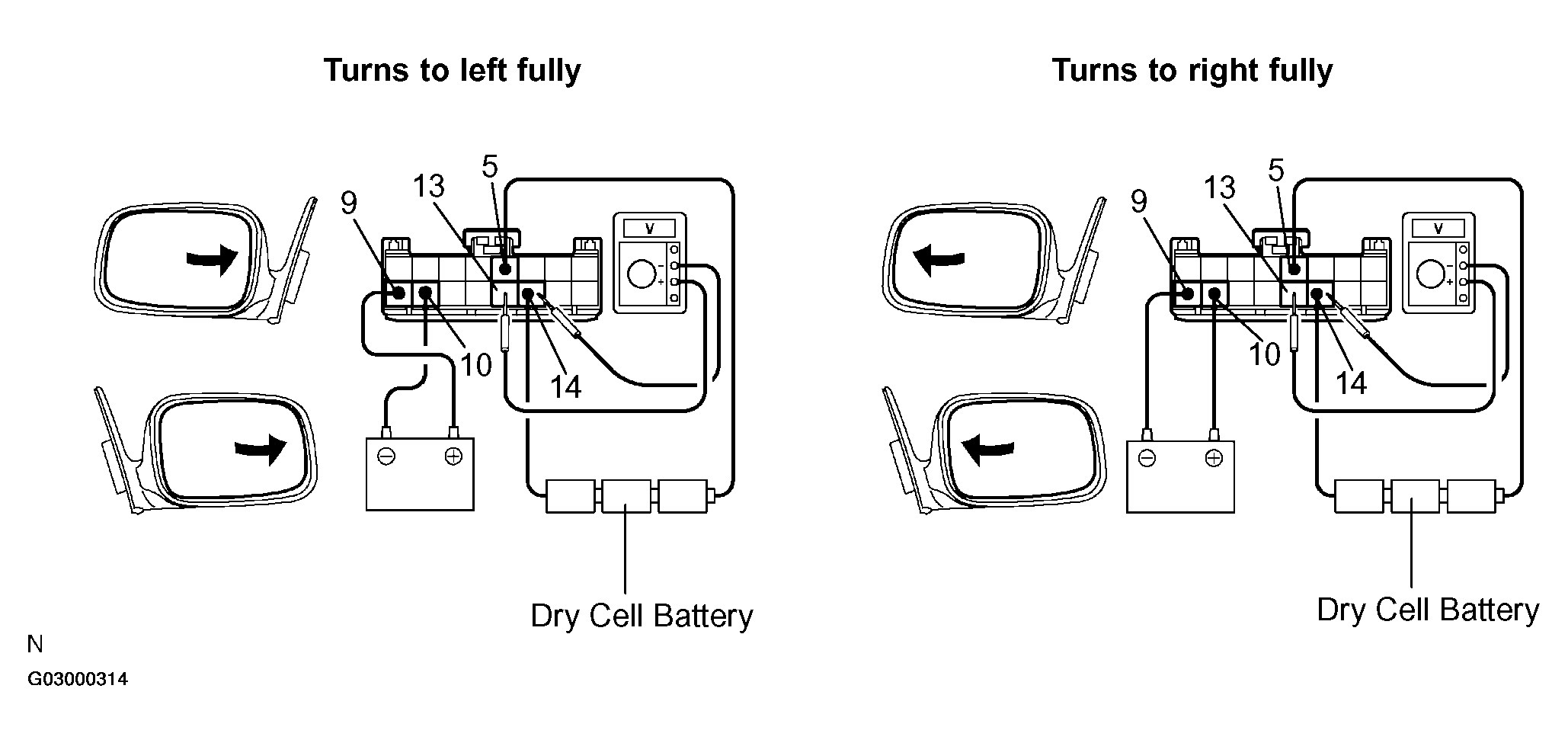

Fig 10: Checking Mirror Voltage (Turns To Left/Right Fully)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard (right side mirror):

If the result is not as specified, replace the mirror assy.

Standard (left side mirror):

If the result is not as specified, replace the mirror assy.
