2005 Lexus IS 300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Charging Systems: Charging: Generator: Replacement

REPLACE FRONT BEARING

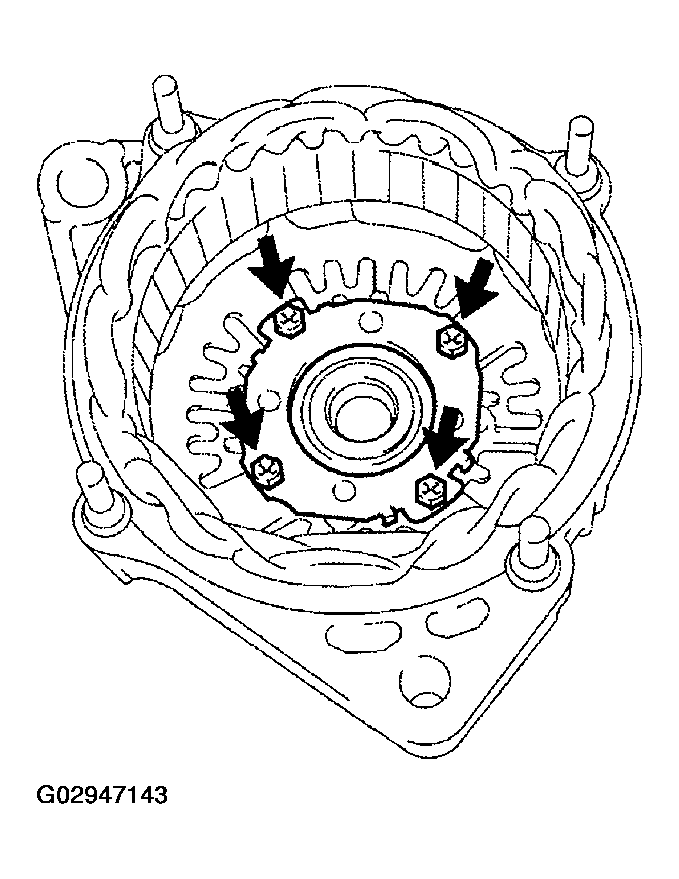

1. Remove the 4 screws and bearing retainer.

  Fig 1: Remove Screws & Bearing Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

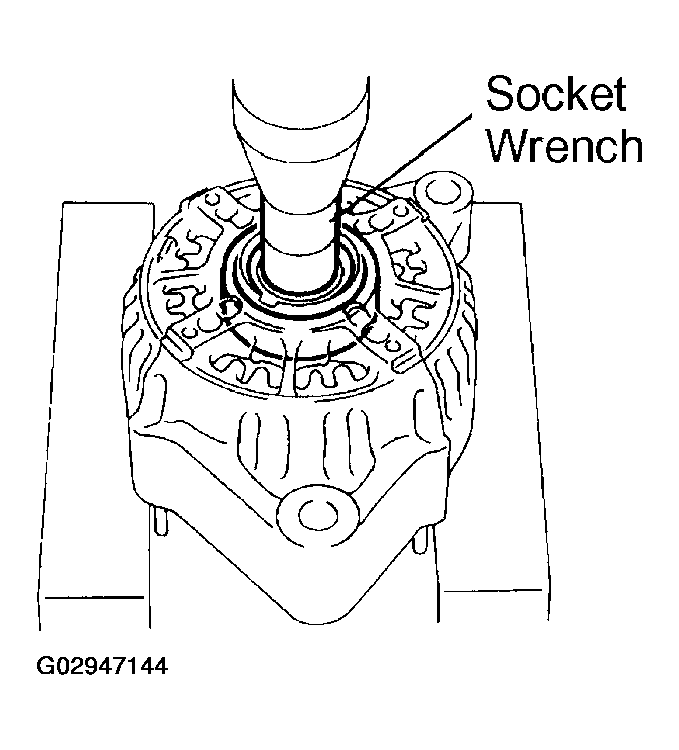

2. Using a socket wrench and press, press out the bearing.

  Fig 2: Pressing Out Bearing Using Socket Wrench & Press
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

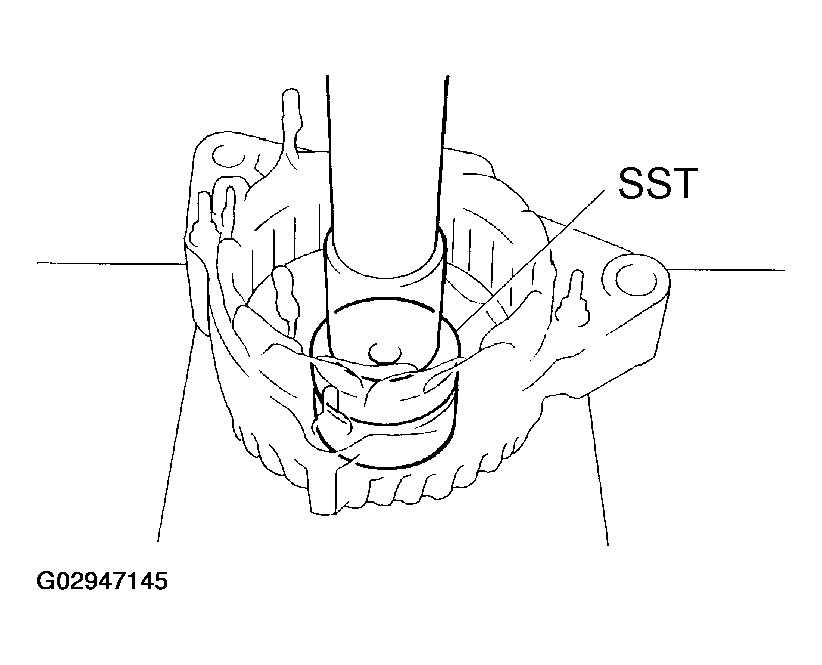

3. Using SST and a press, press in a new bearing.
  1. SST 09950-60010 (09951-00500)

    Fig 3: Pressing In New Bearing Using SST & Press
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the bearing retainer with the 4 screws.
  1. Torque: 3.0 N.m (31 kgf.cm 27 in.lbf)
REPLACE REAR BEARING
1. Using SST, remove the bearing cover (outside) and bearing.
  1. SST 09820-00021
  NOTE: Be careful not to damage the fan.
