2005 Lexus GX 470FACTORY OEM SERVICE PROCEDURE
Supplemental Restraint System: Preparation

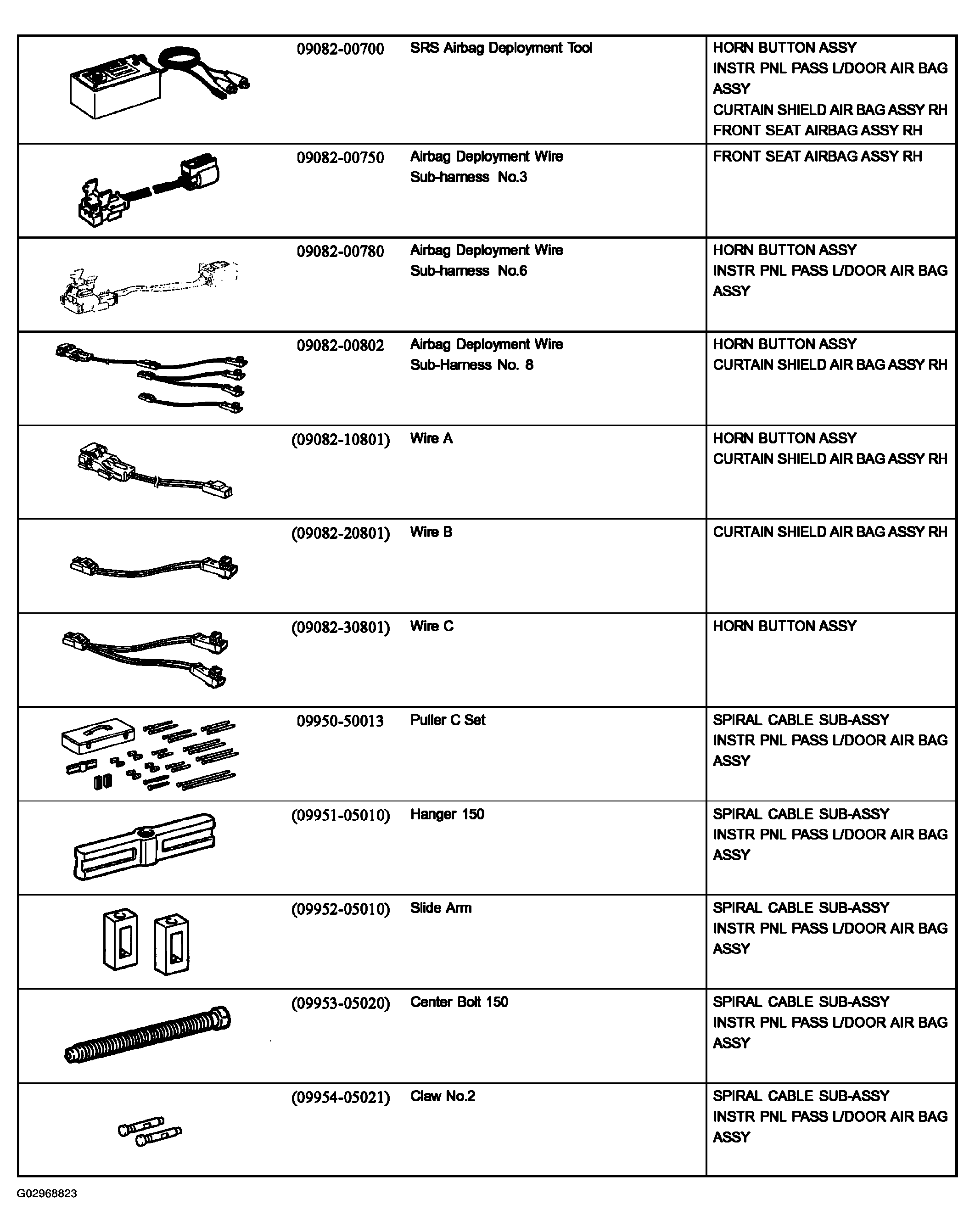

SST

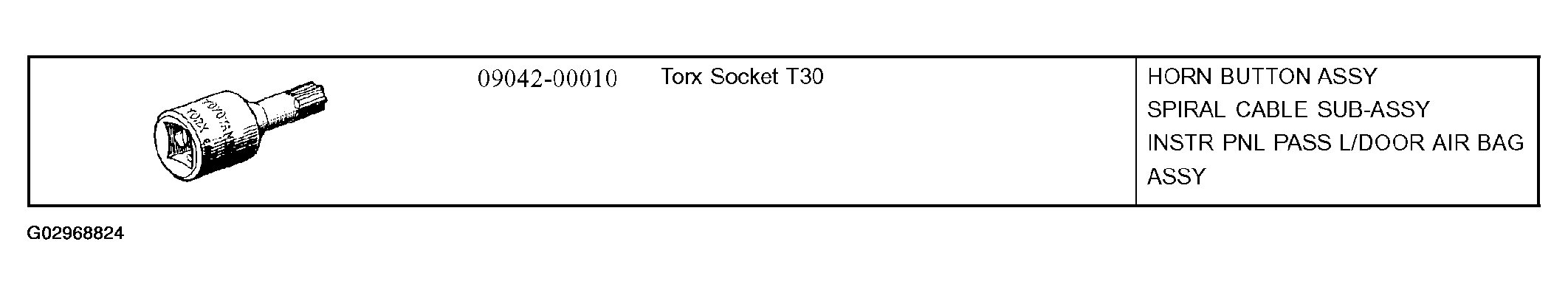

Recommended Tools
Torx is a registered trademark of Textron Inc.
Equipment
SUPPLEMENTAL RESTRAINT SYSTEM EQUIPMENT SPECIFICATION
| Torque wrench | |
| Bolt | Airbag disposal |
| Length: 35.0 mm (1.378 in.) | Airbag disposal |
| Pitch: 1.0 mm (0.039 in.) | Airbag disposal |
| Diameter: 6.0 mm (0.236 in.) | Airbag disposal |
| Tire | Airbag disposal |
| Width: 185 mm (7.28 in.) | Airbag disposal |
| Inner diameter: 360 mm (14.17 in.) | Airbag disposal |
| Tire with disc wheel | Airbag disposal |
| Width: 185 mm (7.28 in.) | Airbag disposal |
| Inner diameter: 360 mm (14.17 in.) | Airbag disposal |
| Plastic bag | Airbag disposal |
