2005 Lexus GX 470FACTORY OEM SERVICE PROCEDURE

Inspection Procedure

CHECK MANUAL UP/DOWN FUNCTION (DRIVER SIDE)
1. Check that the door glass can be operated manually.
1. NG: OTHER PROBLEM (See MANUAL UP/DOWN FUNCTION DOES NOT OPERATE AT DRIVER SIDE )
2. OK: Go to next step.
CHECK ILLUMINATION OF POWER WINDOW MASTER SWITCH
1. Turn the ignition switch ON.
2. Operate the driver switch of the master switch.
3. Check the blinking pattern of the illumination as shown in Fig 2.
  1. If pattern (1) is displayed, proceed to A.
  2. If pattern (2) or (3) is displayed, proceed to B.
  3. If the normal pattern is displayed, proceed to C.

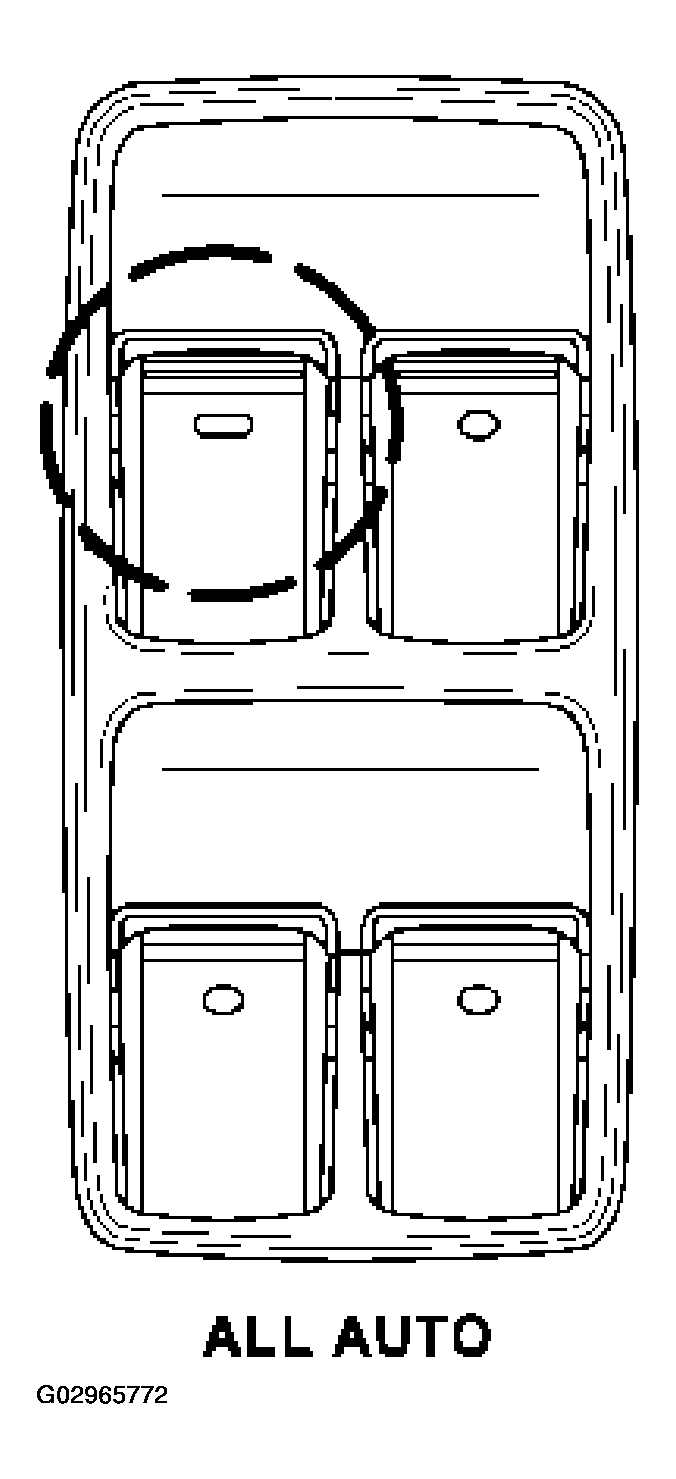

    Fig 1: Identifying Power Window Master Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
