2005 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

Crankshaft Position Sensor: Replacement

REMOVE ENGINE UNDER COVER
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt and crankshaft position sensor
REINSTALL NEW CRANKSHAFT POSITION SENSOR
1. Install a new crankshaft position sensor with the bolt.
  1. Torque: 6.5 N.m (65 kgf.cm, 58 in..lbf)

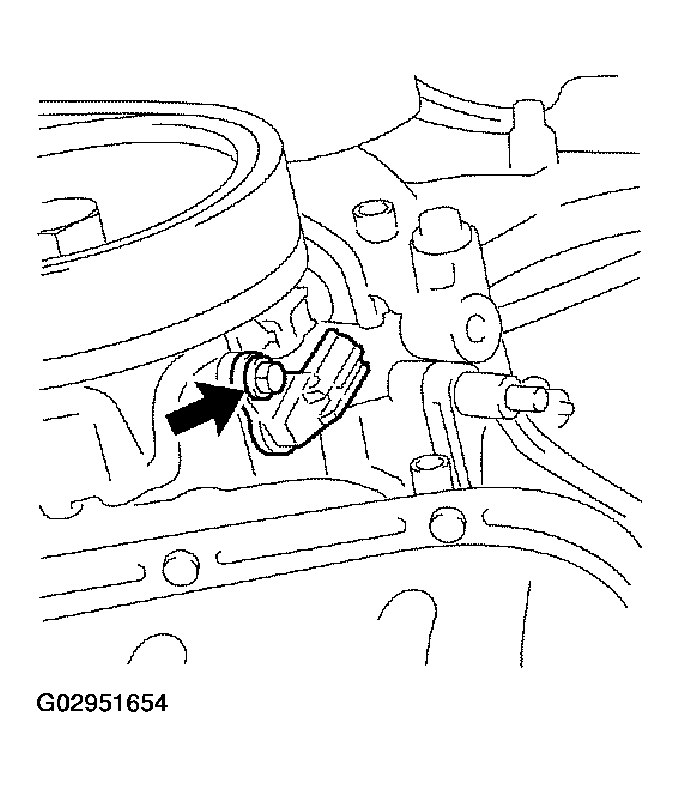

    Fig 1: Installing Crankshaft Position Sensor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the crankshaft position sensor connector.
REINSTALL ENGINE UNDER COVER
