2005 Lexus GS 430FACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Replacement
- REMOVE V-BANK COVER
- DRAIN ENGINE COOLANT
- ISCONNECT UPPER RADIATOR HOSE FROM FRONT WATER BYPASS JOINT
- REMOVE LH NO.3 TIMING BELT COVER (See TIMING BELT )
- REMOVE CAMSHAFT POSITION SENSOR

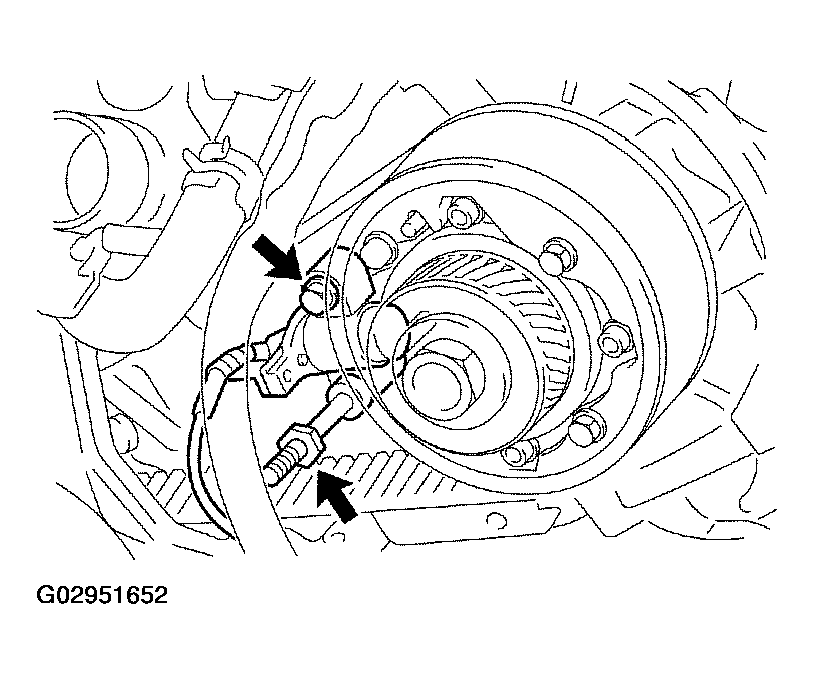

Remove the bolt, stud bolt and camshaft position sensor.
- REINSTALL NEW CAMSHAFT POSITION SENSOR
Install a new camshaft position sensor with the bolt and stud bolt.
Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
- REINSTALL LH NO.3 TIMING BELT COVER (See INSTALLATION )
- RECONNECT UPPER RADIATOR HOSE TO FRONT WATER BYPASS JOINT
- REFILL WITH ENGINE COOLANT (See REPLACEMENT )
- START ENGINE AND CHECK FOR ENGINE COOLANT LEAKS
- REINSTALL V-BANK COVER
