2005 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

Supplemental Restraint System: Preparation

SST

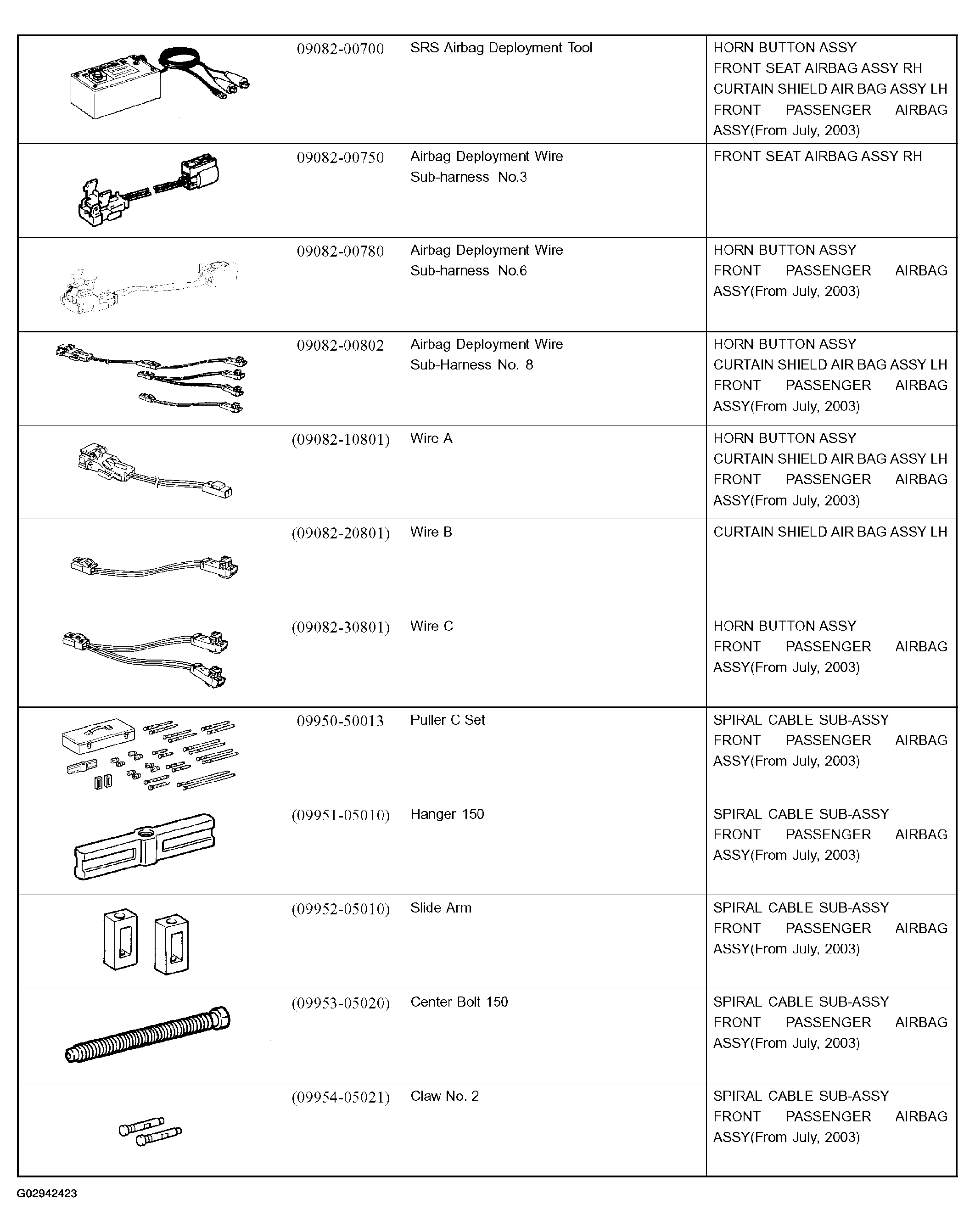

Fig 1: Supplemental Restraint System SST Chart
G02942423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

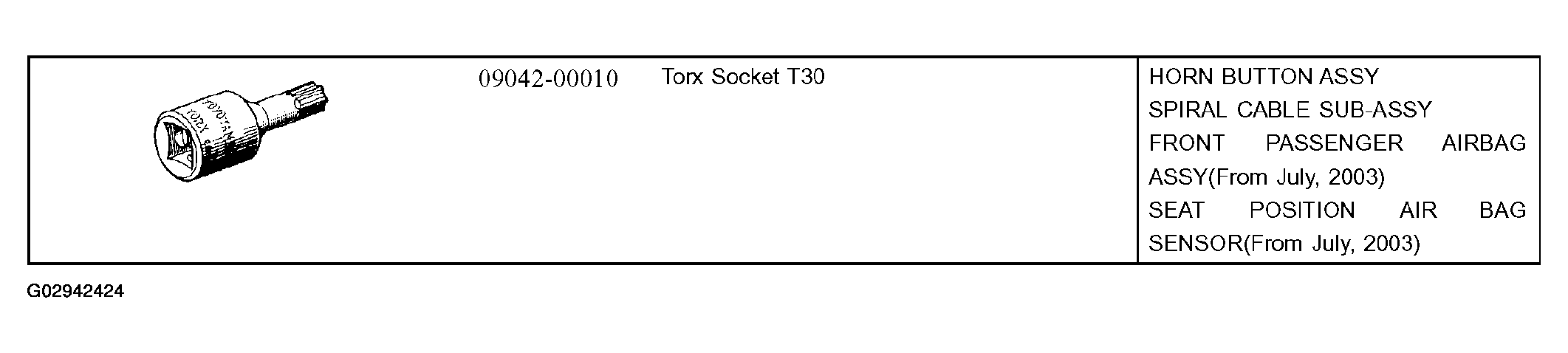

Fig 2: Supplemental Restraint System Recommended Tools Chart
G02942424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

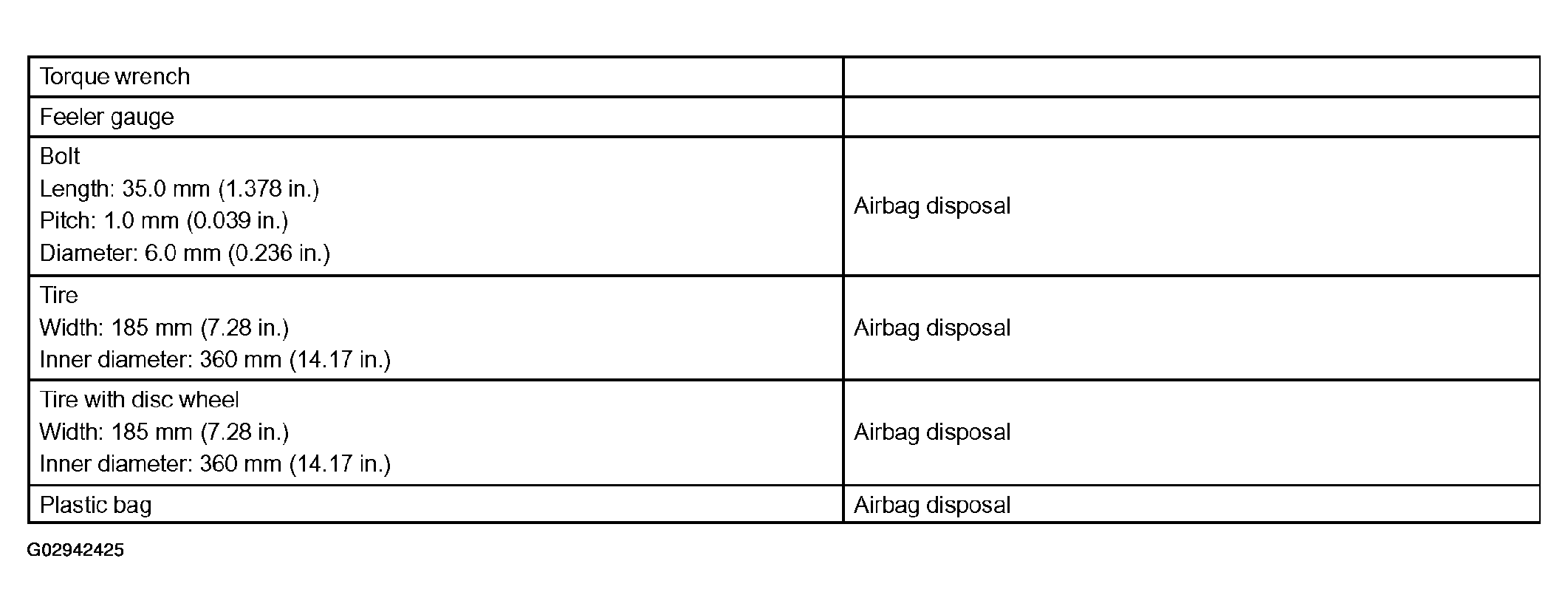

Fig 3: Supplemental Restraint System Equipment Table
G02942425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
