2005 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.
    1. A: Vehicle Identification Number Plate
    2. B: Certification Label

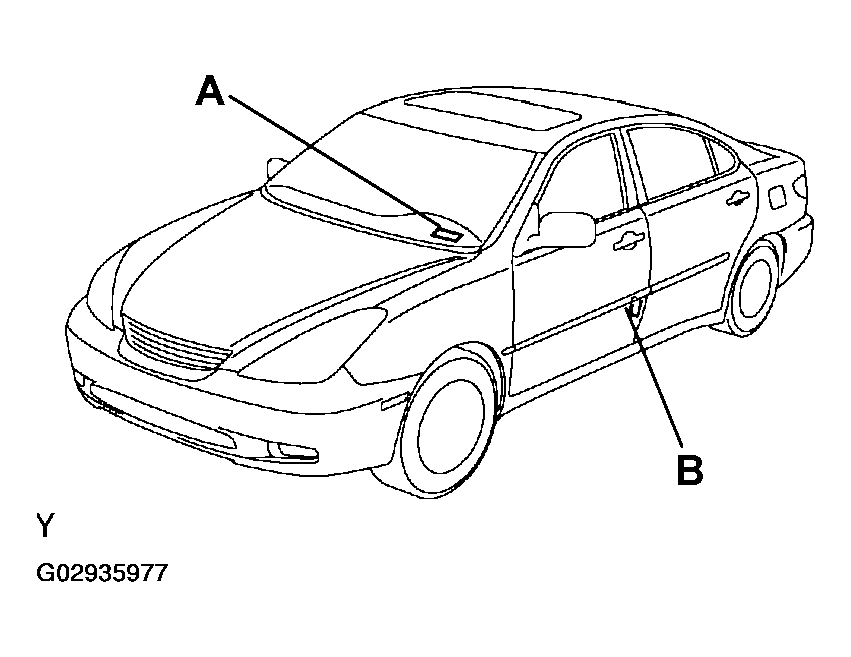

    Fig 1: Locating Vehicle Identification Number
    G02935977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in the illustration.
    1. A: Engine Serial Number
    2. B: Transaxle Serial Number

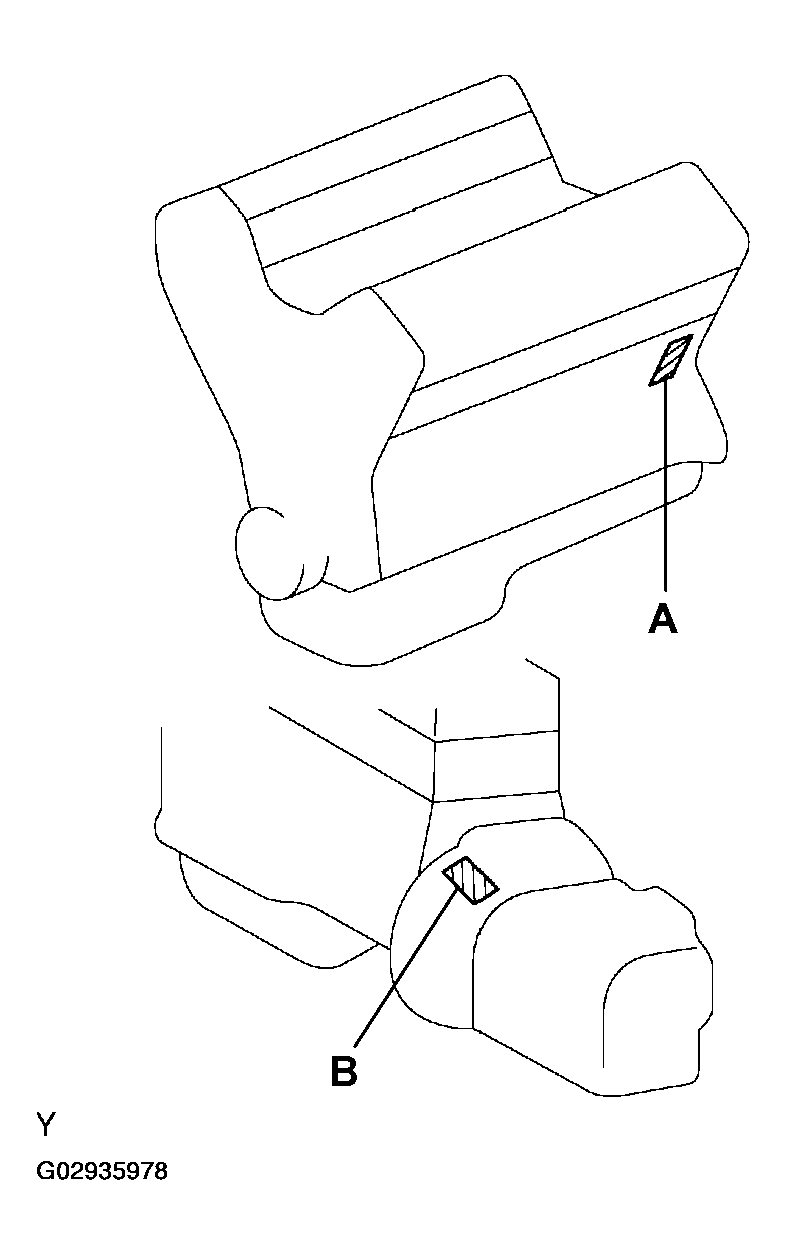

    Fig 2: Locating Engine Serial Number And Transaxle Serial Number
    G02935978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
