Section 92 (Navigation System): Replacement
- REMOVE FRONT SEAT ASSY RH
POWER SEAT TYPE: (See OVERHAUL )
MANUAL SEAT TYPE: (See OVERHAUL )
FOLD FLAT SEAT TYPE: (See OVERHAUL )

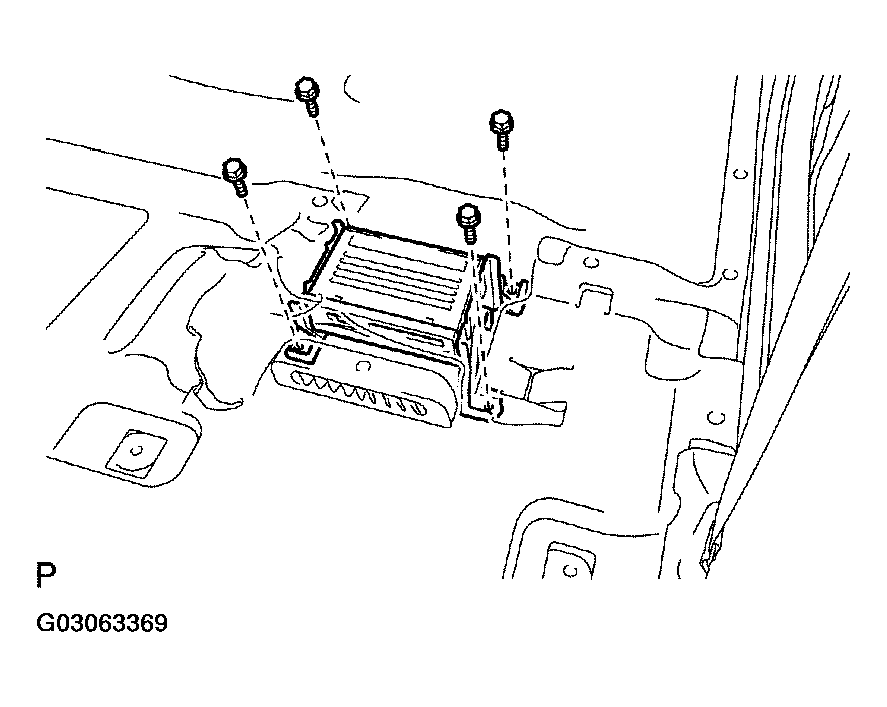

- REMOVE NAVIGATION COMPUTER W/BRACKET
- Disconnect the connector.
- Remove the 4 bolts and the navigation computer w/ bracket.

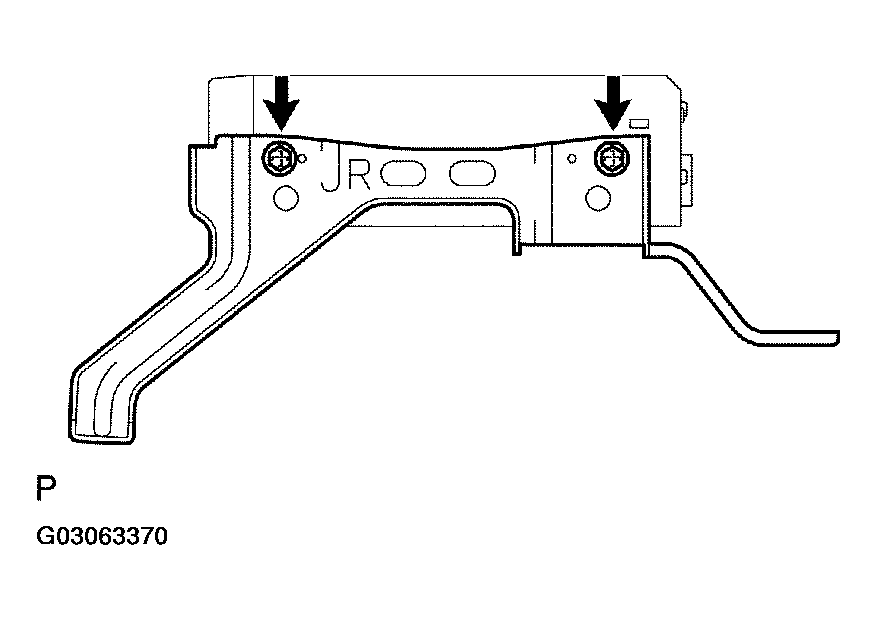

- REMOVE DISC PLAYER BRACKET
- Remove the 2 screws and the disc player bracket.

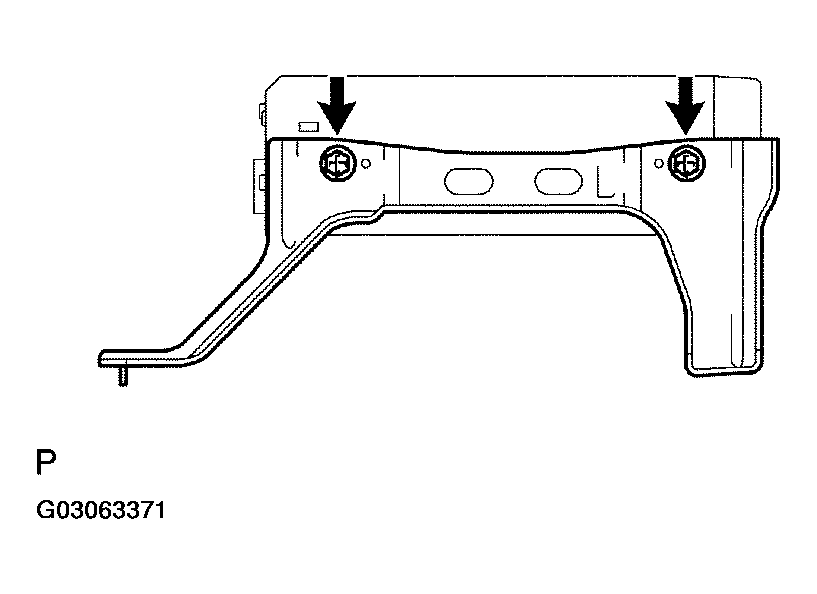

- REMOVE DISC PLAYER BRACKET NO. 2
- Remove the 2 screws and the disc player bracket No. 2.
- REMOVE NAVIGATION ECU ASSY
