VVT Sensor (3MZ-FE): Replacement
- DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
- REMOVE RADIATOR LOWER AIR DEFLECTOR (See REPLACEMENT )
- REMOVE AIR CLEANER INLET ASSY (See REPLACEMENT )
- REMOVE AIR CLEANER ASSY (See REPLACEMENT )

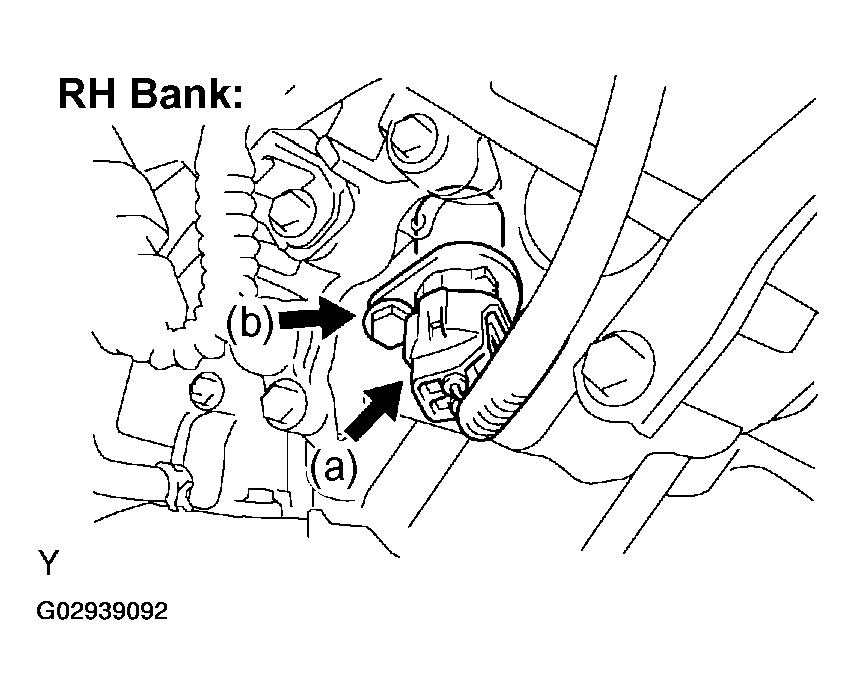

- REMOVE VVT SENSOR
- Remove the 2 VVT sensor connectors.
- Remove the 2 bolts, then remove the 2 VVT sensors.
HINT:
The VVT sensor is installed with the bolt.
