2005 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

Fuel System (3MZ-FE): Inspection

  1. INSPECT FUEL INJECTOR ASSYΒ
    1. Inspect the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

      Standard:Β

      TERMINALS CONNECTION-CONDITION

      Tester Connection Specified Condition
      1-2 13.4 to 14.2 Ξ© at 20Β° C (68Β° F)

      If the resistance is not as specified, replace the fuel injector.

    2. Check the operation.
      CAUTION:
      • This test involves high-pressure fuel and electricity. Keep the injector free of sparks during the test.
      • Take every precaution regarding safe handling of both the fuel and electricity.
      • Perform this test in a safe area, and avoid any sparks or flame.
      • Do not smoke.
      1. Pull out the fuel tube connector from a new fuel tube.

        HINT:

        Part No. 23801 - 20190

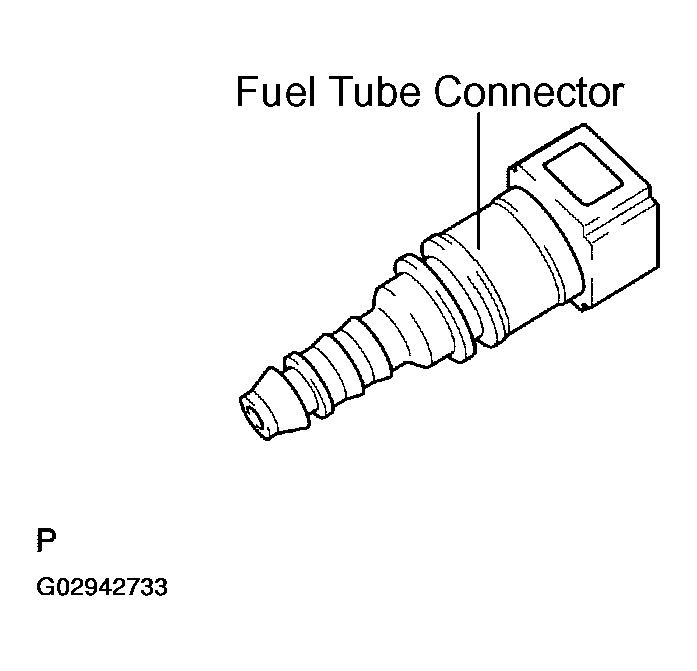

        Fig 1: Locating Fuel Tube Connector
        G02942733Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect SST and the fuel tube connector to the fuel pipe.
        1. SST 09268-41047 (95336-08070)
        CAUTION: After taking the precautions, connect the quick connector.
