Windshield Glass: Replacement

HINT:

Installation is according to the reverse order of the removal.

1. REMOVE FR WIPER ARM RH

   (See  REPLACEMENT  )

2. REMOVE FR WIPER ARM LH

   (See  REPLACEMENT  )

3. REMOVE COWL TOP VENTILATOR LOUVER RH

   (See  REPLACEMENT  )

4. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
6. REMOVE FRONT PILLAR GARNISH RH

   (See  REPLACEMENT  )

7. REMOVE FRONT PILLAR GARNISH LH

   (See  REPLACEMENT  )

8. REMOVE ASSIST GRIP SUB-ASSY

   (See  REPLACEMENT  )

9. REMOVE RH VISOR ASSY

   (See  REPLACEMENT  )

10. REMOVE LH VISOR ASSY

    (See  REPLACEMENT  )

11. REMOVE ROOF CONSOLE BOX ASSY

    (See  REPLACEMENT  )

12. REMOVE VISOR HOLDER RH

    (See  REPLACEMENT  )

13. REMOVE VISOR HOLDER LH

    (See  REPLACEMENT  )

14. REMOVE VANITY LAMP ASSY

    (See  REPLACEMENT  )

15. REMOVE INNER REAR VIEW MIRROR ASSY

    (See  INNER REAR VIEW MIRROR ASSY   )

16. REMOVE RAIN SENSOR (W/ RAIN SENSOR)

    (See  RAIN SENSOR  )

17. REMOVE ROOF HEADLINING ASSY

    (See  REPLACEMENT  )

18. REMOVE WINDSHIELD MOULDING OUTER UPPER
    1. Using a knife, cut off the moulding as shown in the illustration.
       NOTE: Do not damage the body with the knife.
    2. Remove the remaining moulding.

    HINT:

    When removing, make a cut partly, pull and remove it by hand.

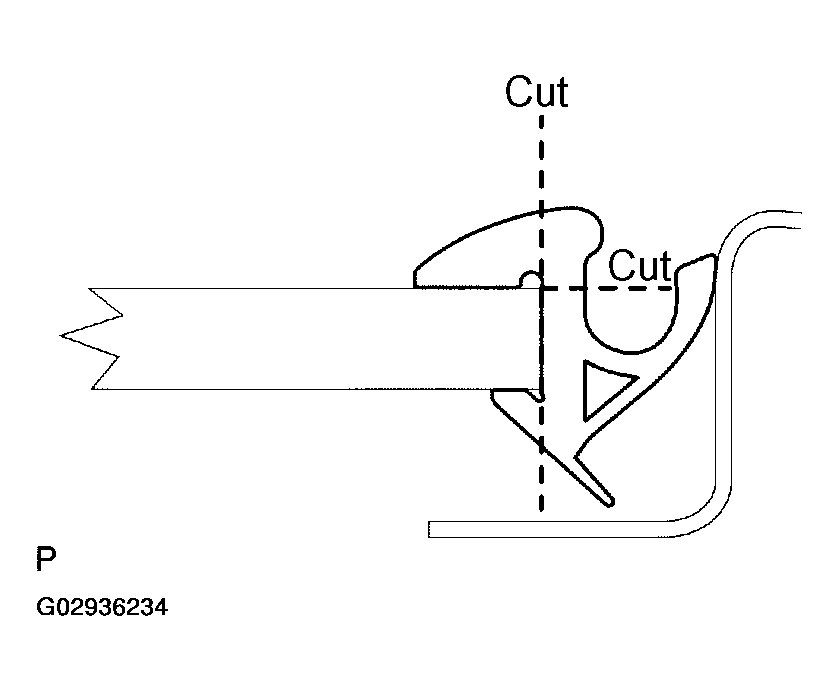

    Fig 1: Cutting Off Moulding Using Knife

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE WINDSHIELD GLASS

    HINT:

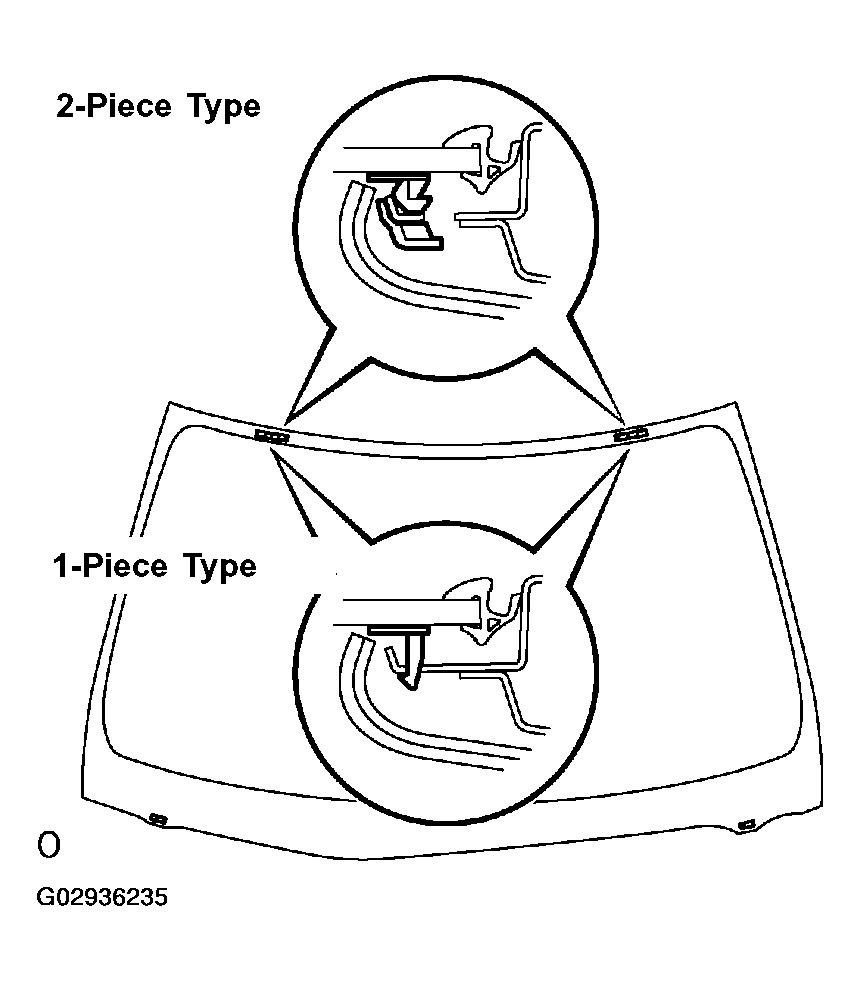

    There is a case where a 1 -piece type and a 2-piece type of stoppers are installed in a vehicle type.

    1. Push a piano wire through between the body and glass from the interior.
    2. Apply protective tape to the outer surface to keep the surface from being scratched.
       Fig 2: Locating Windshield Glass

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tie both wire ends to wooden blocks or similar objects.
       NOTE:

       • When working around the curtain shield airbag, be careful not to damage the airbag.
       • When separating the glass, take care not to damage the paint and interior/exterior ornaments.
       • To prevent the piano wire to be cut, do not cross it.
    4. Cut the adhesive by pulling the piano wire around it.
    5. Using a suction rubber, remove the glass.
    NOTE: Leave as much adhesive on the body as possible when cutting off the glass.
