Speed Sensor: Replacement

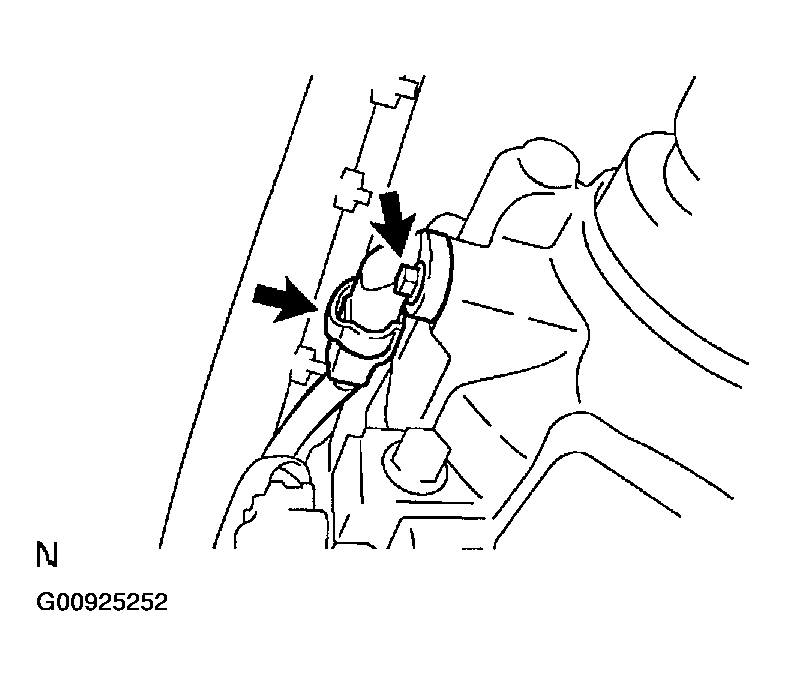

- REMOVE SPEED SENSOR (NC0 SENSOR)
- Disconnect the connector.
- Remove the bolt and speed sensor.

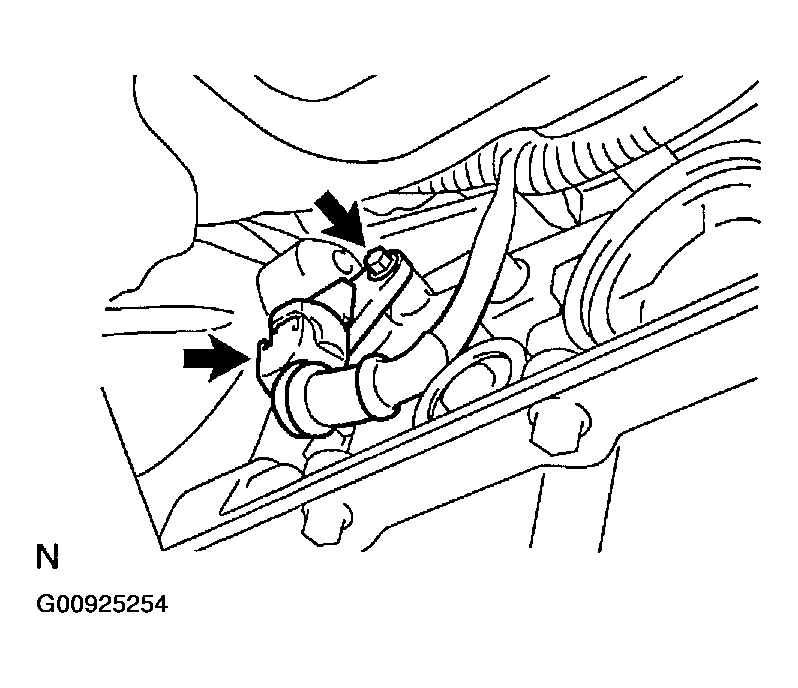

- REMOVE SPEED SENSOR (SP2 SENSOR)
- Disconnect the connector.
- Remove the bolt and speed sensor.

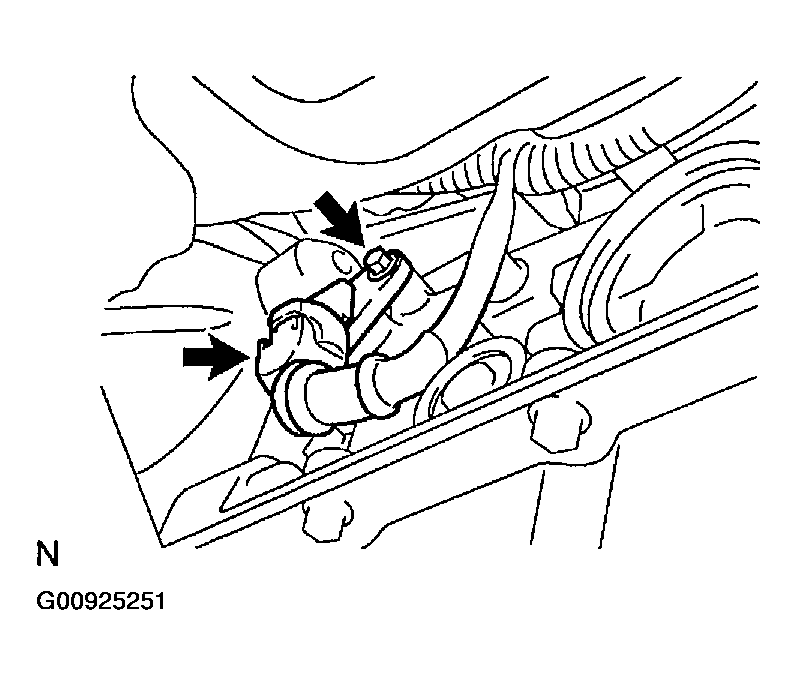

- INSTALL SPEED SENSOR (SP2 SENSOR)
- Coat O-ring with ATF.
- Install the speed sensor with the bolt.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- Connect the connector.
- INSTALL SPEED SENSOR (NC0 SENSOR)
- Coat O-ring with ATF.
- Install the speed sensor with the bolt.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- Connect the connector.
