2004 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Repair Instruction: Precaution

  1. BASIC REPAIR HINT
    1. HINTS ON OPERATIONS

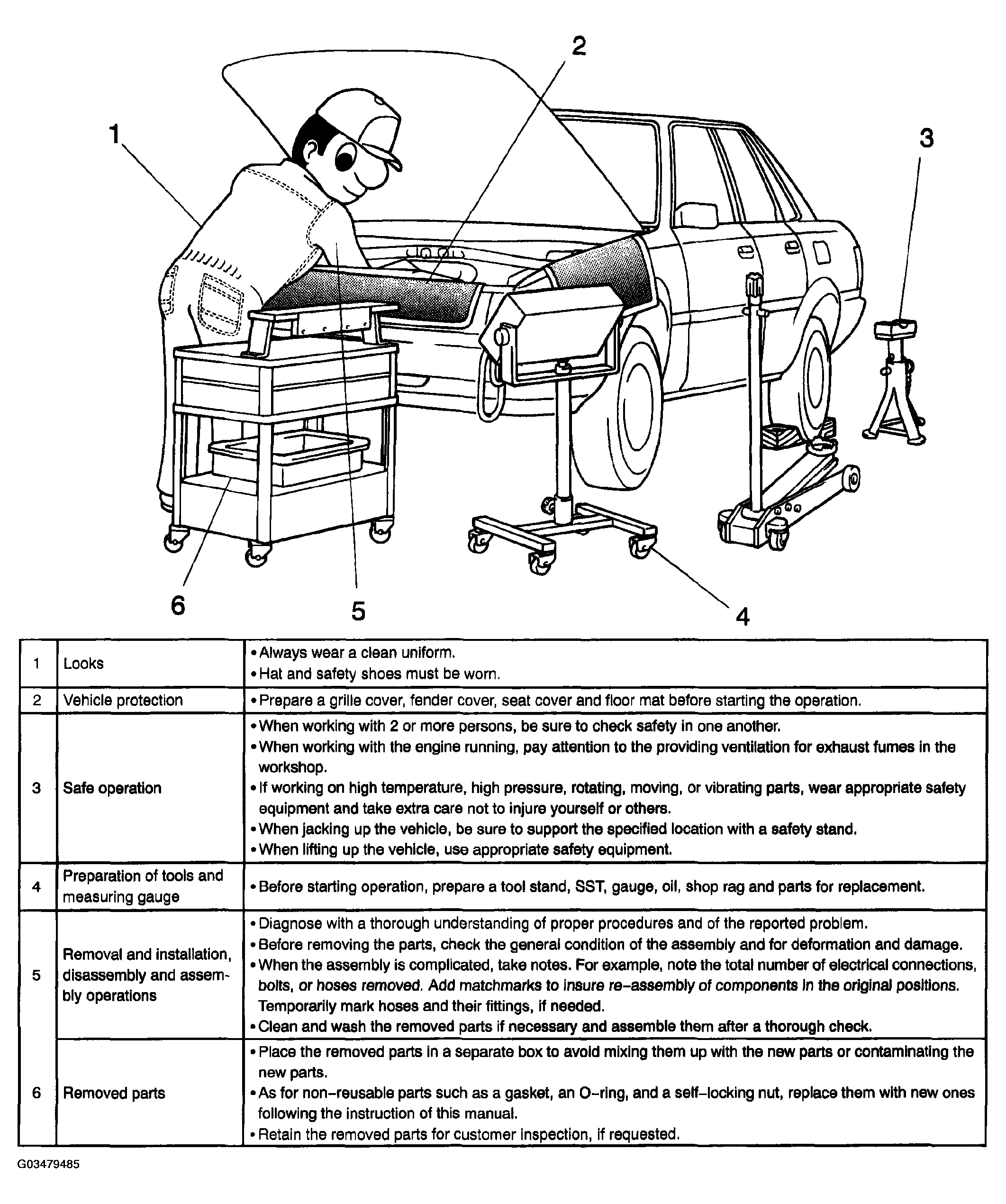

      Fig 1: Precaution For Basic Repair Operations
      G03479485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. JACKING UP AND SUPPORTING VEHICLE
      1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations (See VEHICLE LIFT AND SUPPORT LOCATIONS ).
    3. PRECOATED PARTS
      1. Precoated parts are bolts and nuts. That are coated with a seal lock adhesive at the factory.
      2. If a precoated part is retightened, loosened or moved in anyway, it must be recoated with the specified adhesive.
      3. When reusing precoated parts, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to the bolts and nuts.
        NOTE: Perform the torque with the lower limit value of the torque tolerance.
