2004 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

How To Proceed With Troubleshooting

  1. VEHICLE BROUGHT TO WORKSHOP
  2. CUSTOMER PROBLEM ANALYSIS (See  CUSTOMER PROBLEM ANALYSIS CHECK   )
  3. CONNECT OBD HAND-HELD TESTER TO DLC3

    HINT:

    If the display indicates a communication fault in the tool, inspect the DLC3.

  4. CHECK DTC AND FREEZE FRAME DATA (See  DTC CHECK/CLEAR   )

    HINT:

    Record or print DTC and freeze frame data, if needed.

  5. CLEAR DTC AND FREEZE FRAME DATA (See  DTC CHECK/CLEAR   )
  6. VISUAL INSPECTION
  7. SETTING CHECK (TEST) MODE DIAGNOSIS (See  CHECK MODE PROCEDURE   )
  8. PROBLEM SYMPTOM CONFIRMATION

    HINT:

    If the engine does not start, perform steps 10 and 12 first.

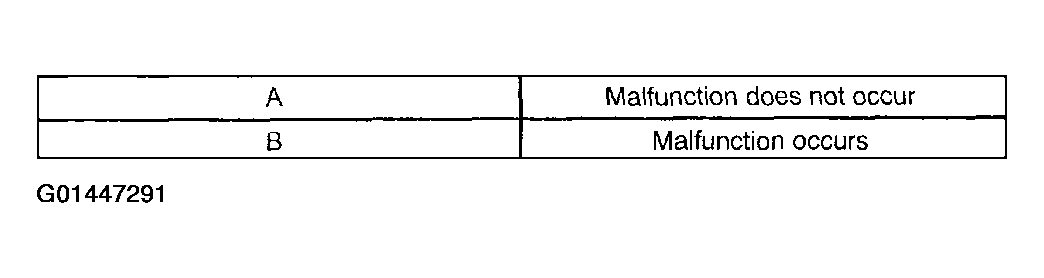

    Fig 1: Problem Symptom Confirmation Chart
    G01447291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: Go to step   10
    2. A: Go to next step.
  9. SYMPTOM SIMULATION
  10. DTC CHECK (See  DTC CHECK/CLEAR   )

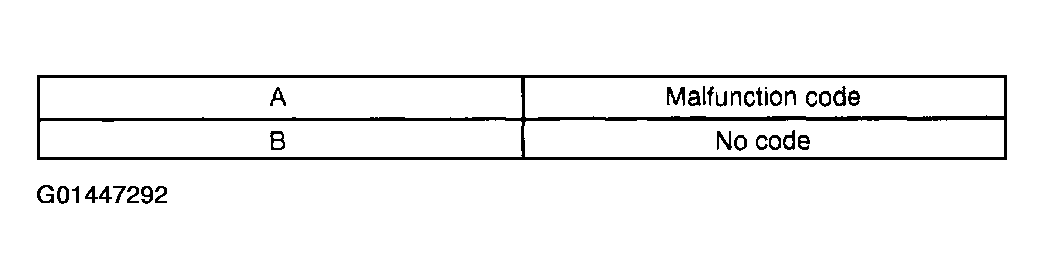

    Fig 2: DTC Malfunction Code
    G01447292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: Go to step   12
    2. A: Go to next step.
  11. DTC CHART (See  DIAGNOSTIC TROUBLE CODE CHART   )

    Go to step   14

  12. BASIC INSPECTION (See  BASIC INSPECTION   )

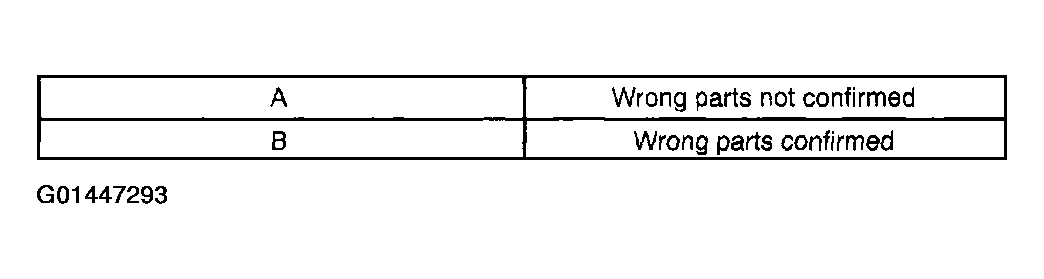

    Fig 3: Basic Inspection Chart
    G01447293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: Go to step   17
    2. A: Go to next step.
  13. PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )

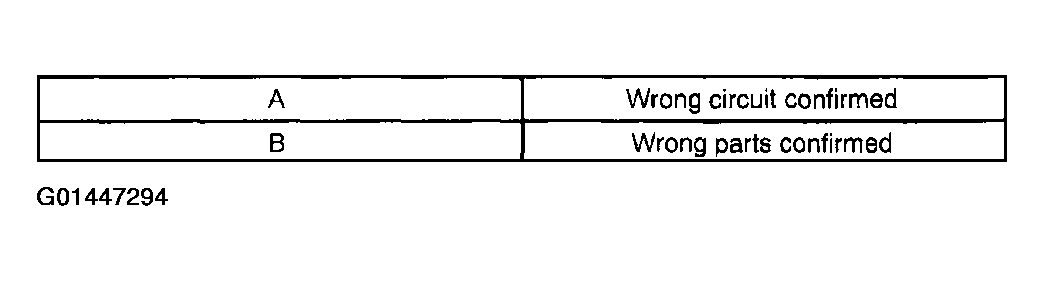

    Fig 4: Problem Symptoms Table
    G01447294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: Go to step   17
    2. A: Go to next step.
  14. CHECK ECM POWER SOURCE CIRCUIT (See  ECM POWER SOURCE CIRCUIT   )
  15. CIRCUIT INSPECTION

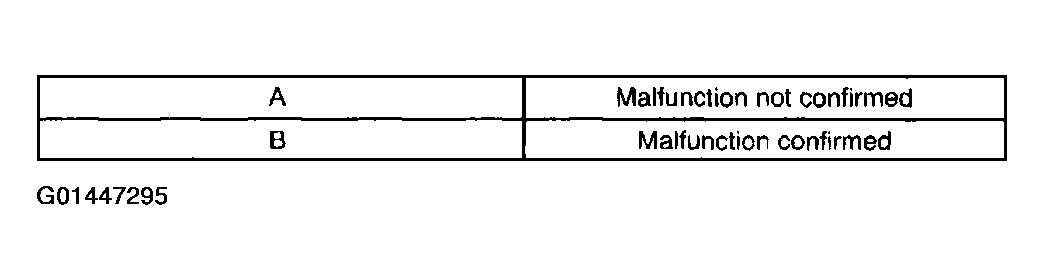

    Fig 5: Circuit Inspection Chart
    G01447295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: Go to step   18
    2. A: Go to next step.
  16. CHECK FOR INTERMITTENT PROBLEMS (See  CHECK FOR INTERMITTENT PROBLEMS   )

    Go to step   18

  17. PARTS INSPECTION
  18. IDENTIFICATION OF PROBLEM
  19. ADJUSTMENT, REPAIR
  20. CONFIRMATION TEST

    21. END
