2004 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Microphone Amplifier ASSY: Replacement

HINT:

  • The installation is in the revers order of the removal.
  • A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).
  1. REMOVE DOOR SCUFF PLATE ASSY RH
    1. Disengage the 6 claws and 5 clips.
    2. Remove the door scuff plate assembly RH then disconnect the connector.

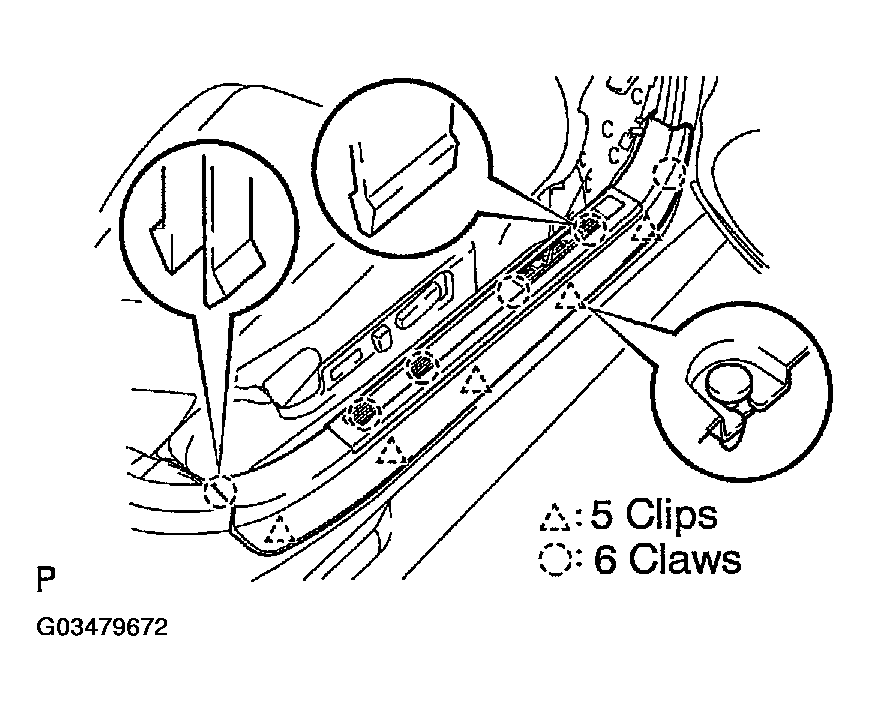

    Fig 1: Removing Door Scuff Plate Assy RH
    G03479672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DOOR OPENING TRIM COVER RH
    1. Disengage the 3 claws then remove the front door opening trim cover RH.

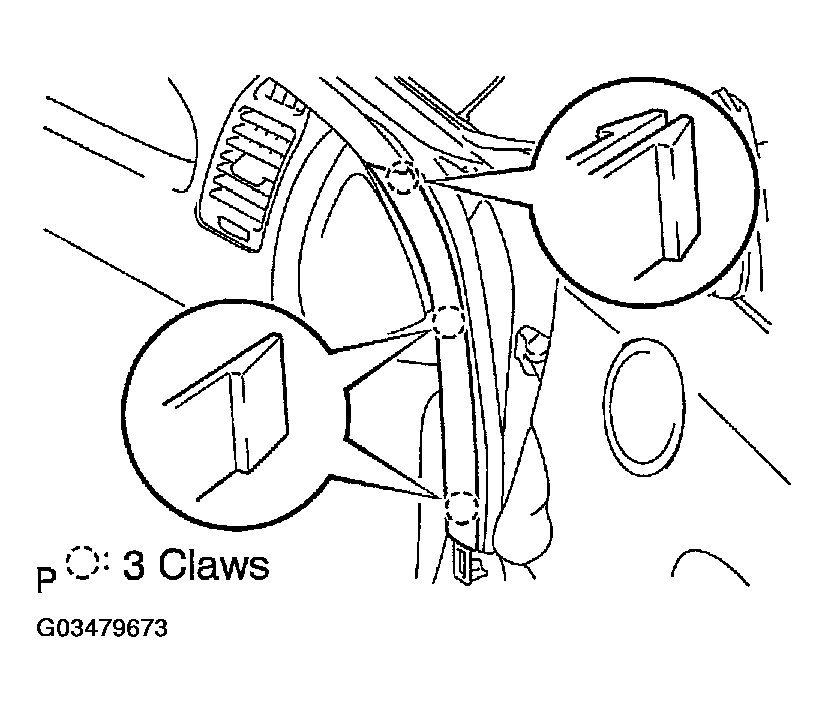

    Fig 2: Removing Front Door Opening Trim Cover RH
    G03479673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.2
    1. Disengage the 3 clips, 2 claws and remove the instrument panel under cover No. 2, and then disconnect the connectors.

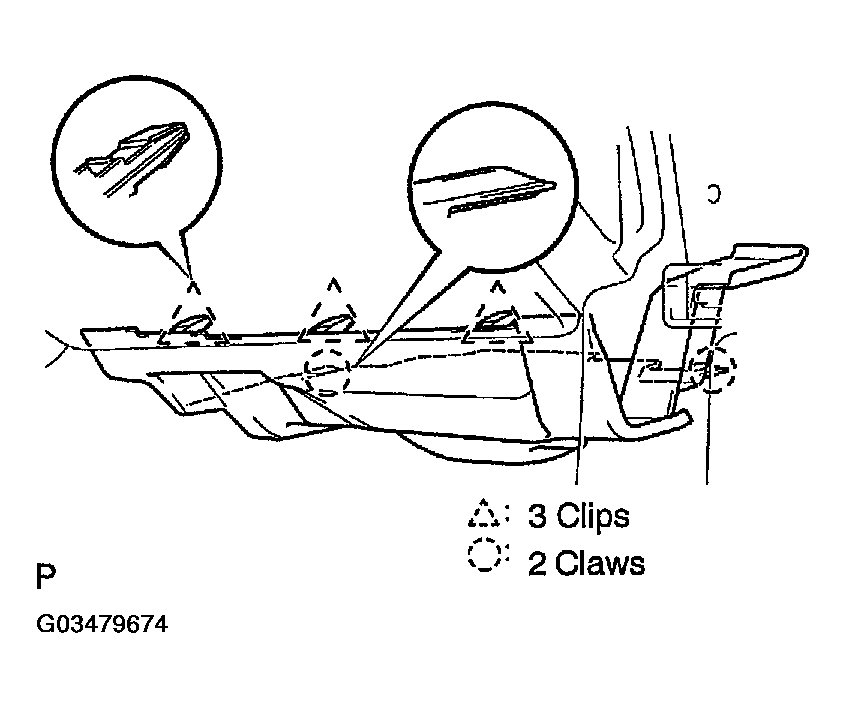

    Fig 3: Removing Instrument Panel Under Cover Sub-Assy No. 2
    G03479674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GLOVE COMPARTMENT DOOR ASSY
    1. Remove the 2 bolts, 2 screws and glove compartment door assembly, and then disconnect the connectors.

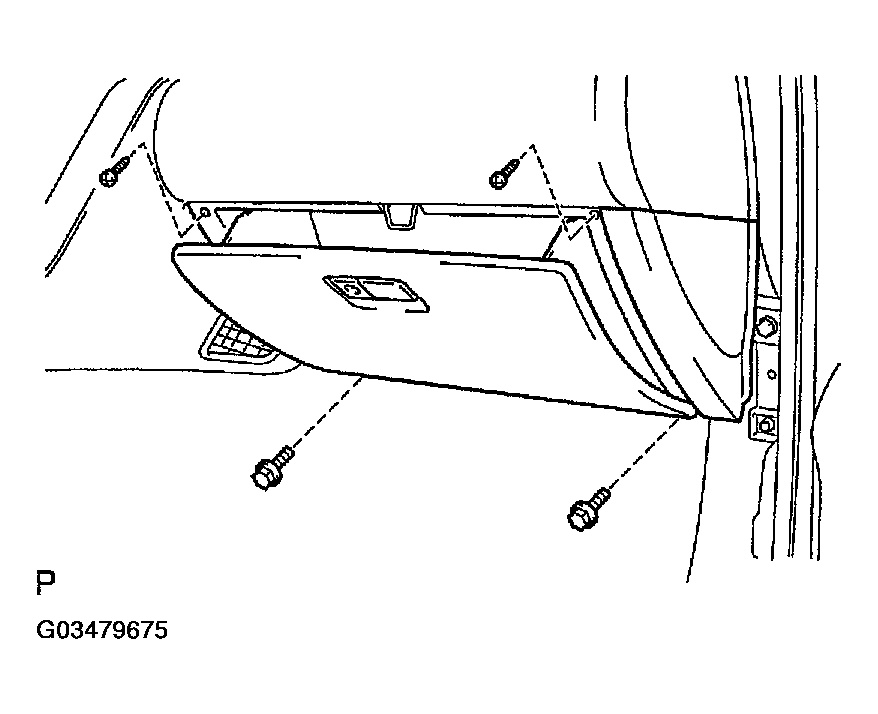

    Fig 4: Removing Glove Compartment Door Assy
    G03479675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE MICROPHONE AMPLIFIER ASSY
    1. Disconnect the connectors.
    2. Disconnect the clamp and then remove the microphone amplifier assembly.

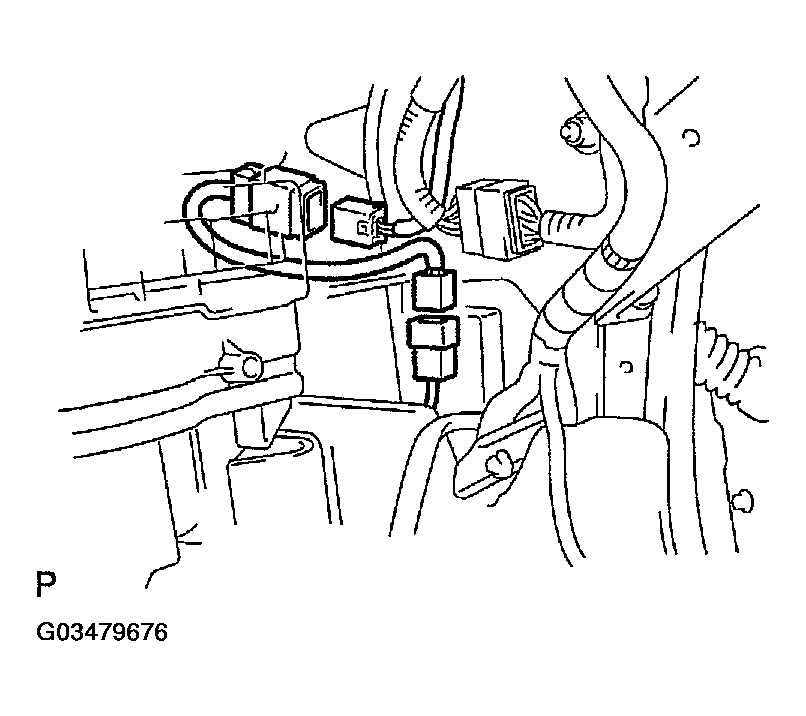

    Fig 5: Removing Microphone Amplifier Assy
    G03479676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
