2004 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Mayday Switch ASSY: Replacement

  1. REMOVE BOX PANEL NO. 3
    1. Using a screwdriver, remove the box panel No.3.

    HINT:

    Tape the screwdriver tip before use.

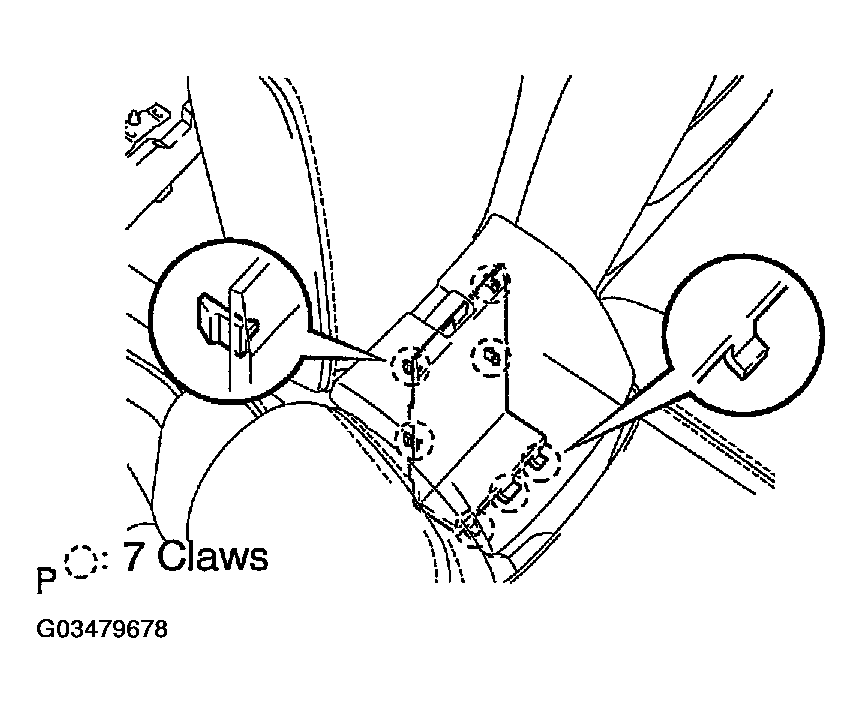

    Fig 1: Removing Box Panel No. 3
    G03479678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE MOBILEPHONE BRACKET
    1. Disconnect the connector.

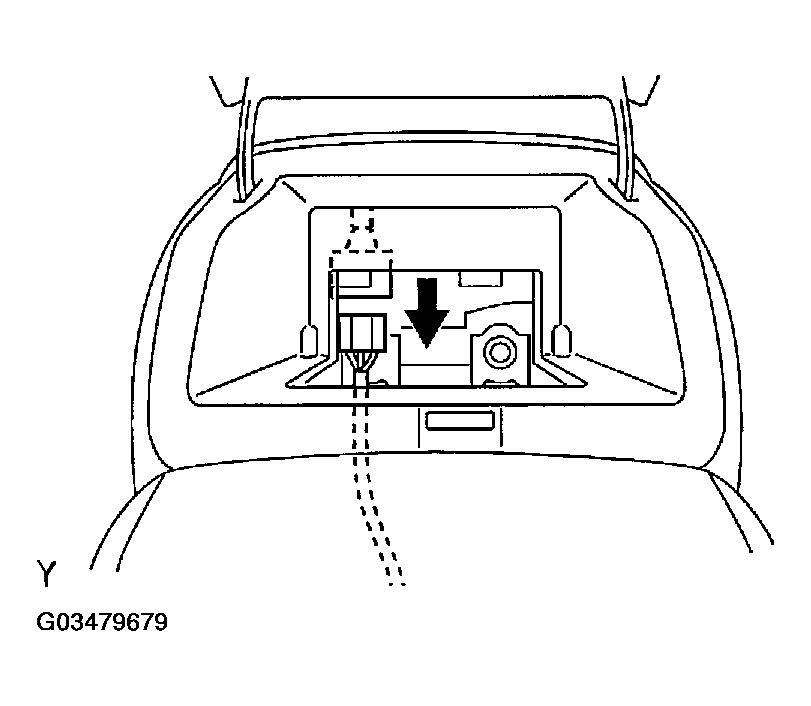

      Fig 2: Disconnecting Mobilephone Connector
      G03479679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the console box carpet.
    3. Remove the lower console box cover.
    4. Pull the mobilephone bracket in the arrow mark directions shown in Fig 3 and remove it.

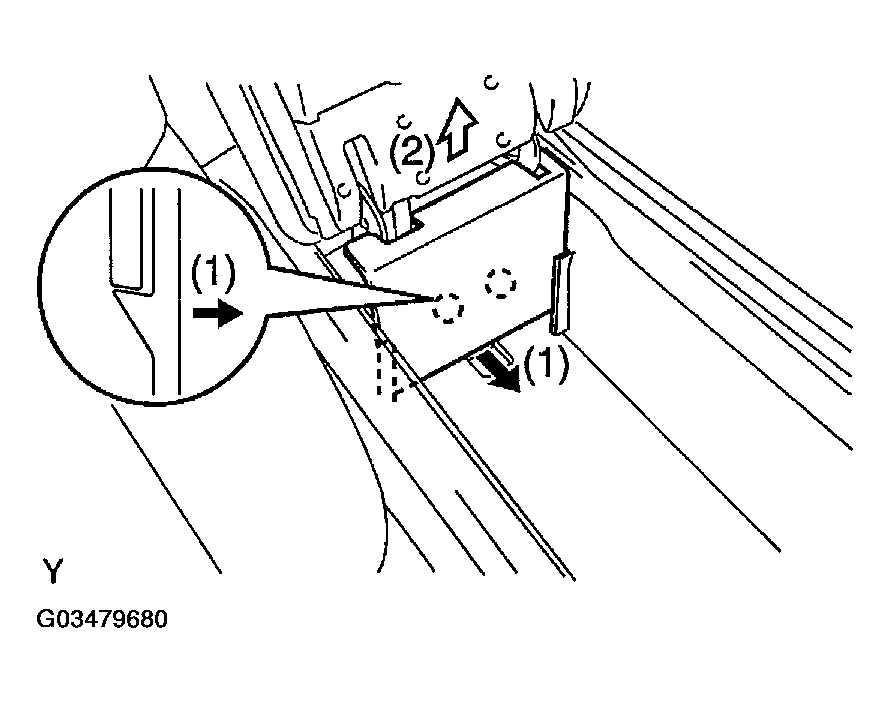

      Fig 3: Pulling Mobilephone Bracket In Direction Of Arrows
      G03479680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the tape that is attached to the wire harness of the mayday switch assembly.
    NOTE: Carefully remove the tape.
