Quarter Power Windows: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.
• A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

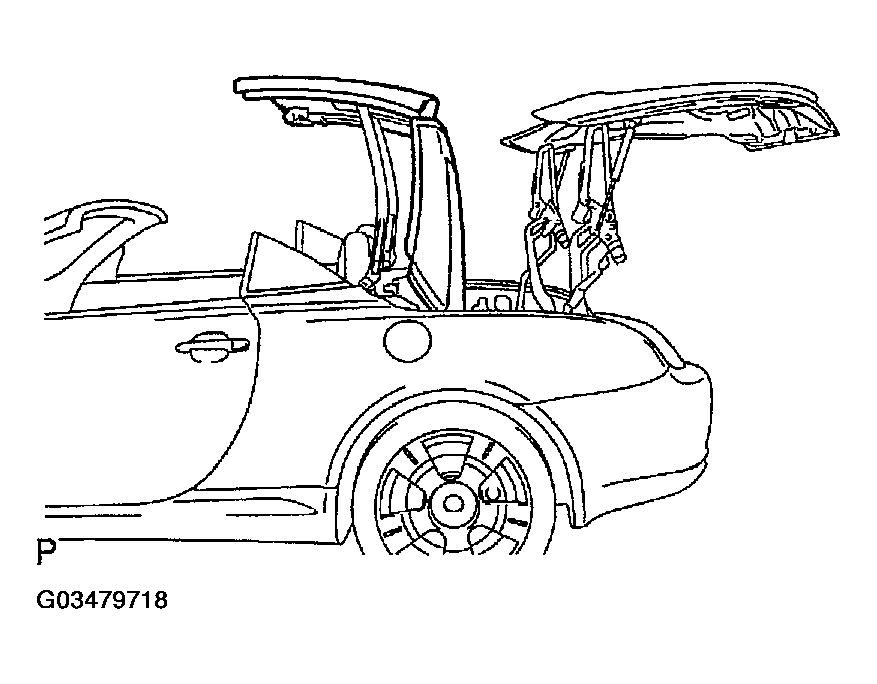

1. MOVE ROOF PANEL TO HALF
   1. Referring to the manual operation procedures, move the roof panel to half. (See MANUAL OPERATING )
   Fig 1: Moving Roof Panel To Half

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
3. REMOVE REAR SEAT HEADREST PLATE COVER (See  OVERHAUL  )
4. REMOVE WIND DEFLECTOR BOARD ASSY (See  OVERHAUL  )
5. REMOVE REAR SEAT HEADREST PLATE (See  OVERHAUL  )
6. REMOVE REAR SEAT HEADREST ASSY (See  OVERHAUL  )
7. REMOVE REAR SEATBACK ASSY (See  OVERHAUL  )

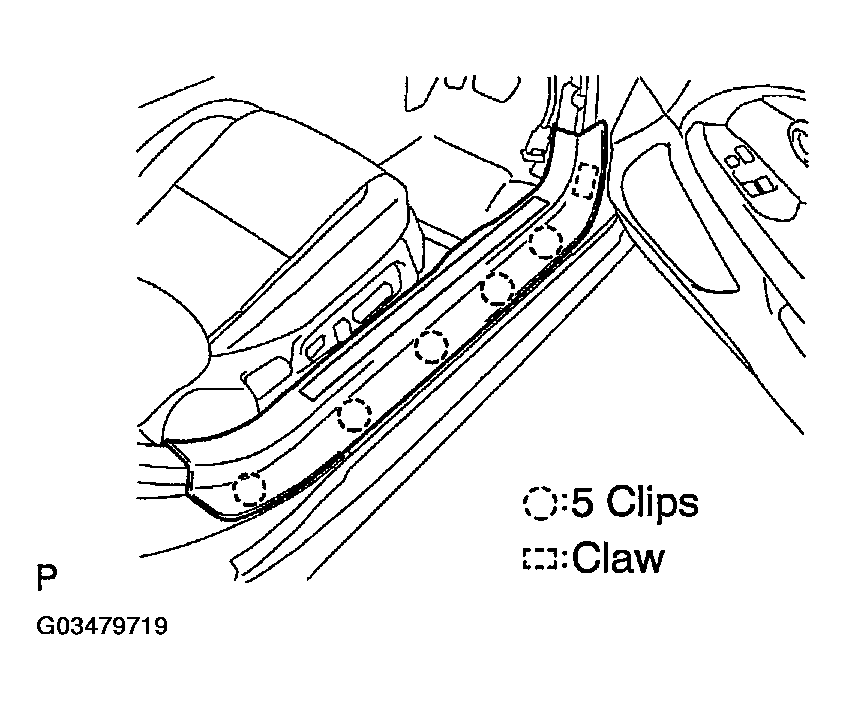

8. REMOVE DOOR SCUFF PLATE ASSY RH
   1. Using a screwdriver, remove the door scuff plate assy RH.

   HINT:

   Tape the screwdriver tip before use.

   Fig 2: Removing Door Scuff Plate Assy RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE QUARTER TRIM PANEL ASSY FRONT RH

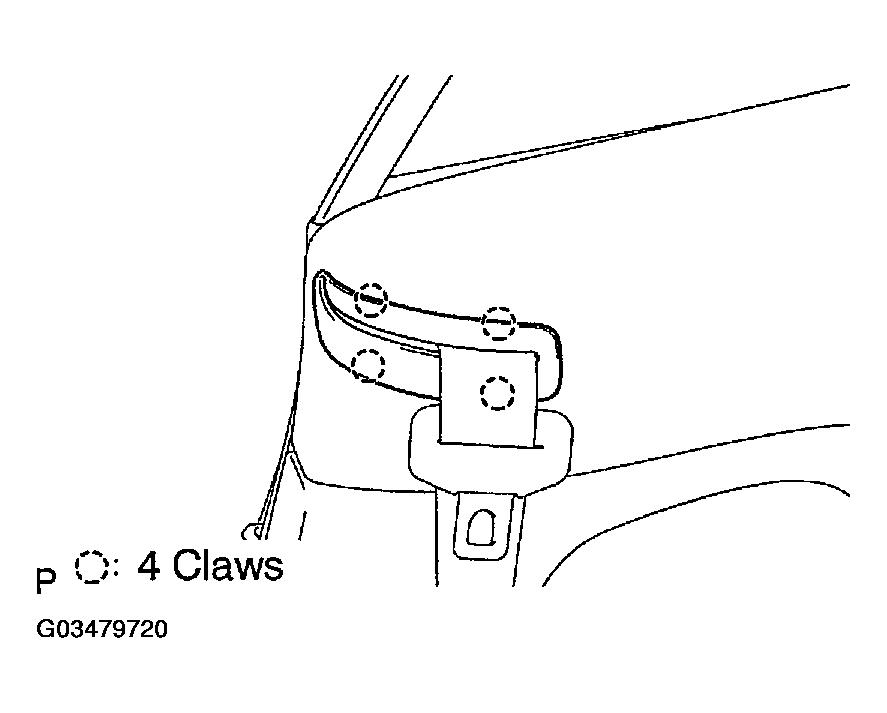

   1. Using a screwdriver, release the 4 claws and remove the front seat outer belt garnish.

      HINT:

      Tape the screwdriver tip before use.

      Fig 3: Removing Front Seat Outer Belt Garnish

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

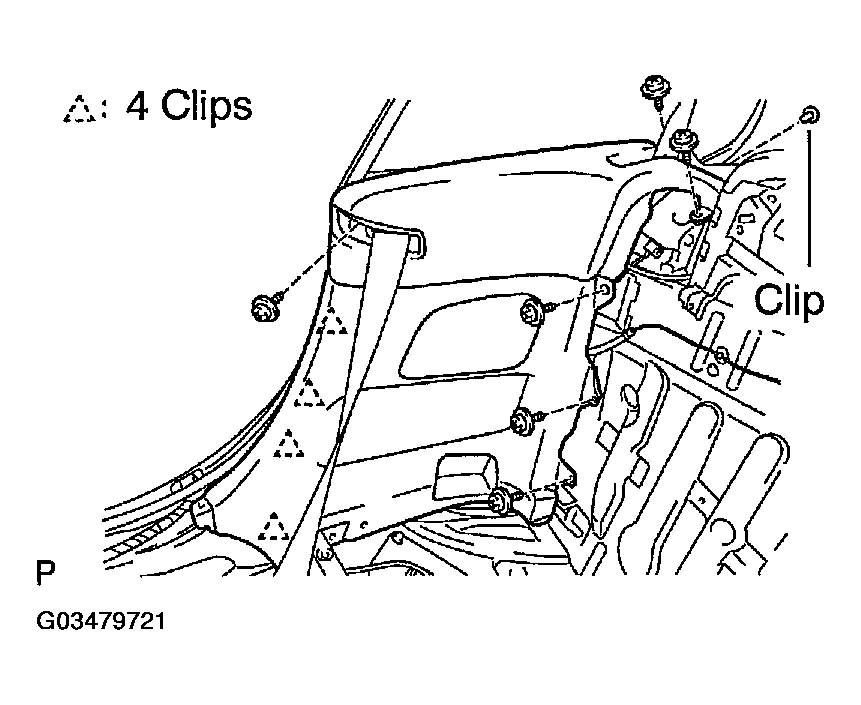

   2. Remove the 6 screws and clips.
   3. Disengage the 4 clips, then remove the quarter trim panel RH.
   Fig 4: Removing Quarter Trim Panel RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

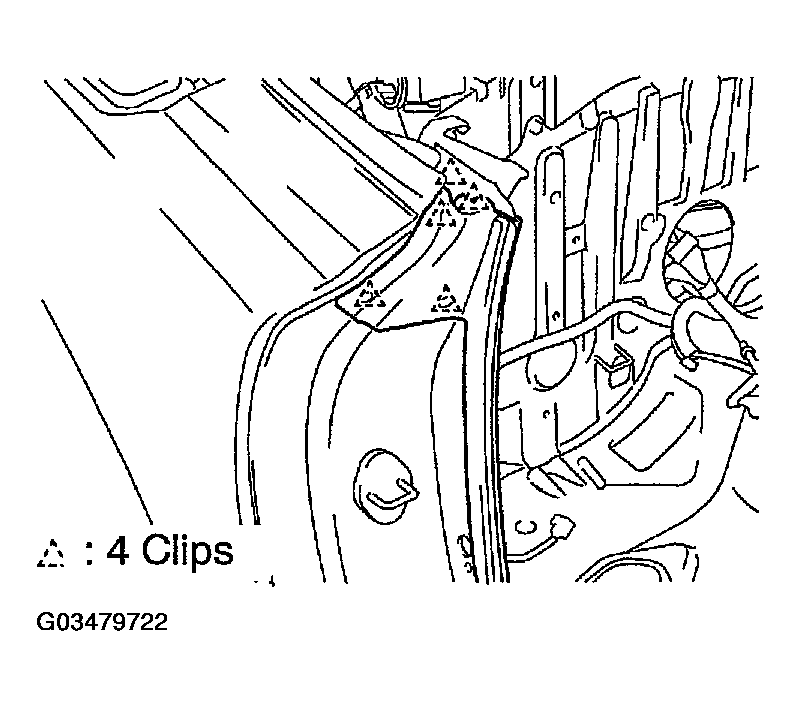

10. REMOVE CENTER PILLAR UPPER END WEATHERSTRIP RH
    1. Using a clip remover, disengage the 4 clips.
    2. Remove the center pillar upper end weatherstrip RH.
    Fig 5: Removing Center Pillar Upper End Weatherstrip RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE QUARTER BELT MOLDING RH
    1. Using a molding remover, remove the quarter belt molding RH.
    Fig 6: Removing Quarter Belt Molding RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

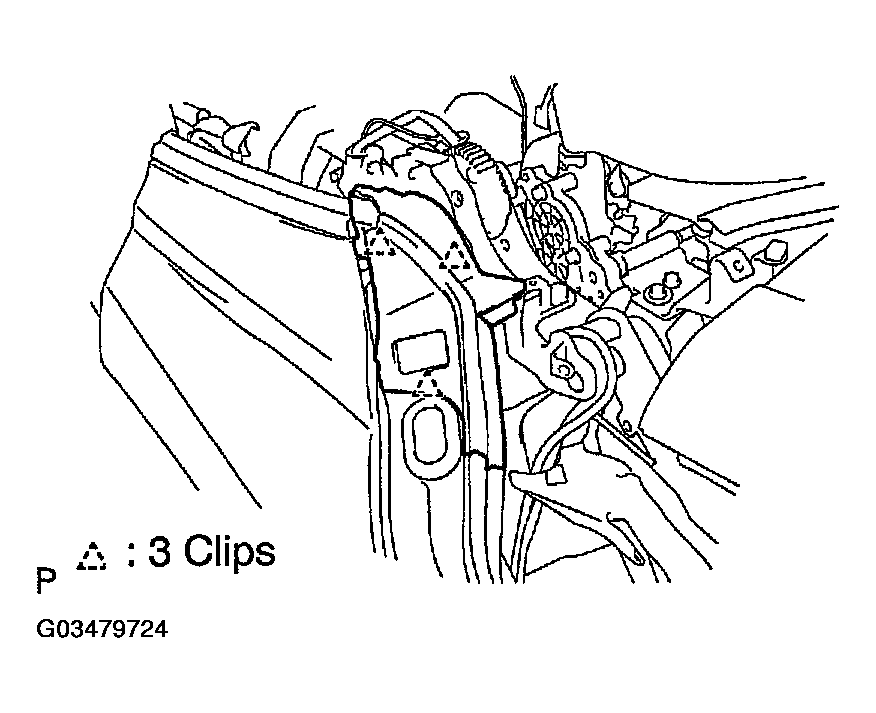

12. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP
    1. Using a clip remover, disengage the 3 clips.
    2. Remove the front part of the luggage compartment door weatherstrip.
    Fig 7: Removing Luggage Compartment Door Weatherstrip

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE REAR SPEAKER ASSY (See  REPLACEMENT  )

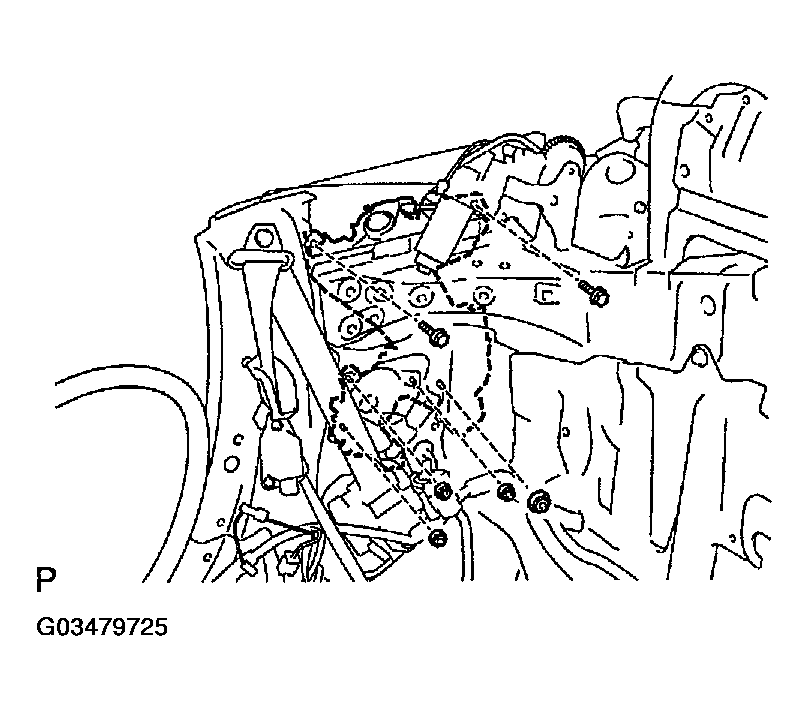

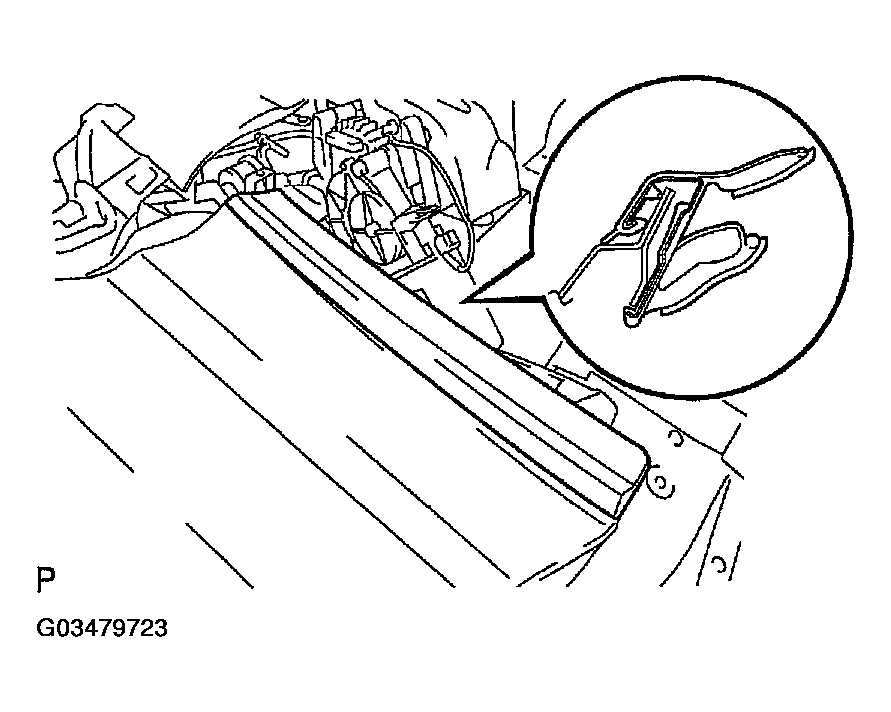

14. REMOVE QUARTER WINDOW ASSY RH
    1. Disconnect the connector.
    2. Remove the connector and grommet.
    3. Remove the 2 bolts and 4 nuts.
    4. Remove the quarter window assy RH.
    Fig 8: Removing Quarter Window Assy RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

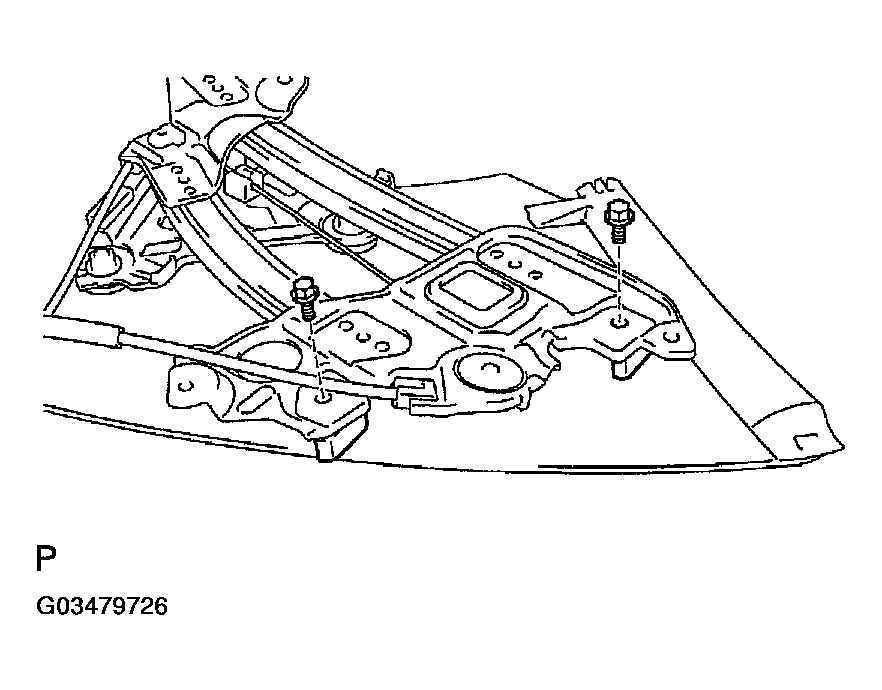

15. REMOVE QUARTER WINDOW STOP
    1. Remove the 2 bolts and 2 upper front door window stops.
    Fig 9: Removing Quarter Window Stop

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

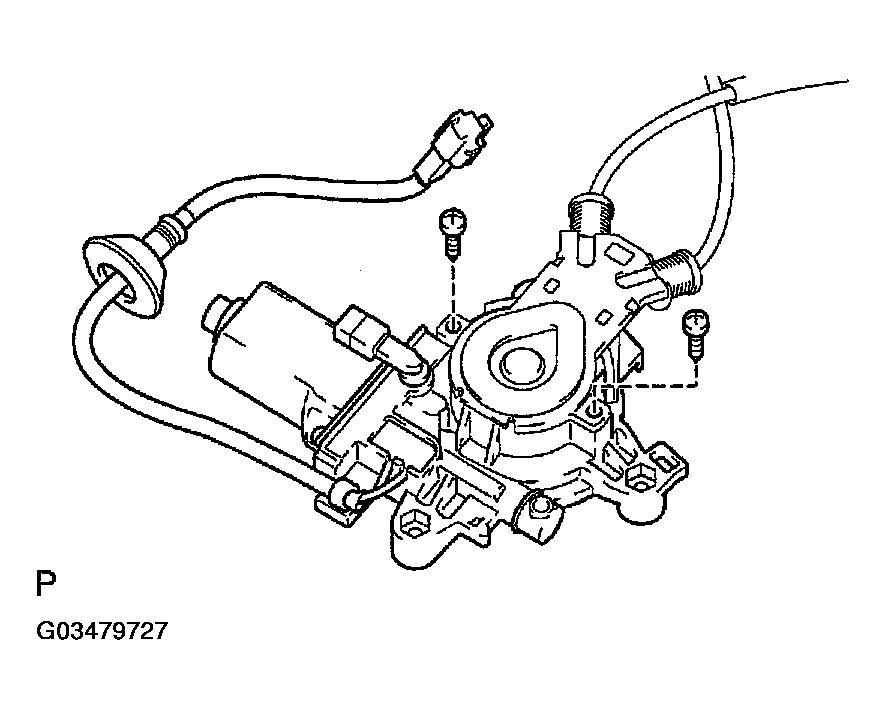

16. REMOVE POWER WINDOW REGULATOR MOTOR ASSY RH
    1. Remove the 2 screws and power window regulator motor RH.
    Fig 10: Removing Power Window Regulator Motor RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

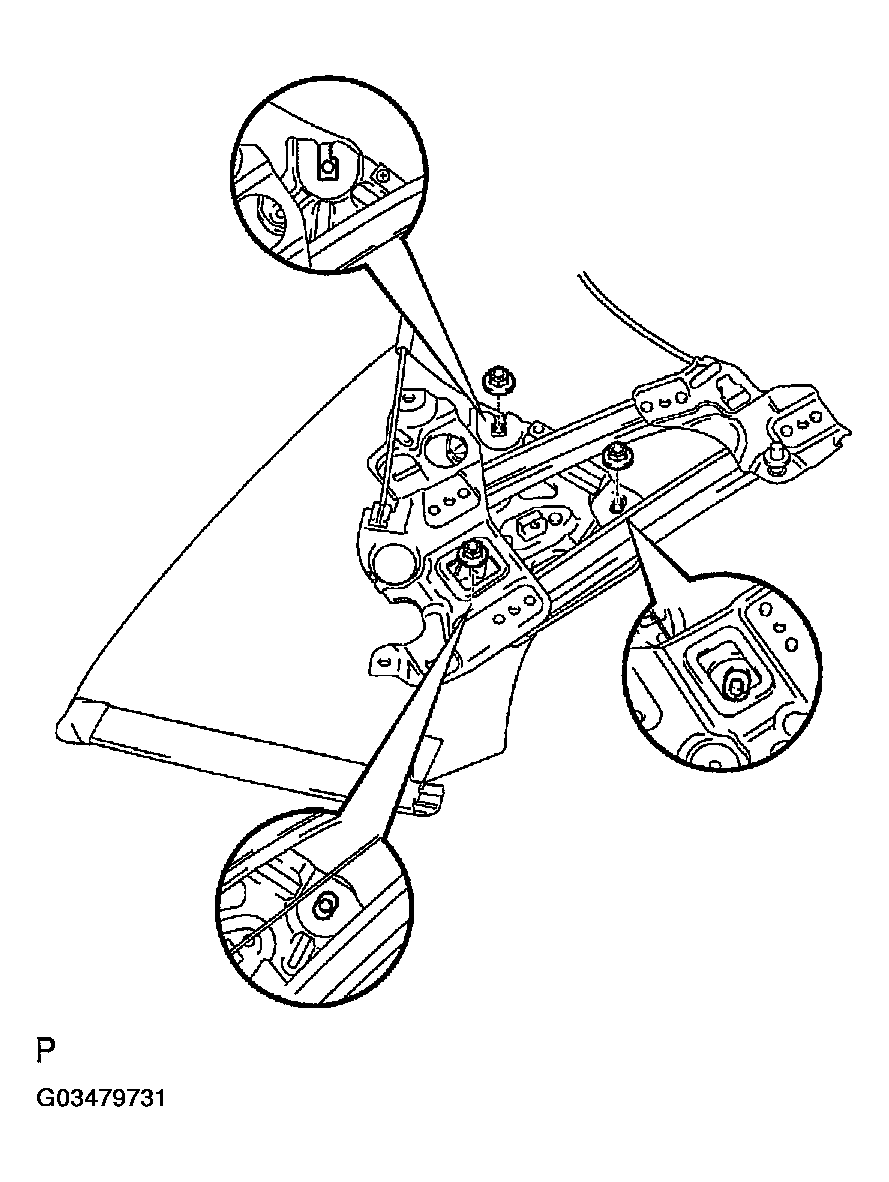

17. REMOVE QUARTER WINDOW ASSY RH

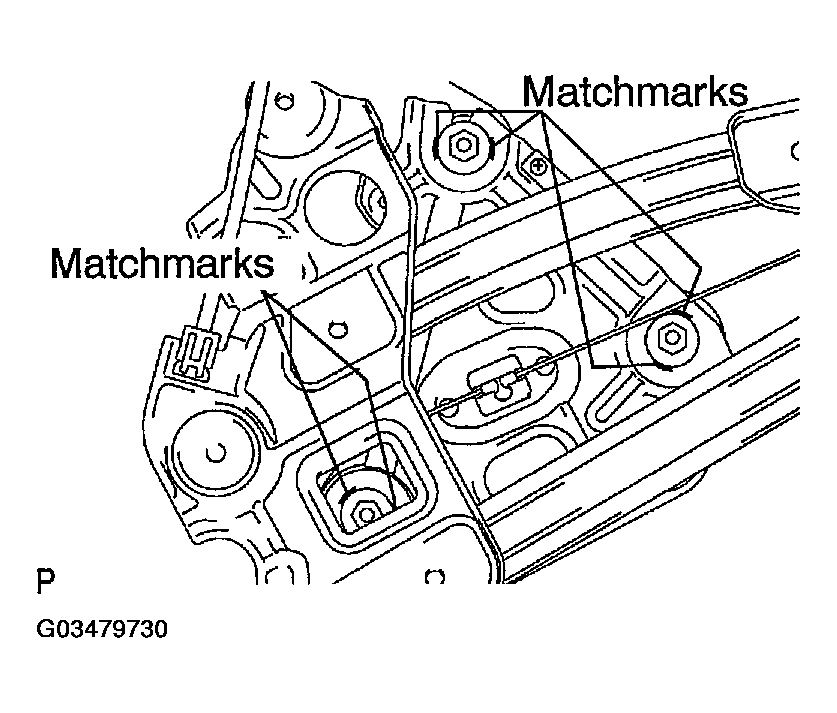

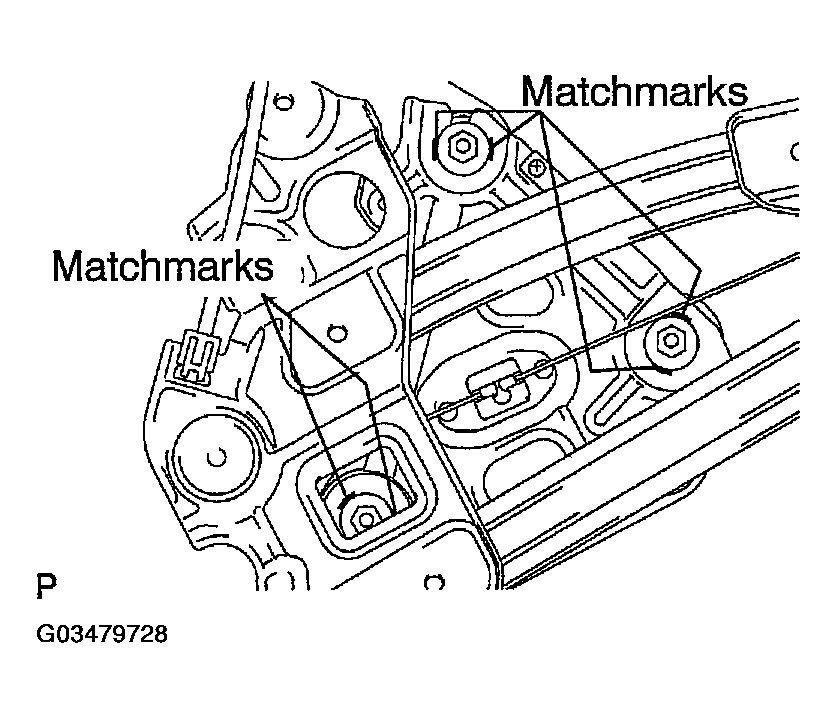

    1. As shown in Fig 11 , mark the 3 nuts position on the quarter window assy.
       Fig 11: Marking Nuts Position On Quarter Window Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

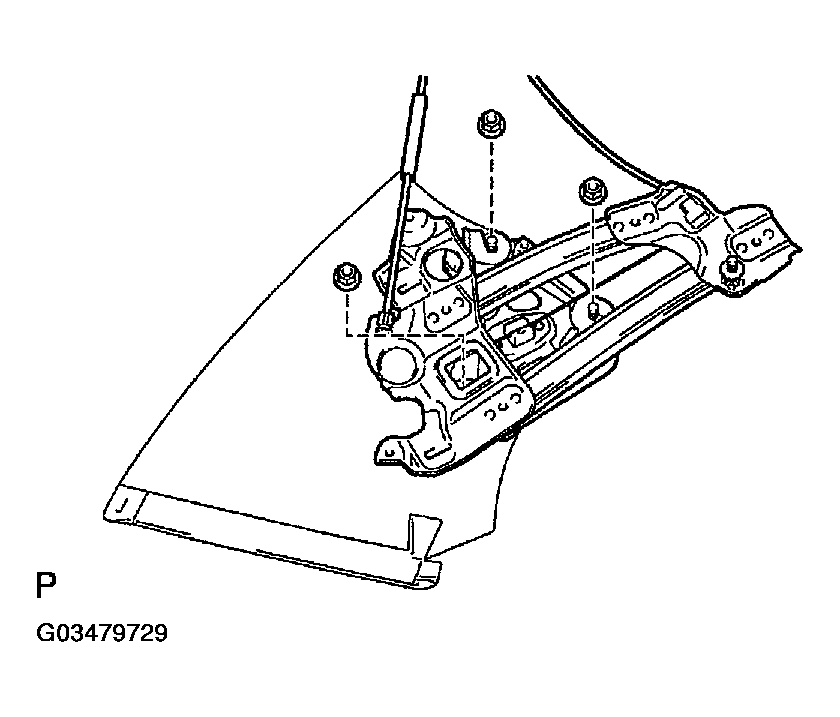

    2. Remove the 3 nuts and quarter window assy RH.
    Fig 12: Removing Quarter Window Assy RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL QUARTER WINDOW ASSY RH
    1. Install the glass and 3 nuts so that the nut will be placed at the marked positions.
    Fig 13: Installing Glass At Marked Positions

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    When replacing the bracket with a new one, mark the bracket position on the panel assy side.

    Fig 14: Marking Bracket Position On Panel Assy Side

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. INSTALL POWER WINDOW REGULATOR MOTOR ASSY RH

    Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

20. INSTALL QUARTER WINDOW STOP

    Torque: 13 N.m (133 kgf.cm, 10 fl.lbf)

21. INSTALL QUARTER WINDOW ASSY RH

    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

22. ADJUST QUARTER WINDOW ASSY RH (See  ADJUSTMENT  )
23. INSTALL REAR SEATBACK ASSY (See  OVERHAUL  )

    Torque:

    • Bolt: 18 N.m (184 kgf.cm, 13 ft.lbf)
    • Nut: 18 N.m (184 kgf.cm, 13 ft.lbf)
24. INSTALL REAR SEAT HEADREST ASSY

    Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

25. INSTALL WIND DEFLECTOR BOARD ASSY

    Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
