Power Mirror Control System: Inspection

HINT:

On the RH side, use the same procedures as on the LH side.

1. INSPECT ELECTRO CHROMIC OUTER MIRROR OPERATION
   1. Disconnect the outer mirror connector.
   2. Inspect the mirror motor operation.

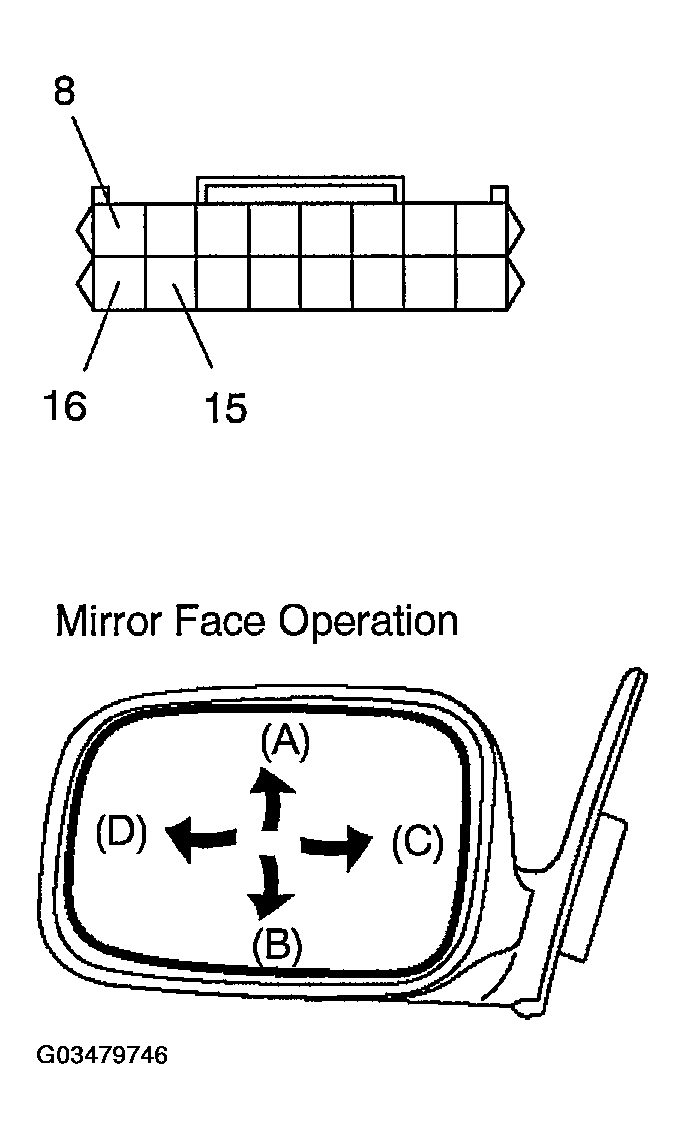

      Fig 1: Inspecting Mirror Motor Operation

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply battery voltage as shown in VOLTAGE TABLE  .
      VOLTAGE TABLE



      Battery connection	Mirror face operation
      Positive (+) - 8 Negative (-) - 15	Upward (A)
      Positive (+) -15 Negative (-) - 8	Downward (B)
      Positive (+) - 16 Negative (-) - 15	Left (C)
      Positive (+) -15 Negative (-) - 16	Right (D)

      If the operation is not as specified, replace the mirror assembly.

   3. Inspect the electrical retract motor operation.

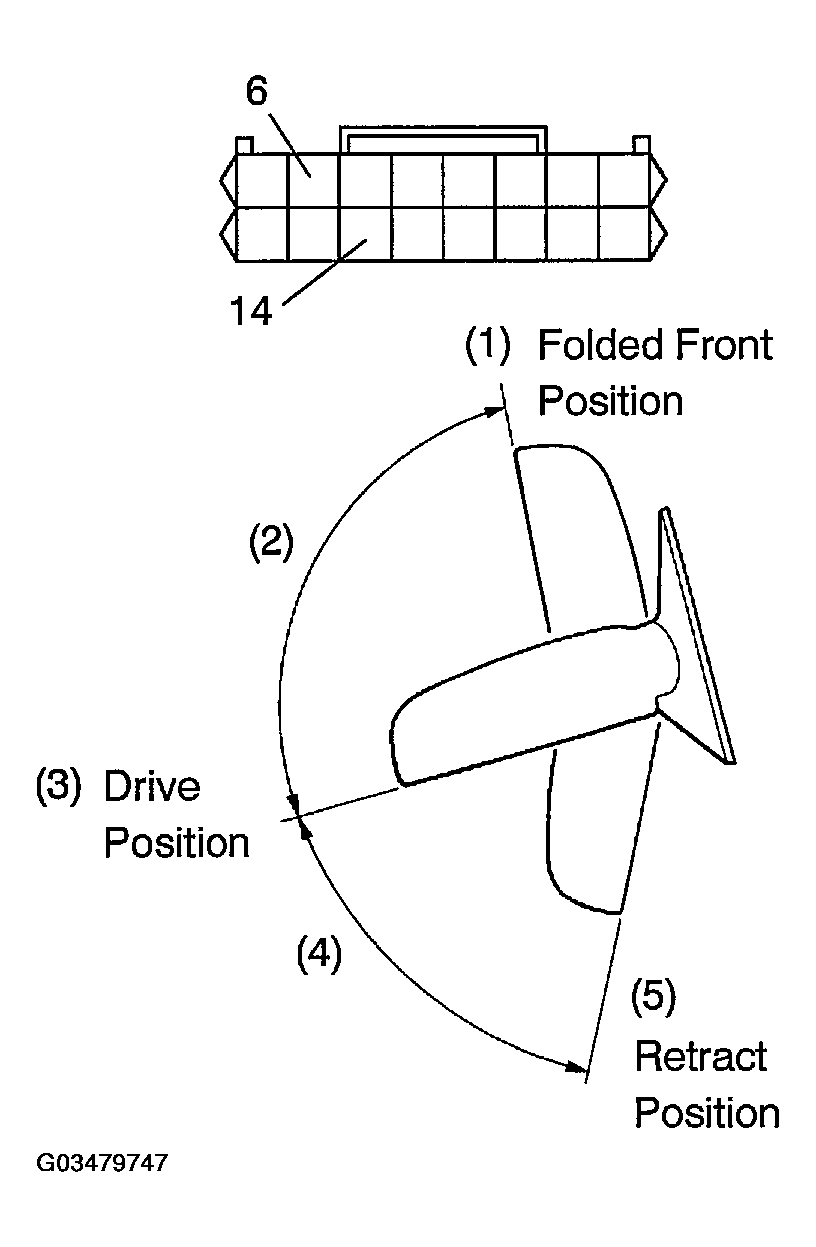

      Fig 2: Inspecting Electrical Retract Motor Operation

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. At the folded front position:

         Apply battery voltage as shown in VOLTAGE TABLE  .

         ELECTRICAL RETRACT MOTOR OPERATION (FOLDED FRONT POSITION)



         Battery connection	Mirror operation
         Positive (+) - 6 Negative (-) - 14	To retract position ((1) to (5) position)
         Positive (+) -14 Negative (-) - 6	Unmoved

         If the operation is not as specified, replace the mirror assembly.

      2. Between the folded front position and drive position:

         Apply battery voltage as shown in VOLTAGE TABLE  .

         ELECTRICAL RETRACT MOTOR OPERATION (FOLDED FRONT & DRIVE POSITION)



         Battery connection	Mirror operation
         Positive (+) - 6 Negative (-) - 14	To retract position ((2) to (5) position)
         Positive (+) - 14 Negative (-) - 6	To folded front position ((2) to (1) position)

         If the operation is not as specified, replace the mirror assembly.

      3. At the drive position:

         Apply battery voltage as shown in VOLTAGE TABLE  .

         ELECTRICAL RETRACT MOTOR OPERATION (DRIVE POSITION)



         Battery connection	Mirror operation
         Positive (+) - 6 Negative (-) - 14	To retract position ((3) to (5) position)
         Positive (+) - 14 Negative (-) - 6	Unmoved

         If the operation is not as specified, replace the mirror assembly.

      4. Between the drive position and retract position:

         Apply battery voltage as shown in VOLTAGE TABLE  .

         ELECTRICAL RETRACT MOTOR OPERATION (DRIVE POSITION & RETRACT POSITION)



         Battery connection	Mirror operation
         Positive (+) - 6 Negative (-) -14	To retract position ((4) to (5) position)
         Positive (+) -14 Negative (-) - 6	To drive position ((4) to (3) position)

         If the operation is not as specified, replace the mirror assembly.

      5. At the retract position:

         Apply battery voltage as shown in VOLTAGE TABLE  .

         ELECTRICAL RETRACT MOTOR OPERATION (RETRACT POSITION)



         Battery connection	Mirror operation
         Positive (+) - 6 Negative (-) -14	Unmoved
         Positive (+) - 14 Negative (-) - 6	To drive position ((5) to (3) position

         If the operation is not as specified, replace the mirror assembly.

   4. Inspect the mirror heater operation.

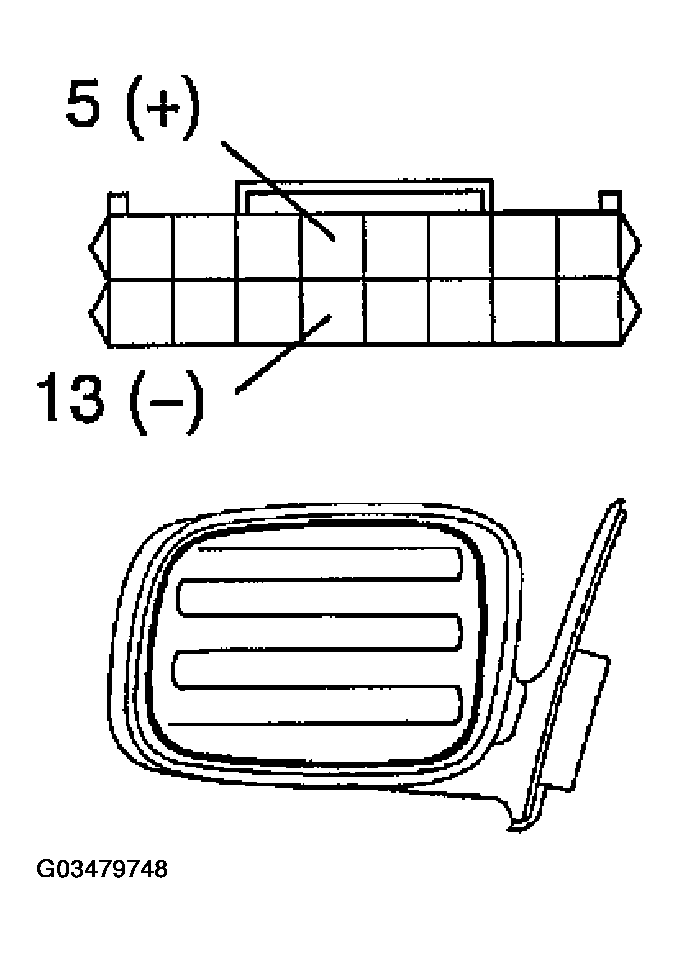

      1. Check the resistance between terminals 5 and 13 of the connector.

         Resistance: 3.3 - 4.5 Ω

         Fig 3: Checking Resistance Between Terminals 5 & 13

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 13 of the connector.
      3. Check that the mirror becomes warm.

      HINT:

      It will take a short time for the mirror to become warm.

      If the operation is not as specified, replace the mirror assembly.

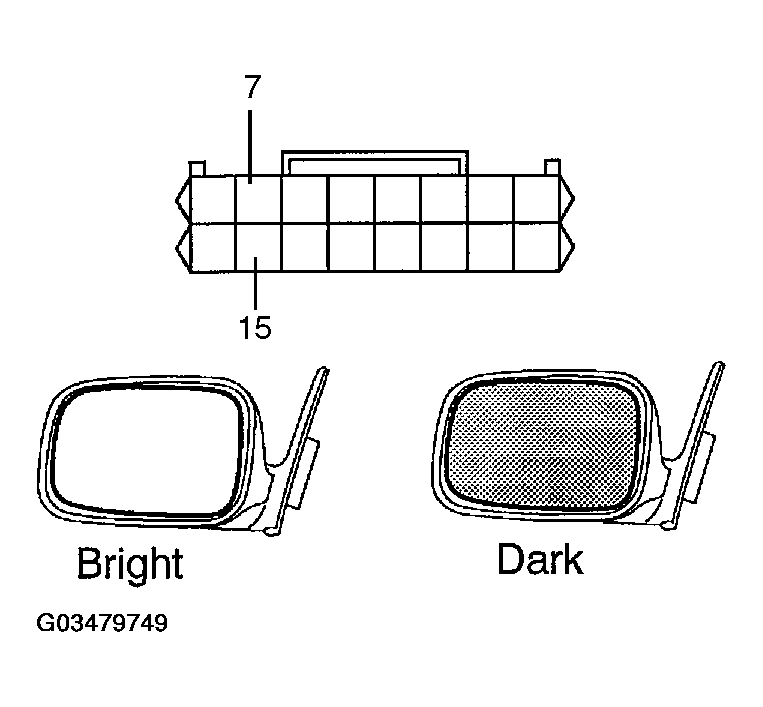

   5. Inspect the electrochromic outer mirror operation.
      1. Connect the positive (+) lead from the dry cell battery (1.5 V) to terminal 7 and the negative (-) lead to terminal 15, then check that the mirror face becomes dark.
      2. Reconnect them to the dry cell battery in the reverse order, then check that the mirror face becomes bright.

      If the operation is not as specified, replace the mirror assembly.

   Fig 4: Identifying Terminals 2 & 10 Of Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
