2004 Lexus RX 330 AWDFACTORY OEM SERVICE PROCEDURE

Front Wheel Alignment: Adjustment

  1. INSPECT TIRE (See  WHEEL & TIRE SYSTEM  )
  2. MEASURE VEHICLE HEIGHT

    Vehicle height:

    Except Air Suspension:

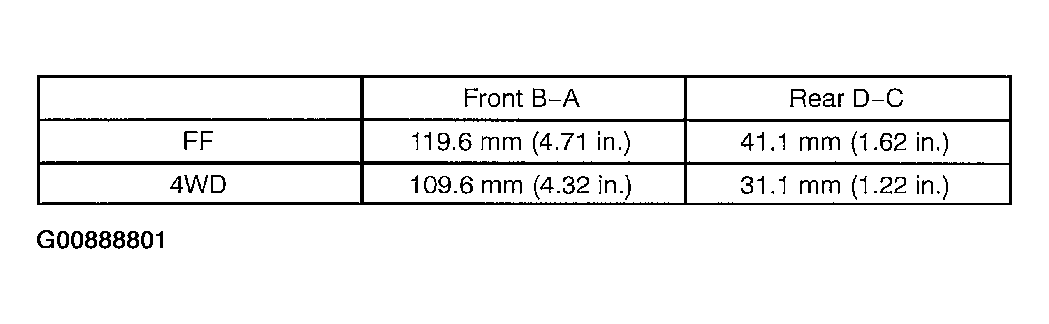

    Fig 1: Vehicle Height Specifications (Except Air Suspension)
    G00888801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Air Suspension:

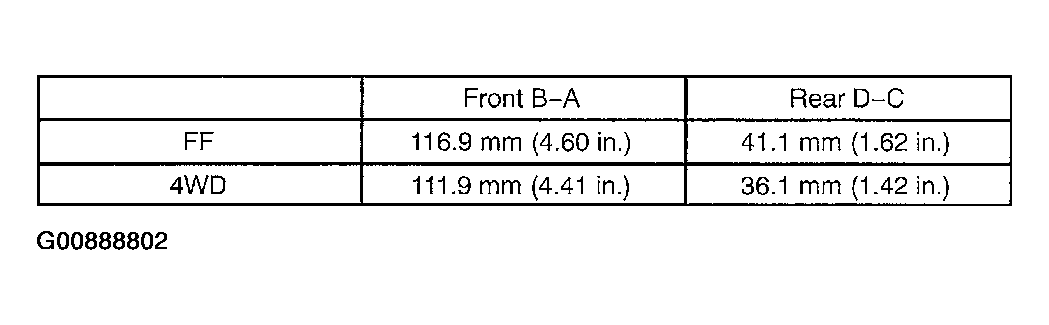

    Fig 2: Vehicle Height Specifications (Air Suspension)
    G00888802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Measuring Points:

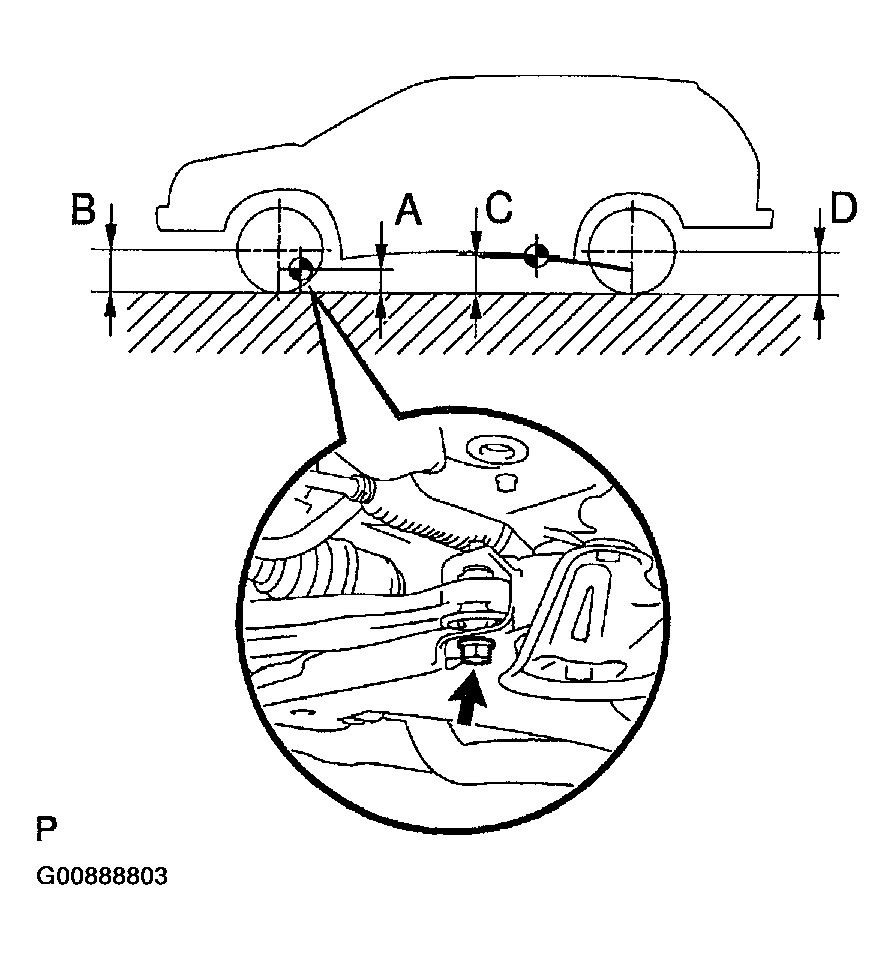

    Fig 3: Vehicle Height/ Measuring Points
    G00888803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. A: Ground clearance of lower suspension arm No. 2 bush set bolt center
    2. B: Ground clearance of front wheel center
    3. C: Ground clearance of strut rod set bolt center
    4. D: Ground clearance of rear wheel center
    NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

    HINT:

    Bounce the vehicle at the corners up and down to stabilize the suspension and inspect the vehicle height.

  3. INSPECT TOE-IN

    Toe-in:

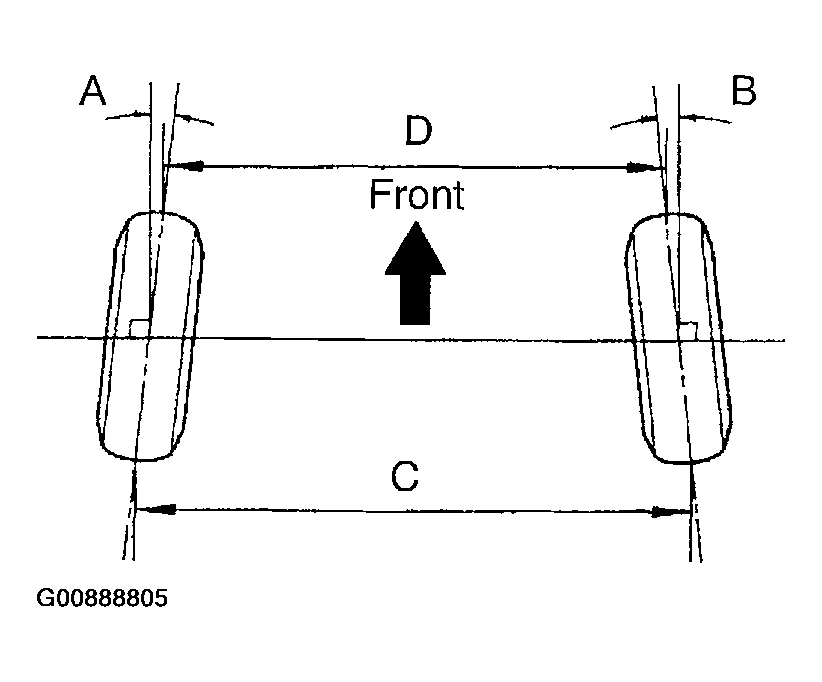

    Fig 4: Identifying Toe-In
    G00888805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
