2004 Lexus RX 330 AWDFACTORY OEM SERVICE PROCEDURE

Speed Sensor Front LH: Replacement

HINT:

Replace the RH side by using the same procedures as those for the LH side.

REMOVE FRONT WHEEL
REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH
REMOVE SPEED SENSOR FRONT LH
1. Disconnect the speed sensor connector.

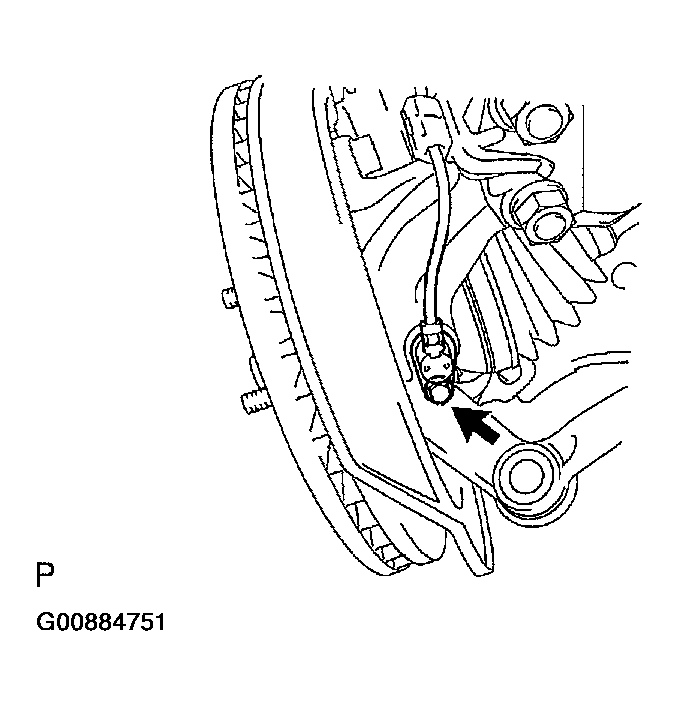

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and the clamp from the body and the shock absorber assy.

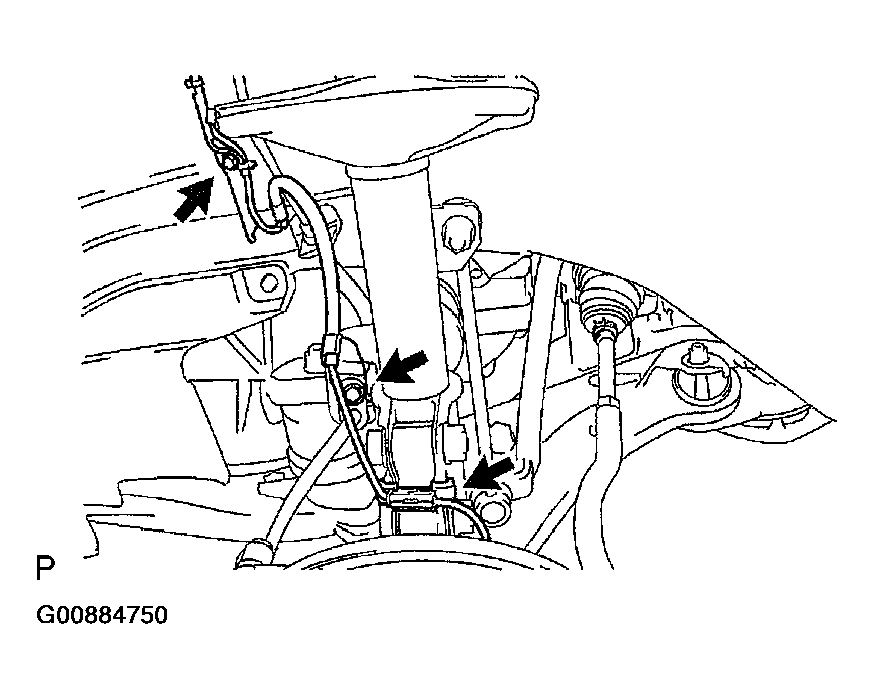

  Fig 2: Removing Bolt And Speed Sensor Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and the speed sensor front.
  NOTE: Prevent foreign matter from attaching to the sensor tip.
