Transfer Assembly: Disassembly

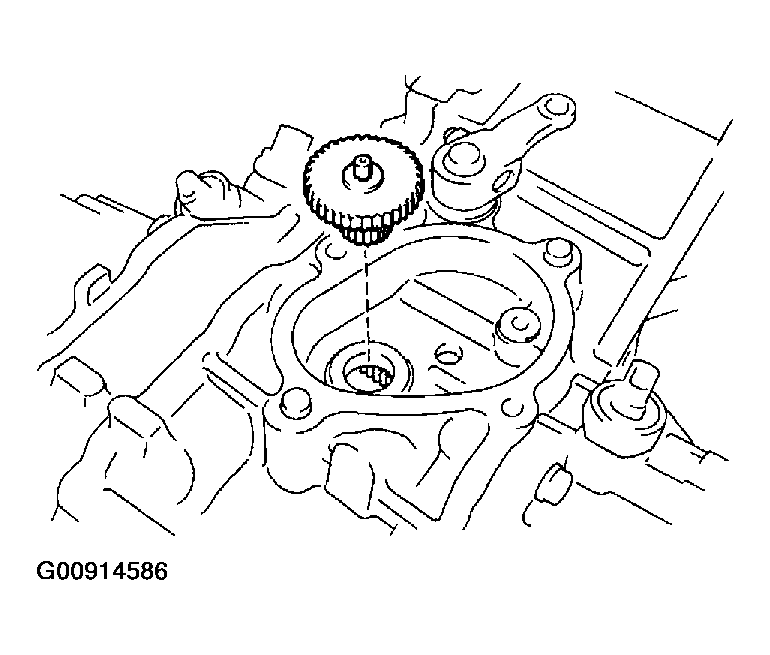

Remove the bolt and driven gear.

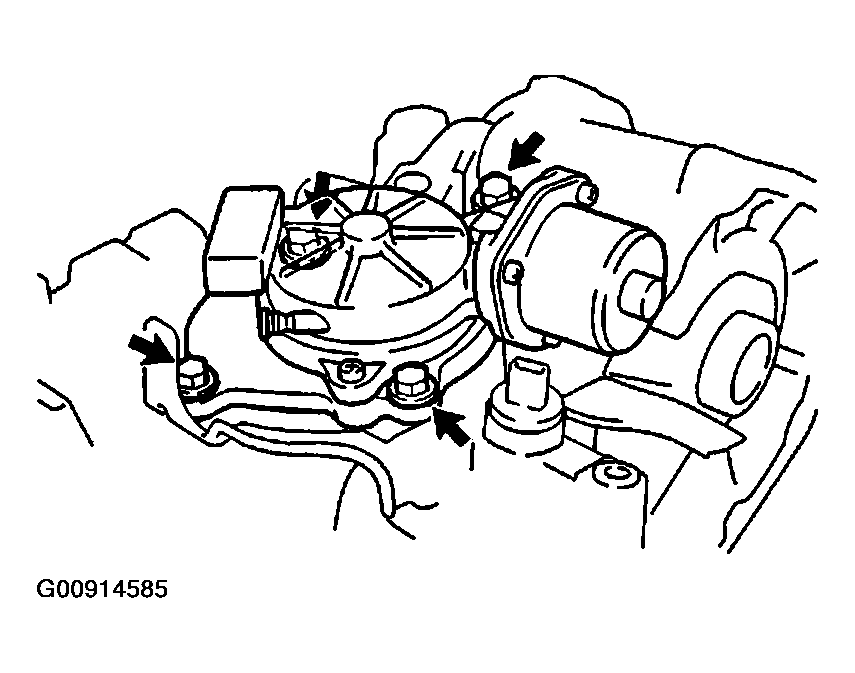

Remove the 4 bolts and motor actuator.

Fig 1: Removing Bolts & Motor Actuator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

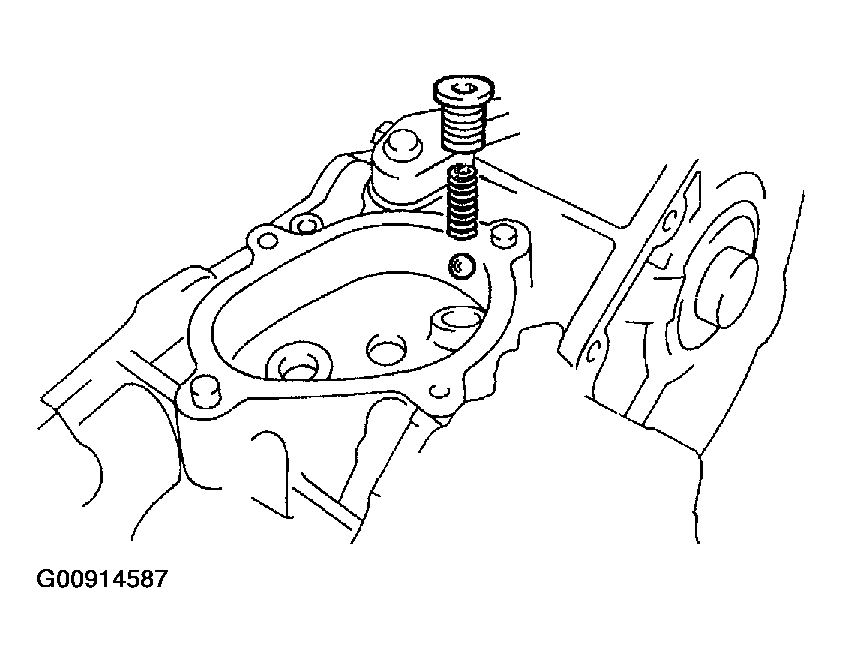

1. Using a torx socket wrench (T40), remove the screw plug.
2. Using a magnetic finger, remove the spring and ball.
   Fig 3: Removing Screw Plug, Spring & Ball

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 transfer indicator switches and 3 gaskets.

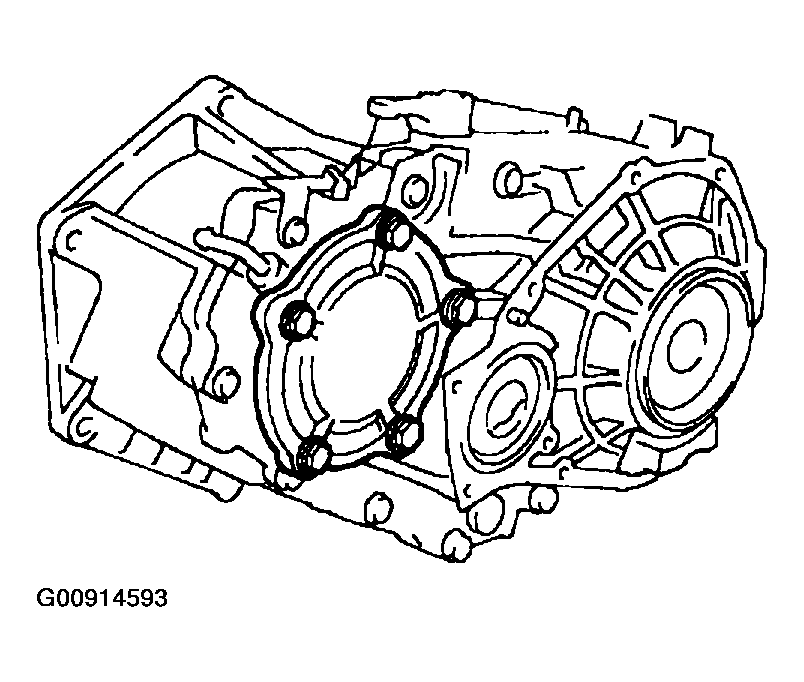

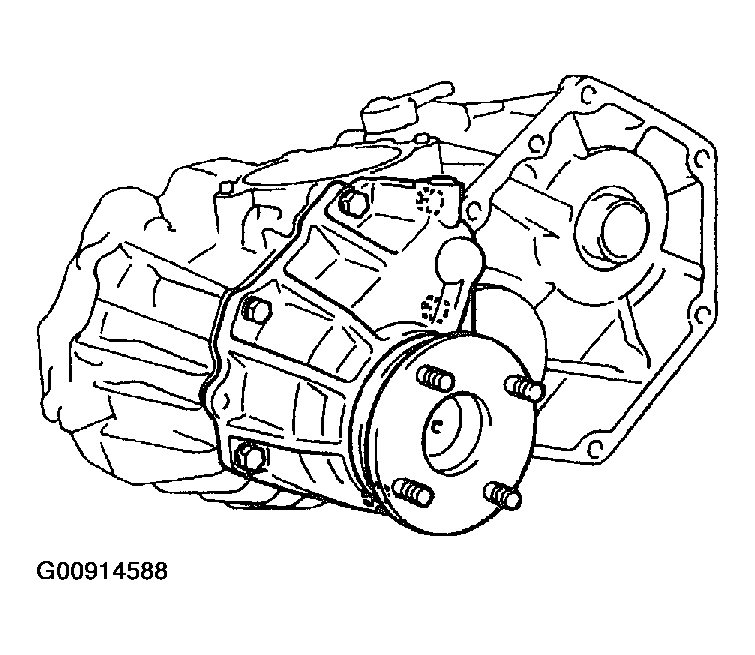

Remove the 6 bolts and front extension housing.

HINT:

If necessary, tap the front extension housing lightly with a plastic hammer.

Fig 4: Removing Bolts & Front Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

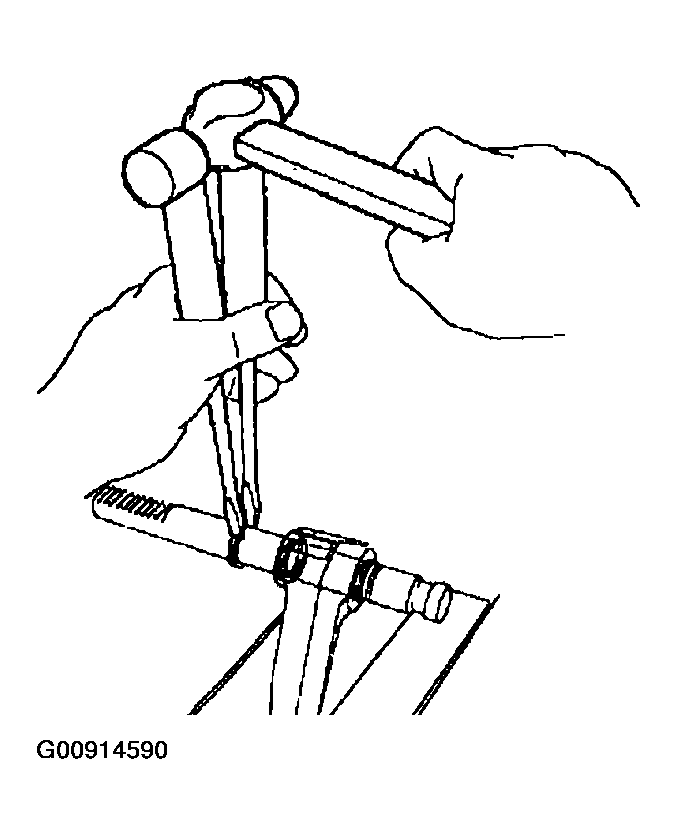

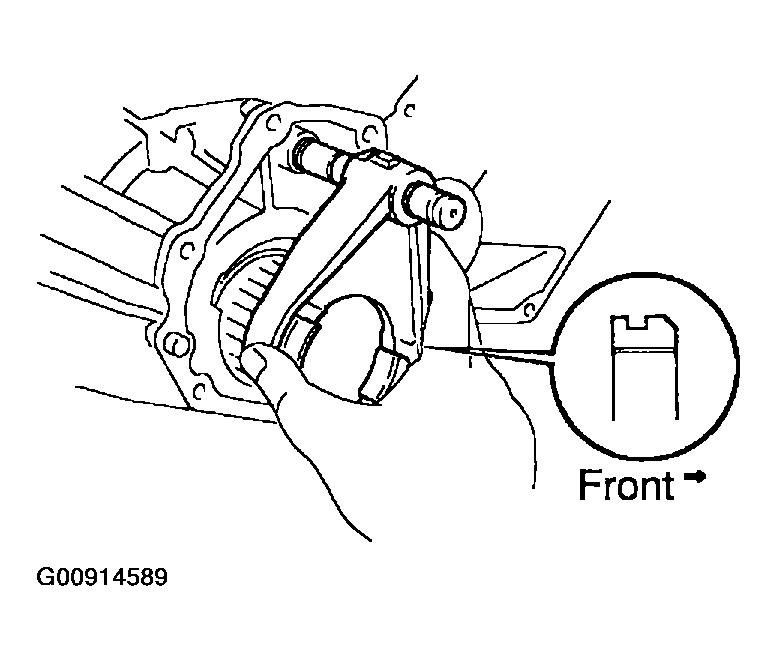

1. Using 2 screwdrivers and a hammer, tap out the 3 snap rings from the shift fork No. 2 shaft.
2. Separate the shift fork No. 2 shaft and shift fork No. 2.
   Fig 6: Tapping Out Snap Rings From Shift Fork Using Screwdrivers & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 9 bolts and rear extension housing.

HINT:

If necessary, tap the rear extension housing lightly with a plastic hammer.

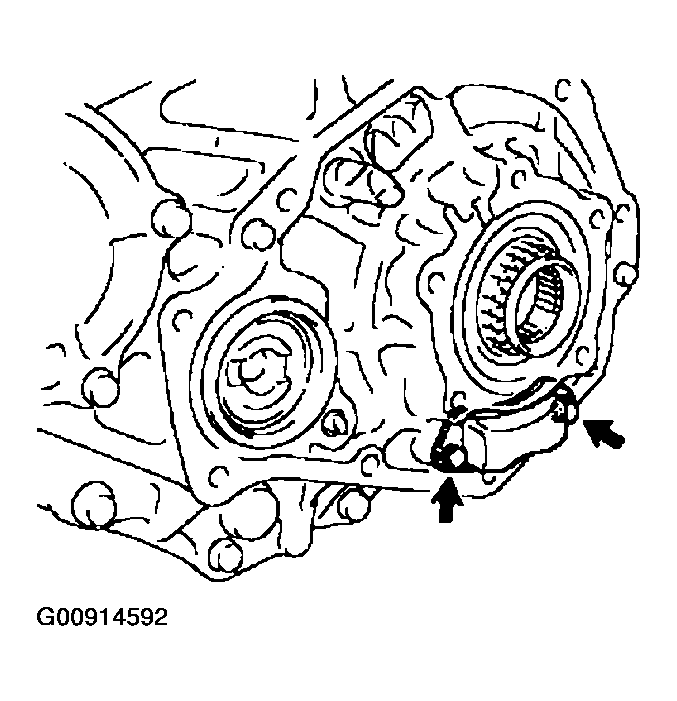

Remove the 2 bolts and oil strainer.

Fig 8: Removing Bolts & Oil Strainer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

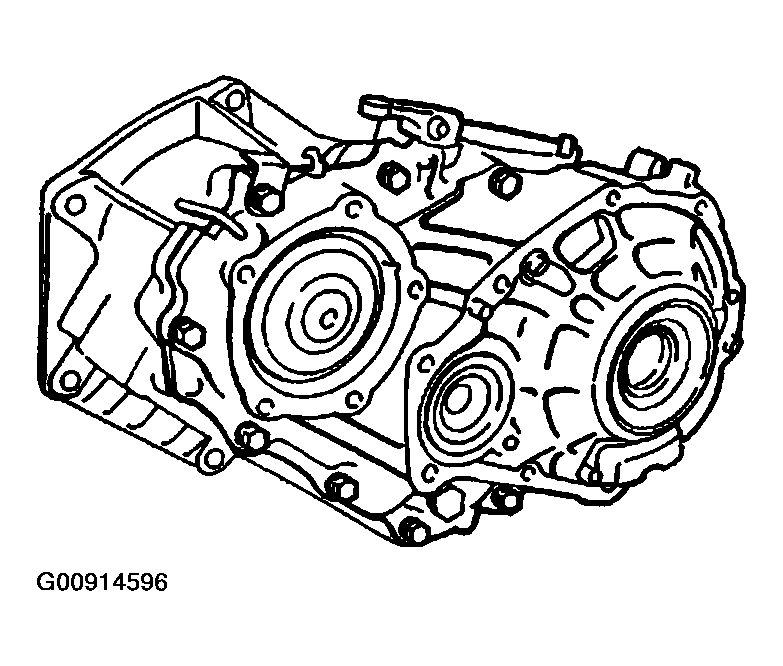

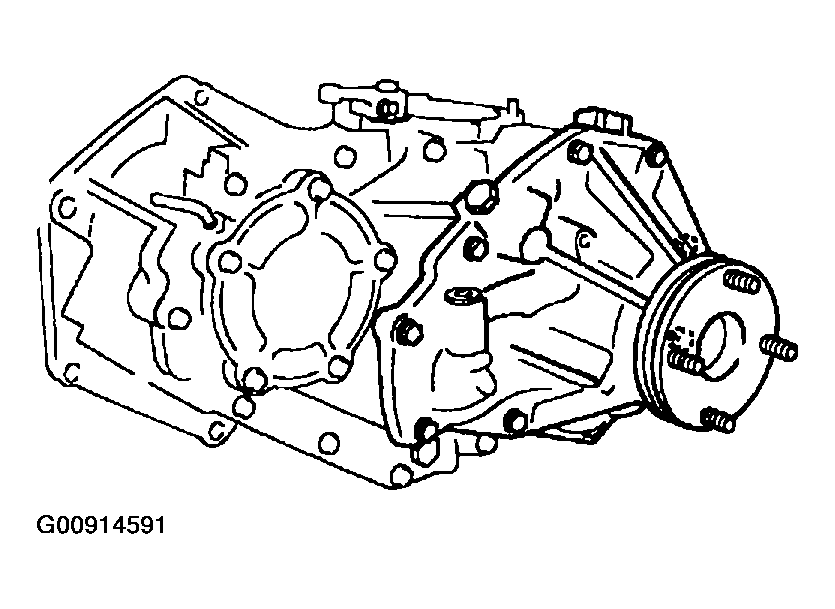

1. Remove the 5 bolts.
   Fig 9: Removing Case Cover Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a brass bar and hammer, tap the case cover and remove it.
   Fig 10: Tapping Case Cover Using Brass Bar & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

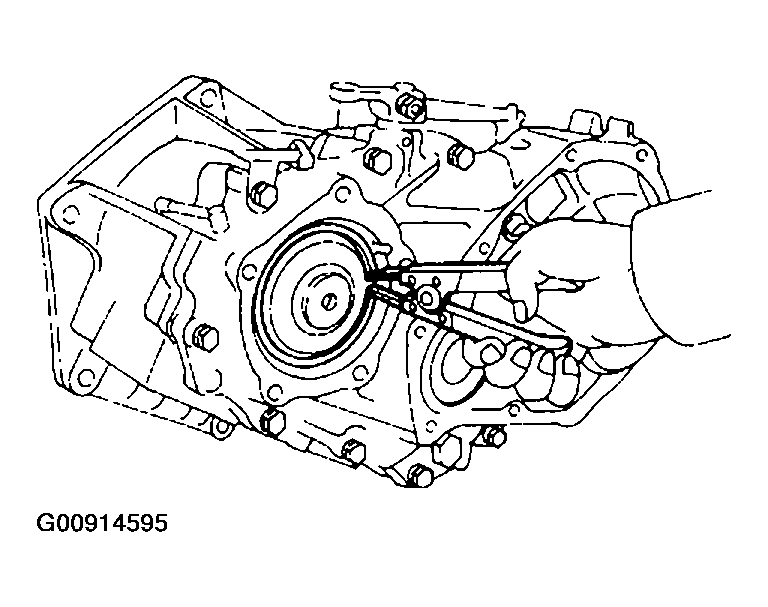

1. Using a snap ring expander, remove the snap ring from the rear case.
   Fig 11: Removing Snap Ring From Rear Case Using Snap Ring Expander

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 8 bolts.

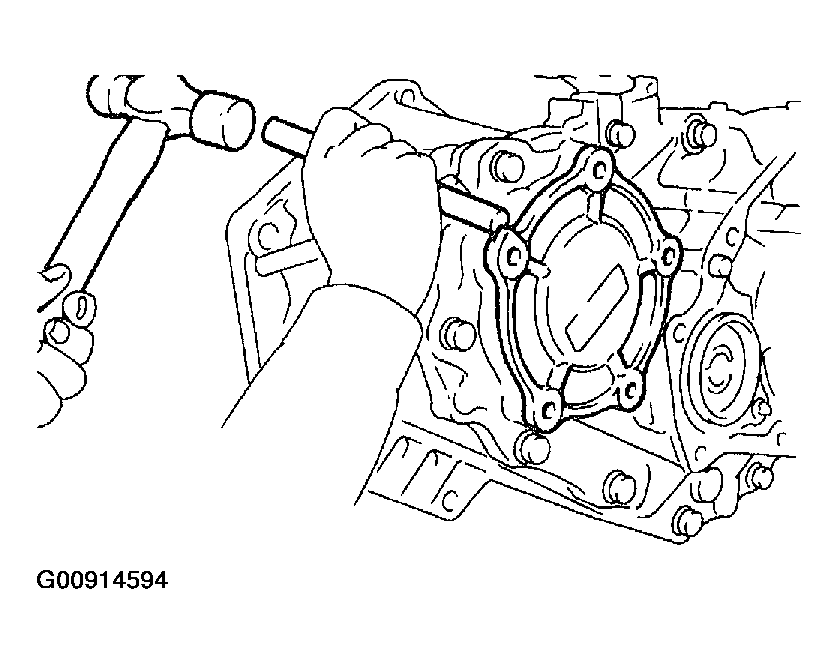

3. Using a brass bar and hammer, tap the rear case and separate it.
   Fig 12: Tapping Rear Case Using Brass Bar & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

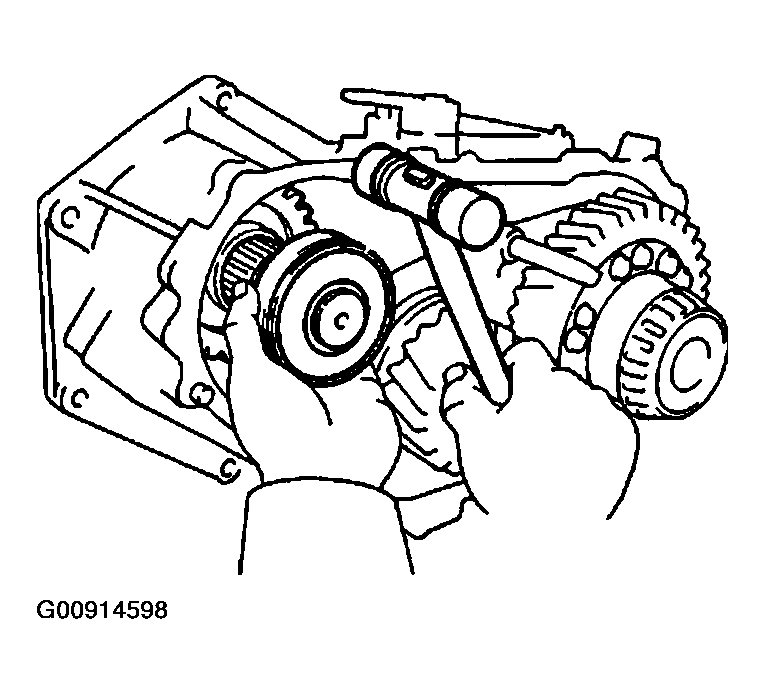

Using a plastic hammer, remove the input shaft assembly from the front case.

Fig 14: Removing Input Shaft Assembly From Front Case Using Plastic Hammer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

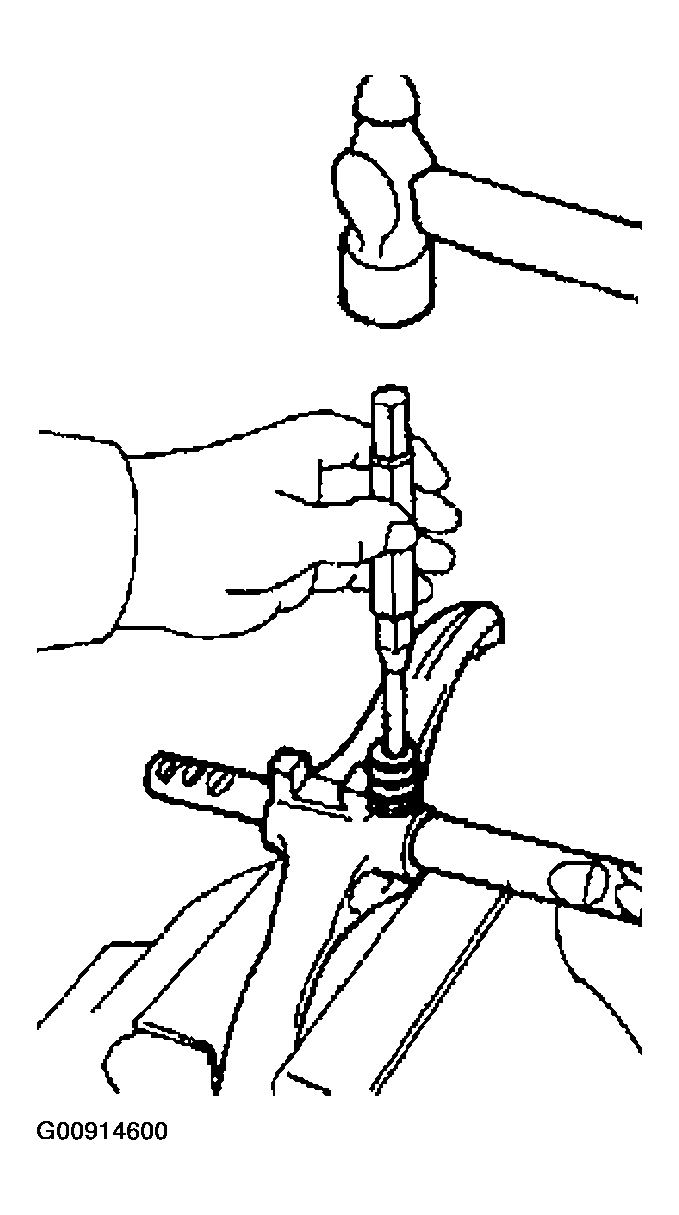

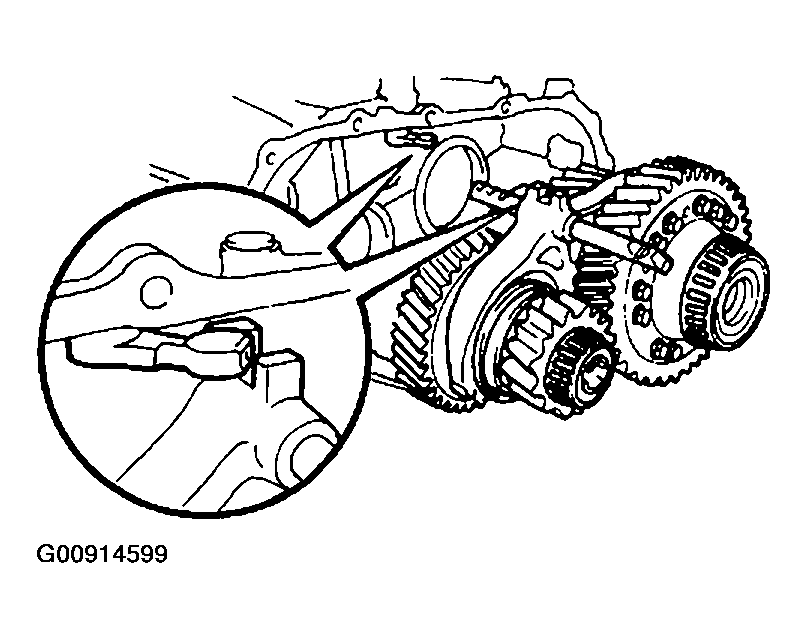

1. Using a pin punch and hammer, drive out the slotted spring pin.
2. Separate the shift fork No. 1 and shift fork No. 1 shaft.
   Fig 16: Driving Out Slotted Spring Pin Using Pin Punch & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

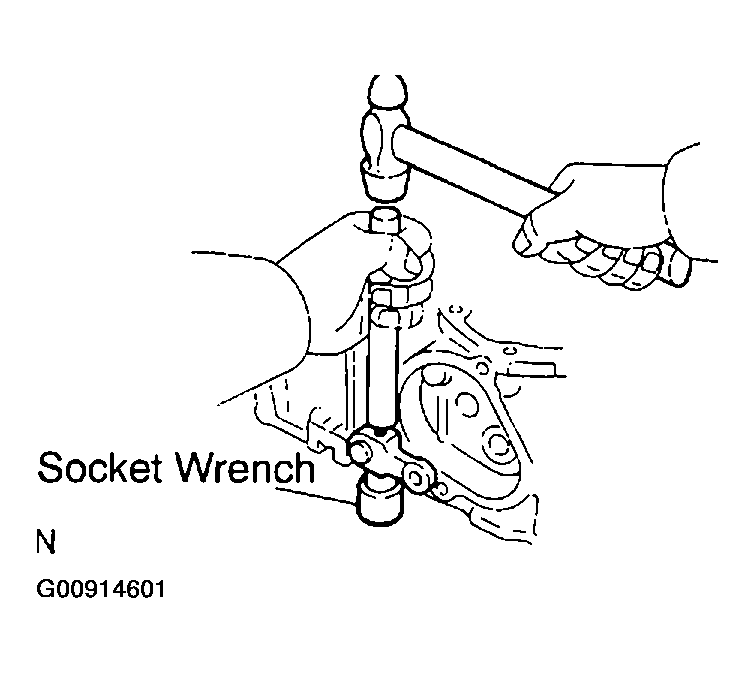

1. Remove the nut and washer from the shift outer lever.
2. Using a brass bar, hammer and socket wrench, tap out the lever lock pin.
3. Remove the shift outer lever, washer and inner lever from the front case.
   Fig 17: Tapping Out Lever Lock Pin Using Brass Bar, Hammer & Socket Wrench

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

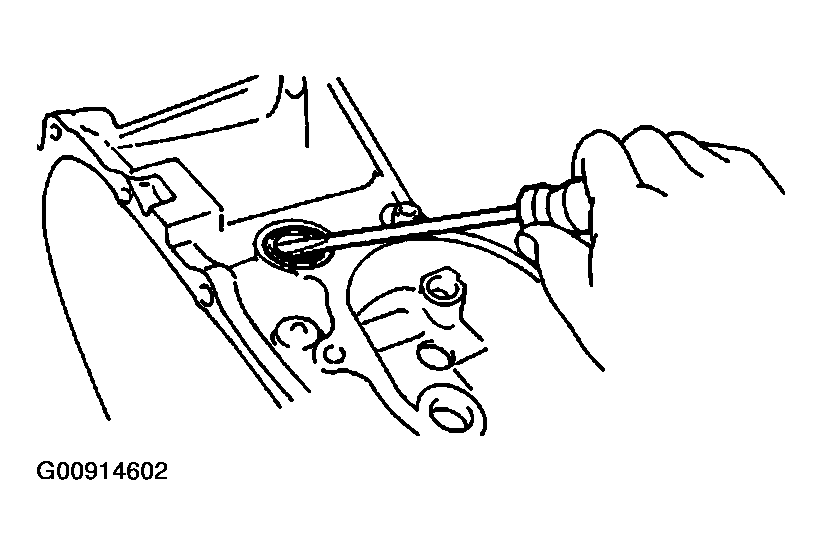

1. Using a screwdriver, pry out the oil seal from the front case.
   Fig 18: Prying Out Oil Seal From Front Case Using Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply MP grease to the lip of a new oil seal.

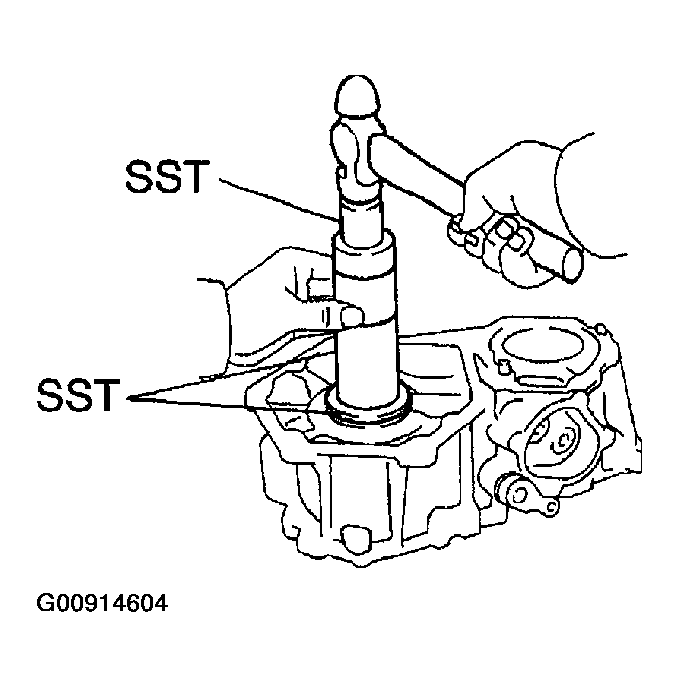

3. Using SST and a hammer, drive in a new oil seal.
   1. SST 09950-60010 (09951-00270), 09950-70010 (09951-07150)
   Fig 19: Driving In New Oil Seal Using SST & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

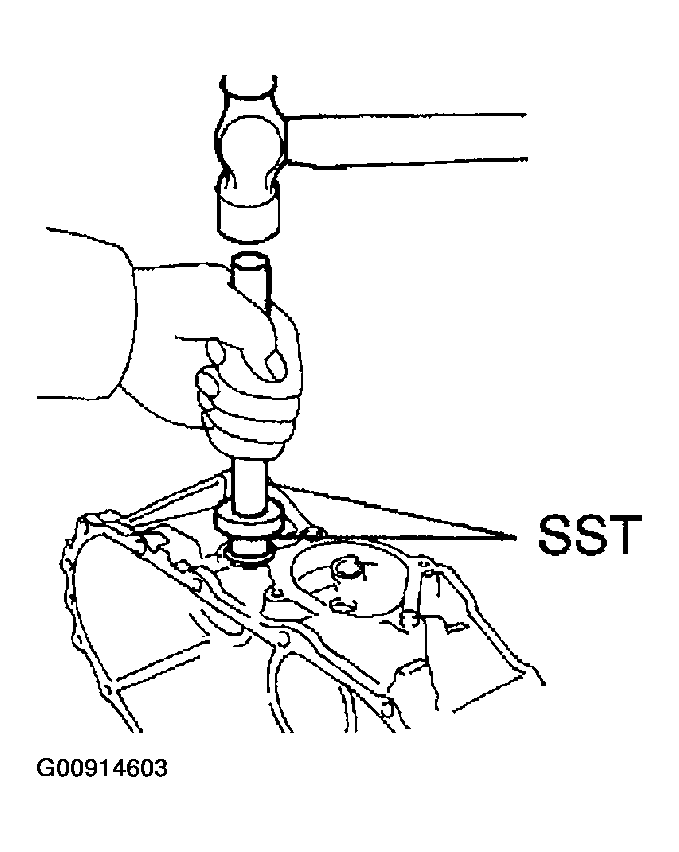

1. Using SST and a hammer, drive out the oil seal.
   1. SST 09316-60011 (09316-00011)
   Fig 20: Driving Out Oil Seal Using SST & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply MP grease to the lip of a new oil seal.
3. Using SST and a hammer, drive in a new oil seal.
   1. SST 09316-60011 (09316-00011, 09316-00031)

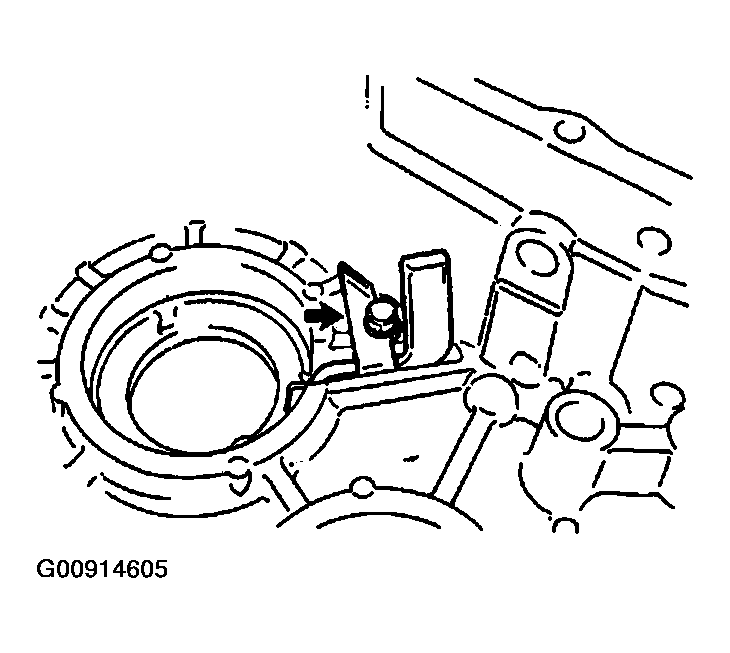

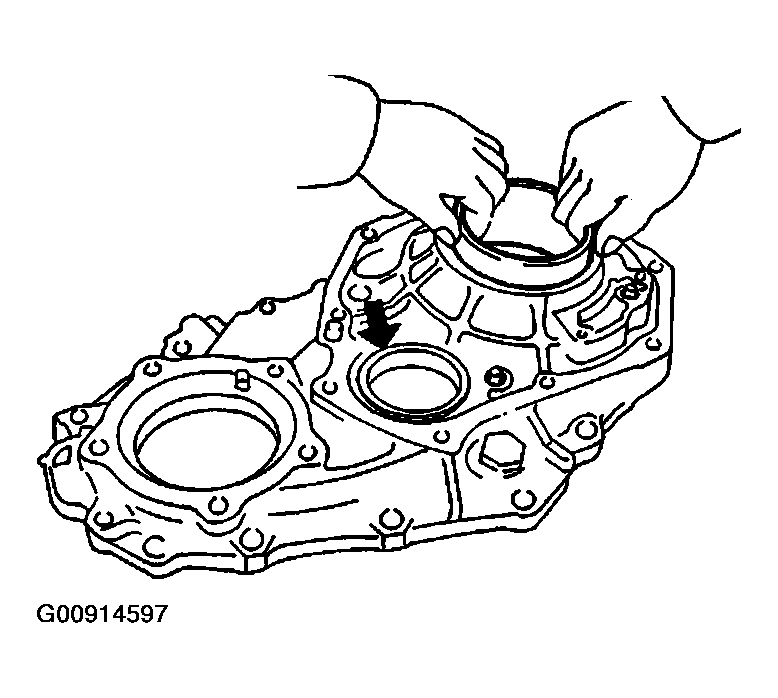

Remove the bolt and oil receiver.

Fig 21: Removing Oil Receiver From Front Case

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

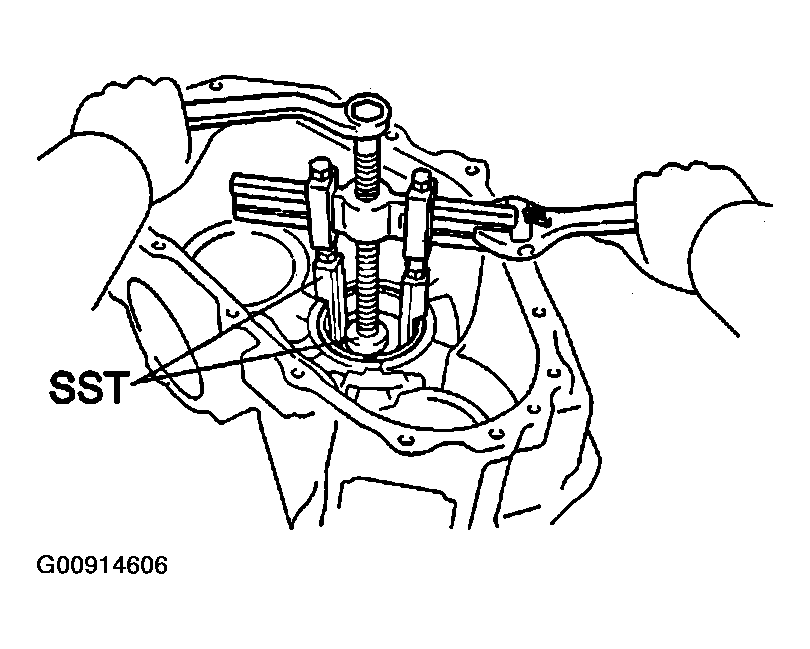

1. Using SST, remove the bearing race (for the idler gear).
   1. SST 09950-40011 (09951-04020, 09952-04010.
   2. 09953-04030, 09954-04010, 09955-04061
   3. 09957-04010), 09950-60010 (09951-00320)
   Fig 22: Removing Bearing Races For Idler Gear Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

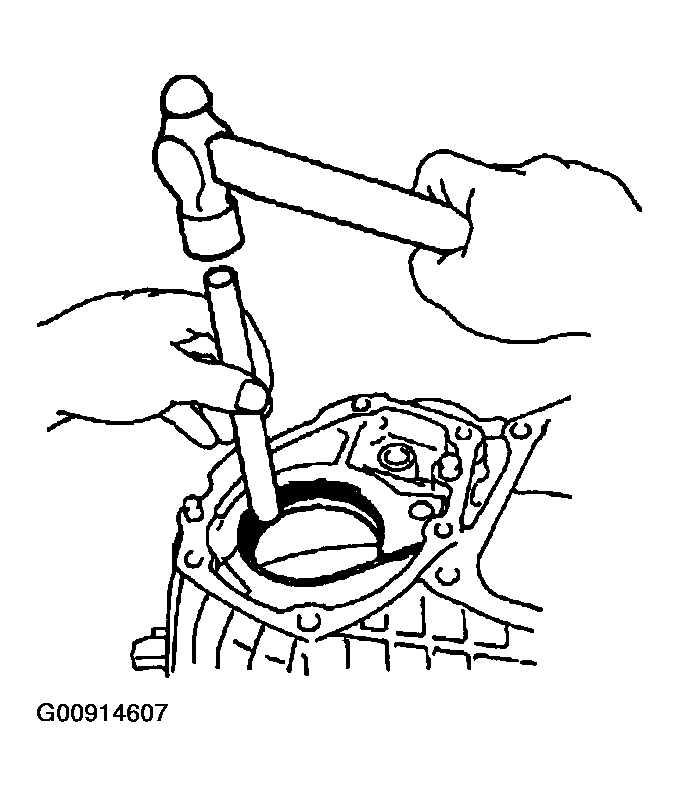

2. Using a brass bar and hammer, remove the bearing race (for the output shaft).
   Fig 23: Removing Bearing Race For Output Shaft Using Brass Bar & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
