2004 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Center Differential: Disassembly

  1. INSPECT HIGH SPEED OUTPUT GEAR RADIAL AND THRUST CLEARANCE
    1. Using a feeler gauge, measure the high speed output gear thrust clearance.
      1. Standard clearance: 0.10 - 0.25 mm (0.0039 - 0.0098 in.)
      2. Maximum clearance: 0.25 mm (0.0098 in.)

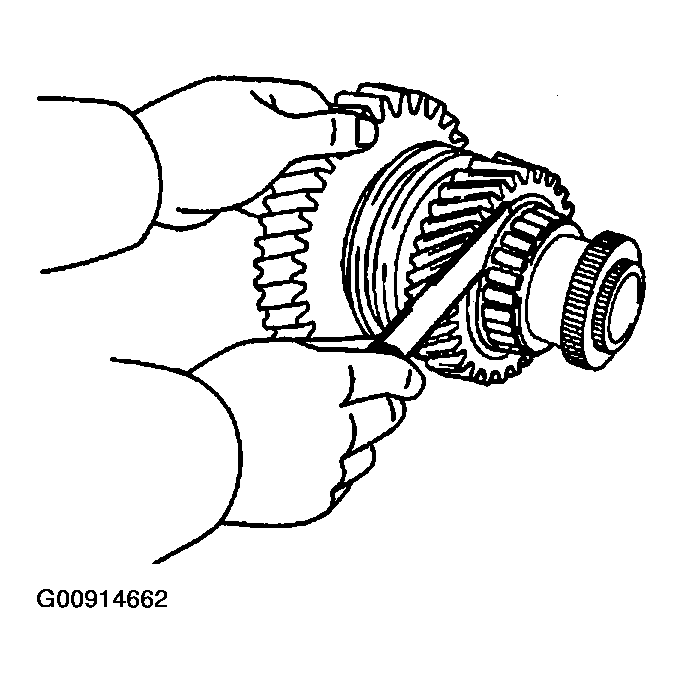

      Fig 1: Measuring High Speed Output Gear Thrust Clearance Using Feeler Gauge
      G00914662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a dial indicator, measure the high speed output gear radial clearance.
      1. Standard clearance: 0.035 - 0.091 mm (0.00138 - 0.00358 in.)
      2. Maximum clearance: 0.091 mm (0.00358 in.)

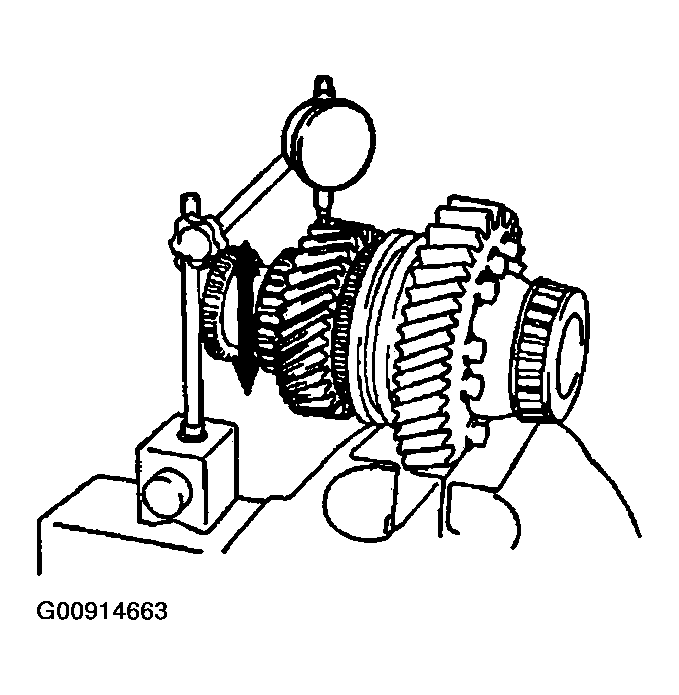

      Fig 2: Measuring High Speed Output Gear Radial Clearance Using Dial Indicator
      G00914663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DRIVE GEAR PIECE
    1. Using a snap ring expander, remove the snap ring.
    2. Using SST and a press, remove the front drive gear piece.
      1. SST 09950-00020, 09950-60010 (09951-00320)
      NOTE: Be careful not to drop the center differential assembly.
