Ignition Coils: Removal
- REMOVE V-BANK COVER
- REMOVE INTAKE AIR CONNECTOR
- DISCONNECT ENGINE WIRE FROM LH CYLINDER HEAD COVER
Disconnect the 2 wire clamps and engine wire.
- DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS

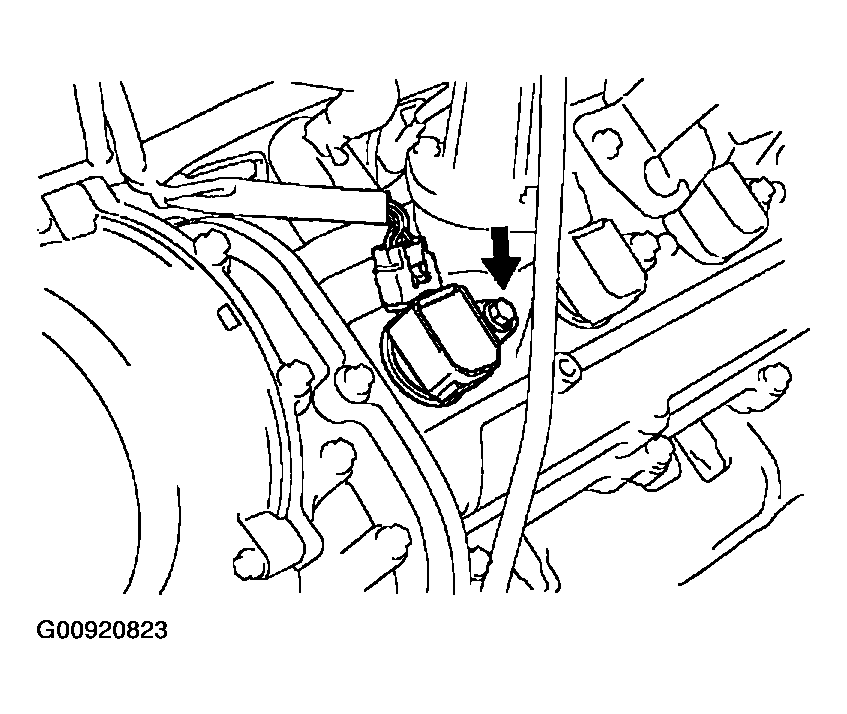

- REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).
- Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
