2004 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature (ECT) Sensor: Inspection

  1. DRAIN ENGINE COOLANT
  2. REMOVE V-BANK COVER
  3. REMOVE INTAKE AIR CONNECTOR
  4. DISCONNECT THROTTLE BODY FROM INTAKE MANIFOLDS (See  REMOVAL  )
  5. REMOVE ECT SENSOR
    1. Disconnect the ECT sensor connector.
    2. Remove the ECT sensor and the gasket.

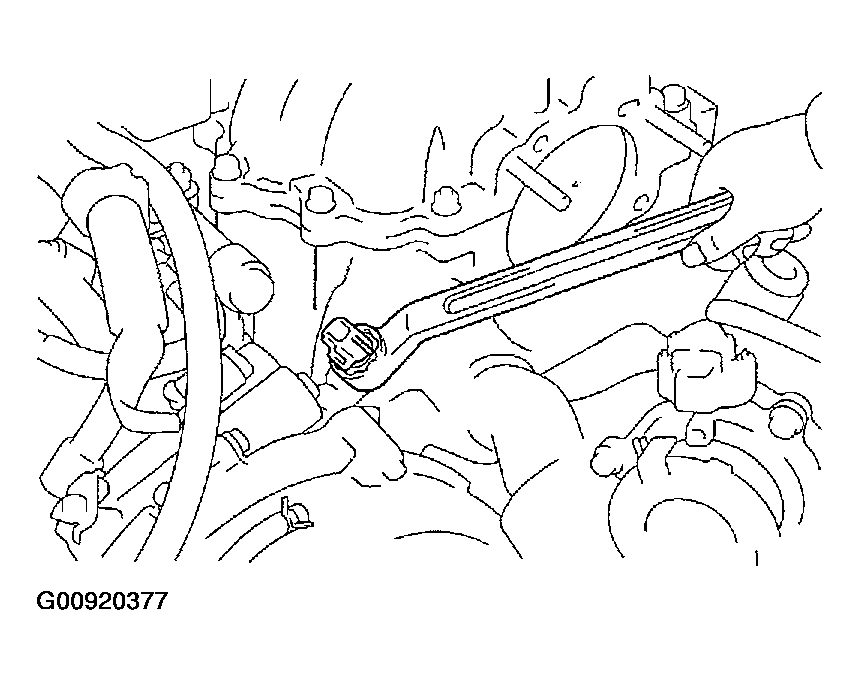

    Fig 1: Removing ECT Sensor & Gasket
    G00920377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT ECT SENSOR

    Using an ohmmeter, measure the resistance between the terminals.

    1. Resistance: Refer to  Fig 2

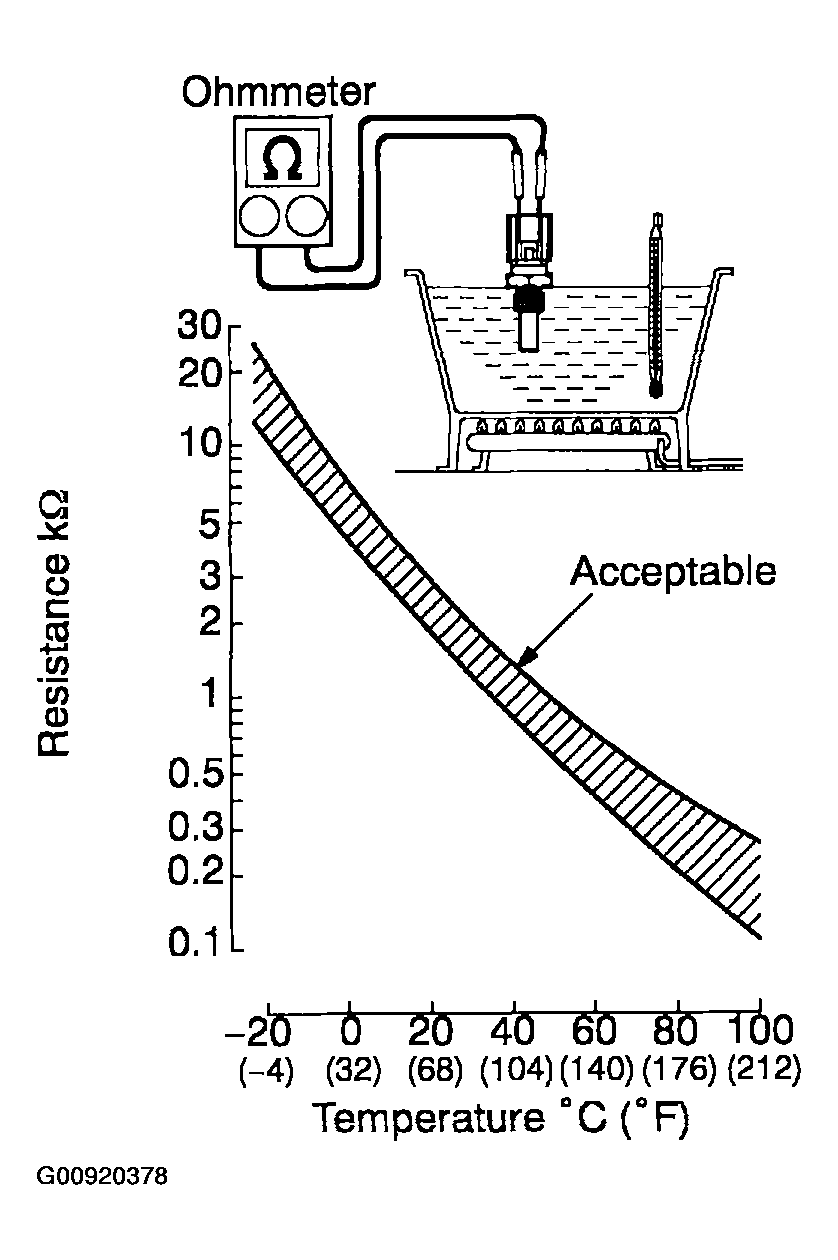

      Fig 2: ECT Sensor Resistance/Temperature Graph
      G00920378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the resistance is not as specified, replace the ECT sensor.

  7. REINSTALL ECT SENSOR
    1. Install a new gasket and the ECT sensor.
      1. Torque: 19.6 N.m (200 kgf.cm, 14 ft.lbf)
    2. Connect the ECT sensor connector.
  8. REINSTALL THROTTLE BODY TO INTAKE MANIFOLDS

    Install a new gasket and the throttle body with the 2 bolts and 2 nuts.

    1. Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
  9. REINSTALL INTAKE AIR CONNECTOR
  10. REFILL WITH ENGINE COOLANT (See  REPLACEMENT  )
  11. REINSTALL V-BANK COVER
