Cylinder Block: Replacement

HINT:

• Bore all the 8 cylinders to the oversized piston outside diameter.
• Replace all the piston rings with the ones to match the oversized pistons.

1. Keep 8 new O/S pistons.
   1. O/S 0.50 piston diameter: 94.402 - 94.430 mm (3.7166 - 3.7177 in.)

   HINT:

   The shape of the piston varies for the LH and RH banks. The LH piston is marked with "LH" and "2L", the RH piston with "RH" and "2R".

2. Using a micrometer, measure the piston diameter at right angles to the piston pin center line, 30.75 mm (1.2106 in.) from the piston head.

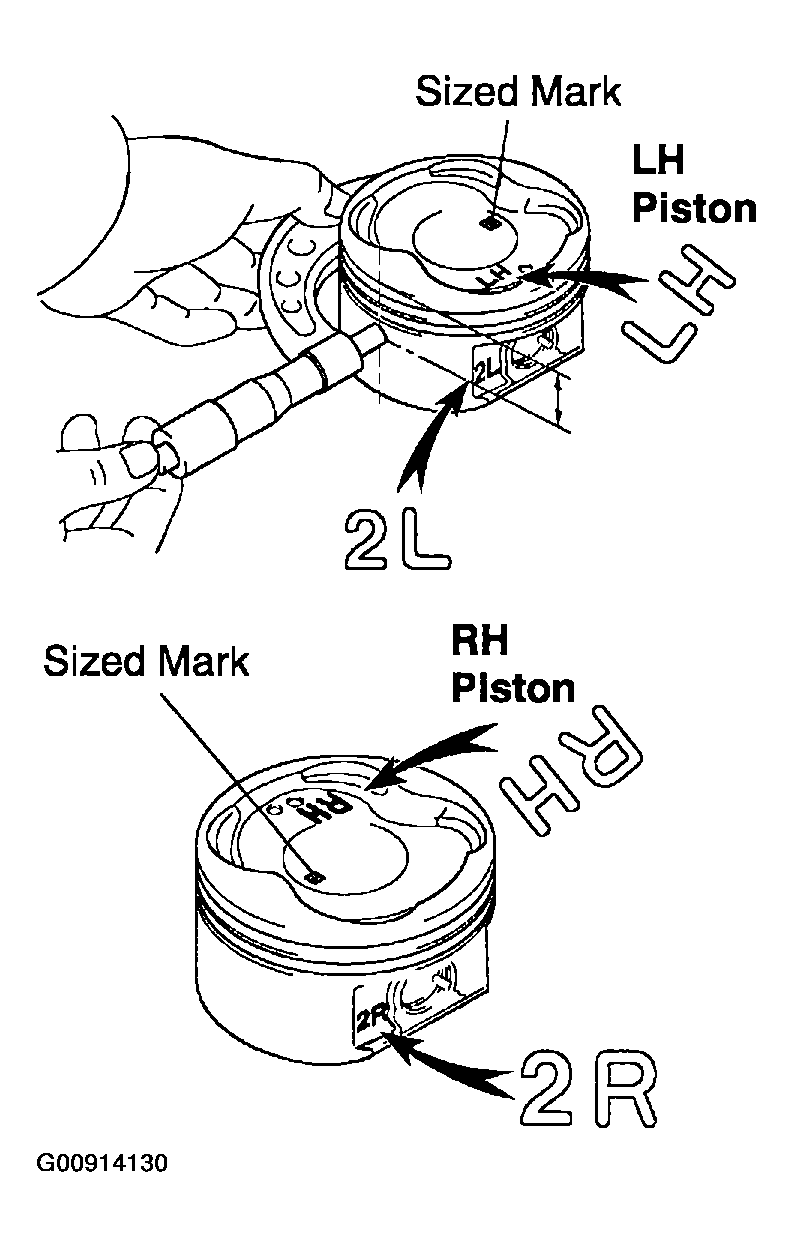

Fig 1: Measuring Piston Diameter At Right Angles To Piston Pin Center Line Using Micrometer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Calculate the amount for each cylinder to be rebored as follows:

   Size to be rebored = P + C - H

   P = Piston diameter

   1. C = Piston clearance: 0.090 - 0.111 mm (0.0035 - 0.0044 in.)
   2. H = Allowance for honing: 0.02 mm (0.0008 in.) or less
4. Bore and hone the cylinders to calculated dimensions.
   1. Maximum honing: 0.02 mm (0.0008 in.)

1. Using SST and a press, press out the bushing.
   1. SST 09222-30010

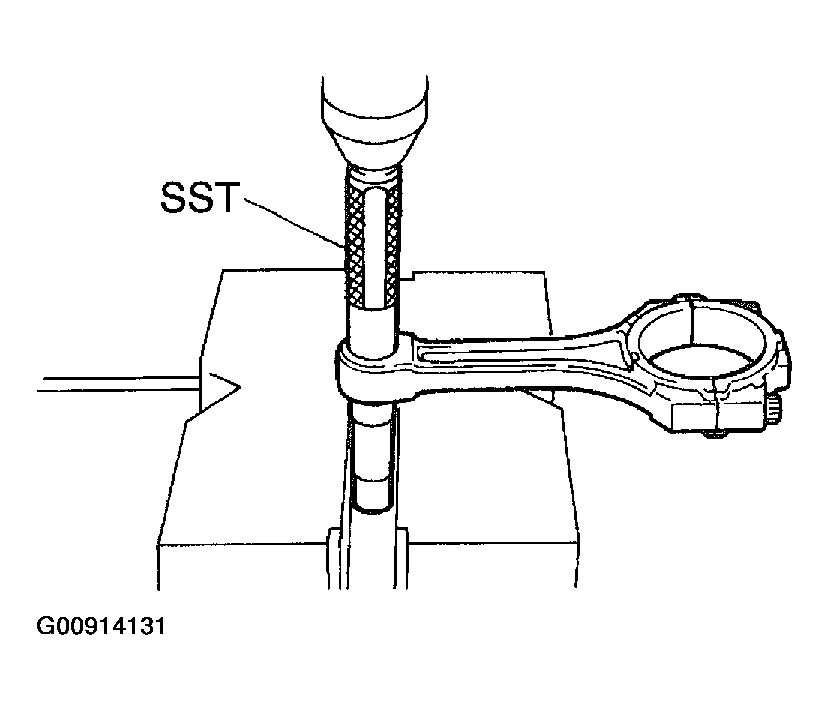

   Fig 2: Pressing Out Bushing Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the oil holes of a new bushing and the connecting rod.

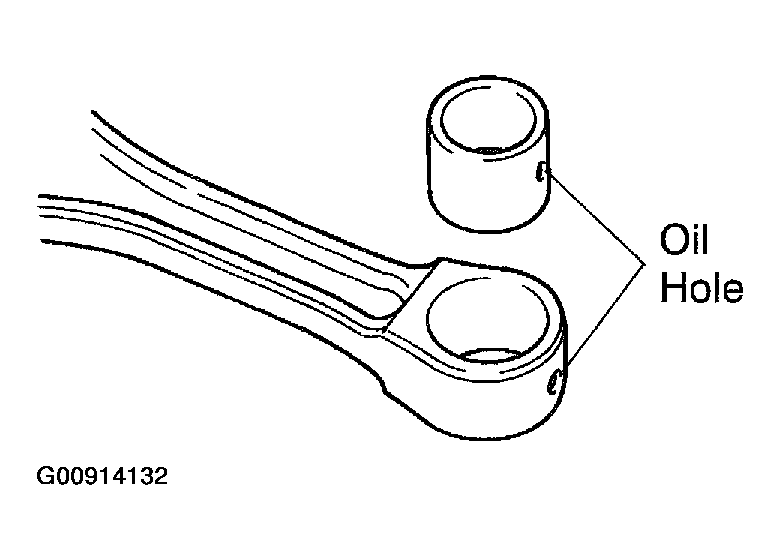

Fig 3: Locating Oil Holes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in the bushing.
   1. SST 09222-30010
4. Using a pin hole grinder, hone the bushing to obtain the standard specified clearance (See INSPECTION ) between the bushing and piston pin.

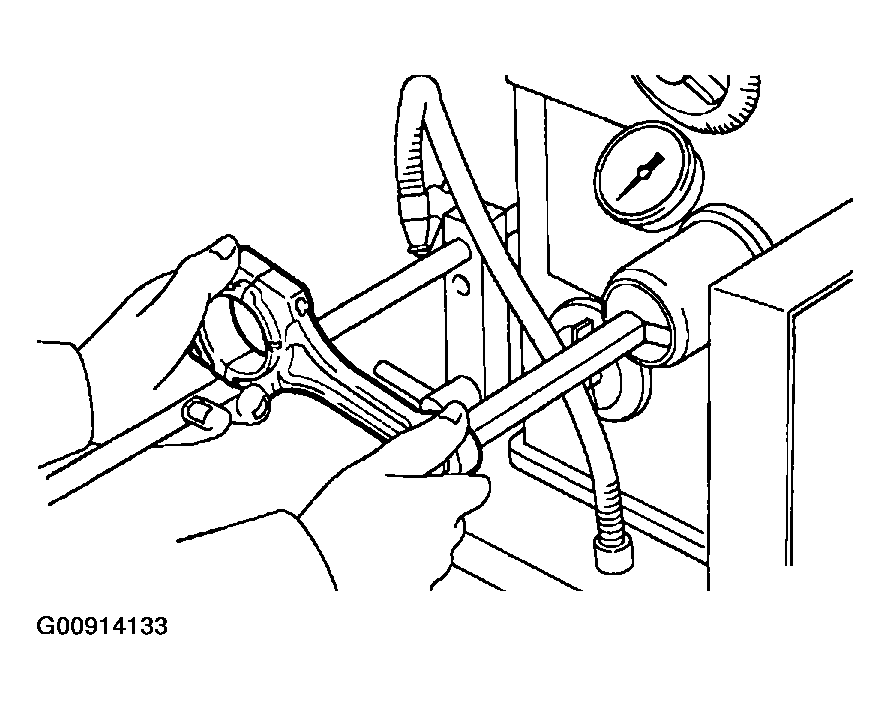

   Fig 4: Honing Bushing Using Pin Hole Grinder

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check the piston pin fit at normal room temperature. Coat the piston pin with engine oil, and push it into the connecting rod with your thumb.

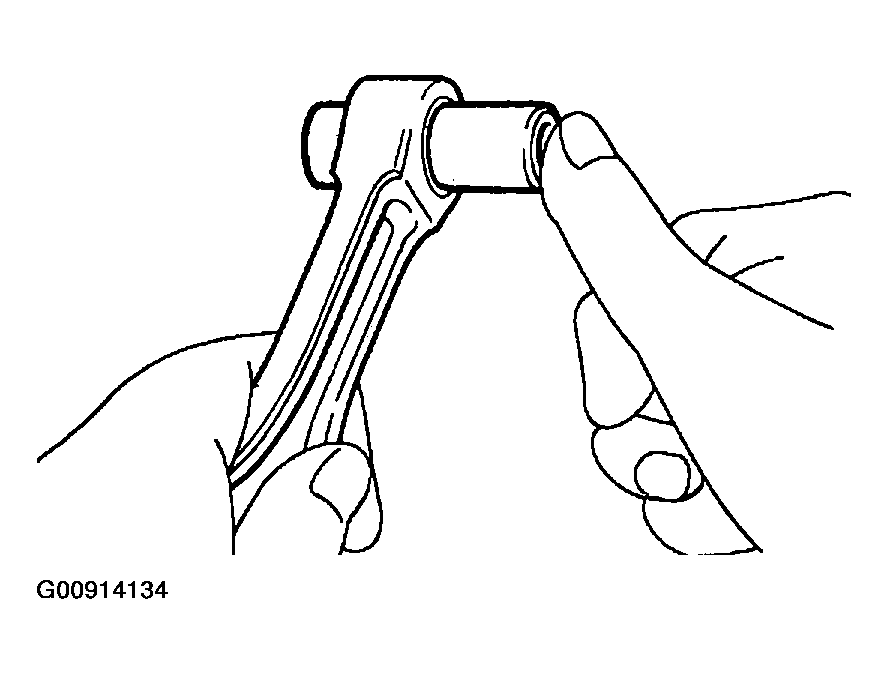

Fig 5: Checking Piston Pin Fit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

There are 2 methods ( a and  b) to replace the oil seal.

1. If the oil pump is removed from the cylinder block:
   1. Using a screwdriver, pry out the oil seal.

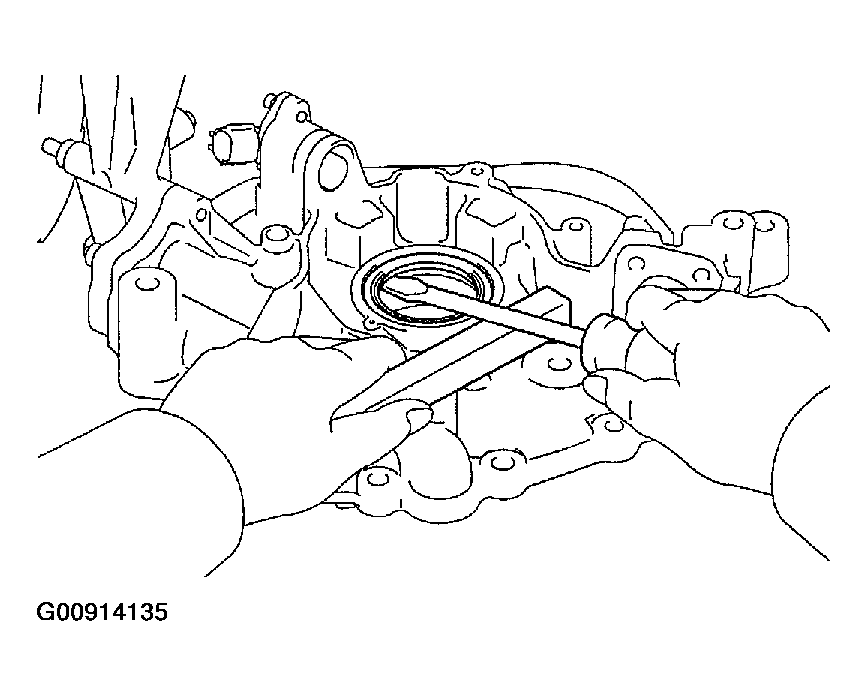

      Fig 6: Prying Out Crankshaft Front Oil Seal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.

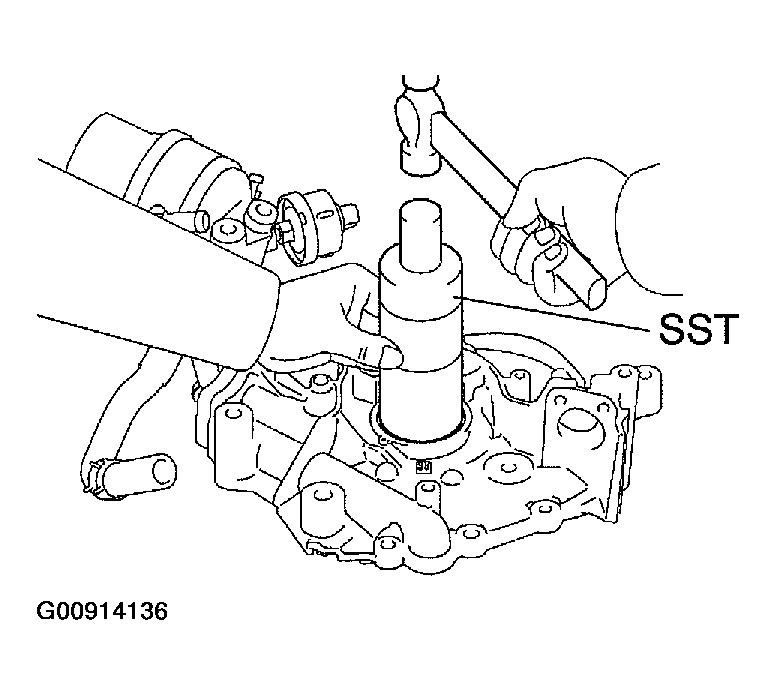

      Fig 7: Tapping In Oil Seal Using SST & Hammer

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. SST 09316-60011 (09316-00011)
   3. Apply MP grease to the oil seal lip.
2. If the oil pump is installed to the cylinder block:

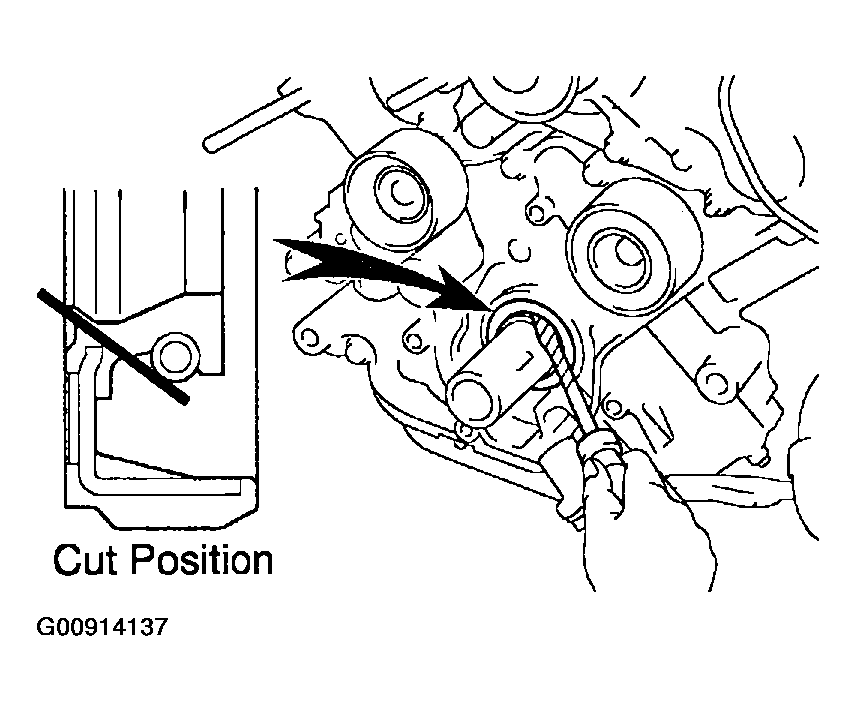

   1. Using a knife, cut off the oil seal lip.
   2. Using a screwdriver, pry out the oil seal.
      Fig 8: Prying Out Oil Seal Using Screwdriver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
