2004 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Cylinder Block: Reassembly

HINT:

Thoroughly clean all parts to be assembled.
Before installing the parts, apply new engine oil to all sliding and rotating surfaces.
Replace all gaskets, O-rings and oil seals with new parts.

ASSEMBLE PISTON AND CONNECTING ROD
1. Using a small screwdriver, install a new snap ring on one side of the piston pin hole.

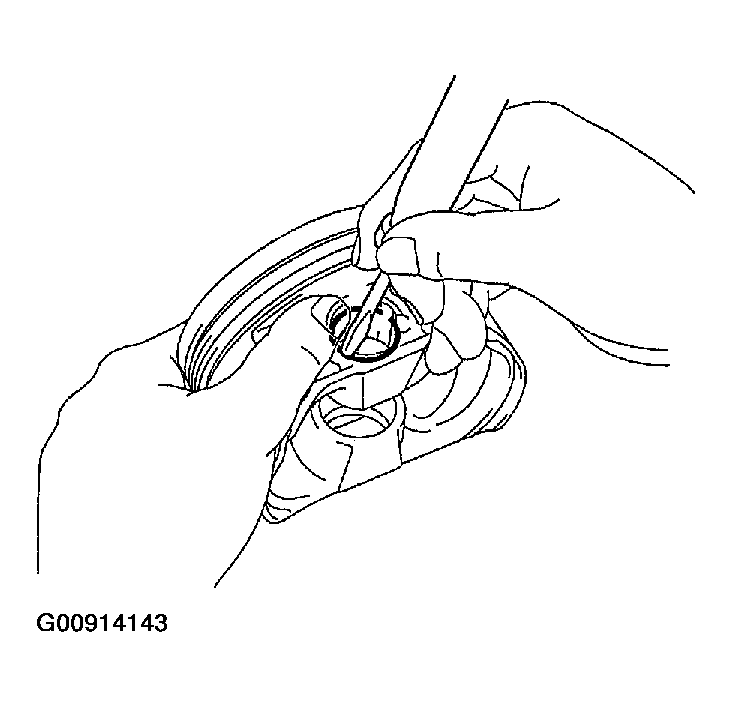

  Fig 1: Installing Snap Ring On Piston Pin Hole
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Gradually heat the piston to about 60°C (140°F).

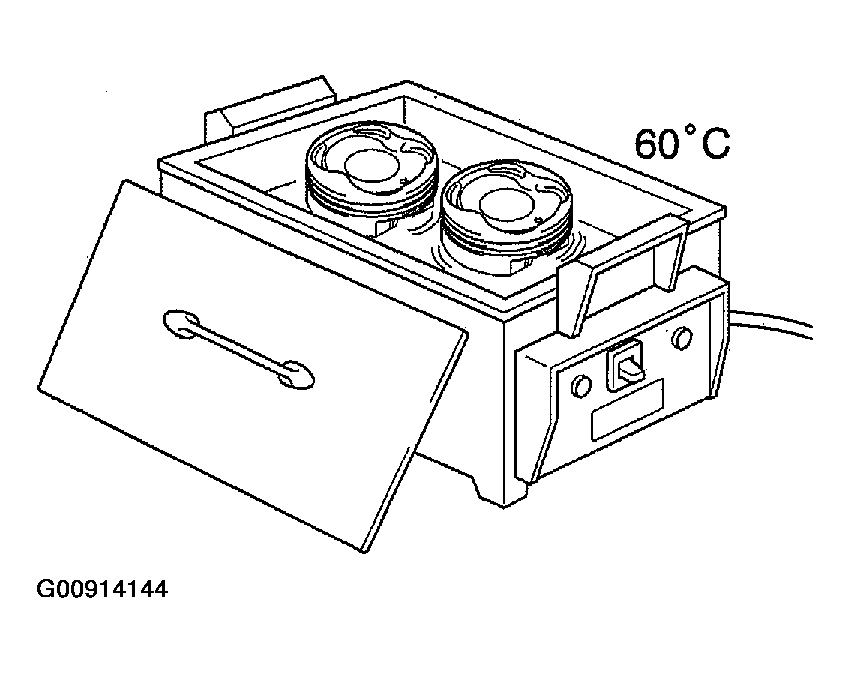

  Fig 2: Heating Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Coat the piston pin with engine oil.
4. Position the piston front mark to the outside mark on the connecting rod as shown in Fig 3 .

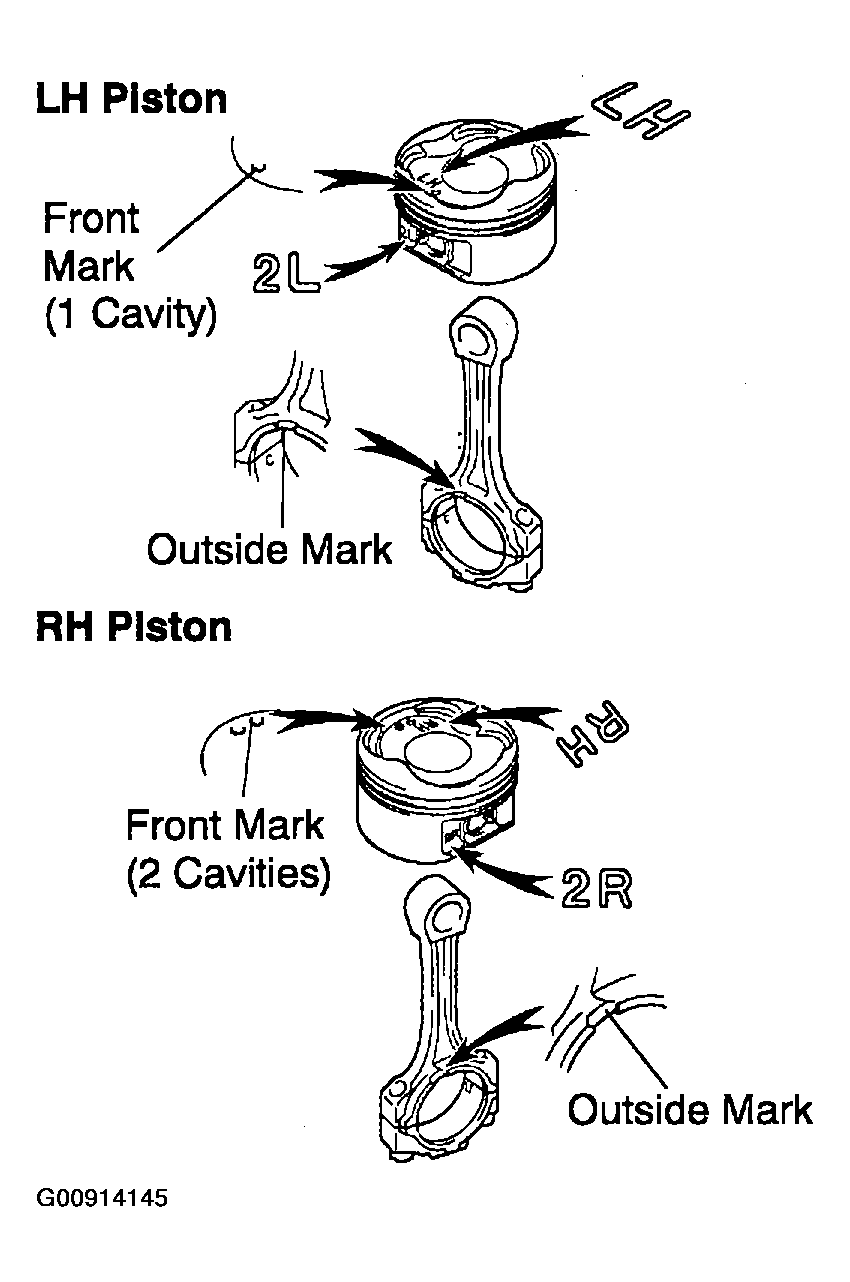

  Fig 3: Identifying Piston Components
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
