Engine Mechanical: Co/HC: Inspection
HINT:
This check is used only to determine whether or not the idle CO/HC complies with regulations.
- INITIAL CONDITIONS
- The engine is at normal operating temperature.
- Air cleaner is installed.
- All pipes and hoses of the air induction system are connected.
- All accessories are switched OFF.
- All vacuum lines are properly connected.
HINT:
All vacuum hoses should be properly connected.
- SFI system wiring connectors are fully plugged.
- Ignition timing is set correctly.
- Transmission is in neutral range.
- Tachometer and CO/HC meter are calibrated by hand.
- START ENGINE
- RACE ENGINE AT 2,500 RPM FOR APPROX. 180 SECONDS

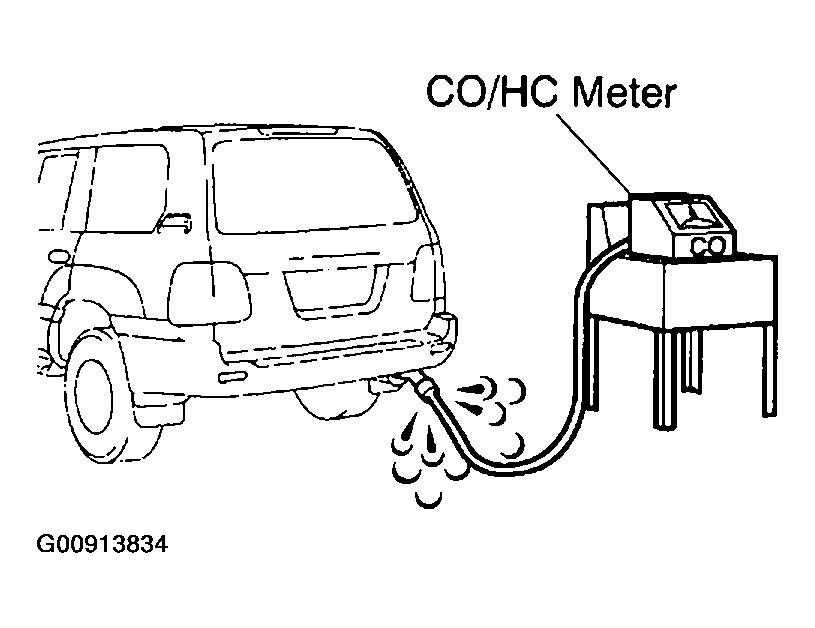

- INSERT CO/HC METER TESTING PROBE AT LEAST 40 cm (1.3 ft) INTO TAILPIPE DURING IDLING
- IMMEDIATELY CHECK CO/HC CONCENTRATION AT IDLE AND/OR 2,500 RPM
HINT:
When performing the 2 mode (2,500 RPM and idle) test, follow the measurement order prescribed by the applicable local regulations.
- TROUBLESHOOTING

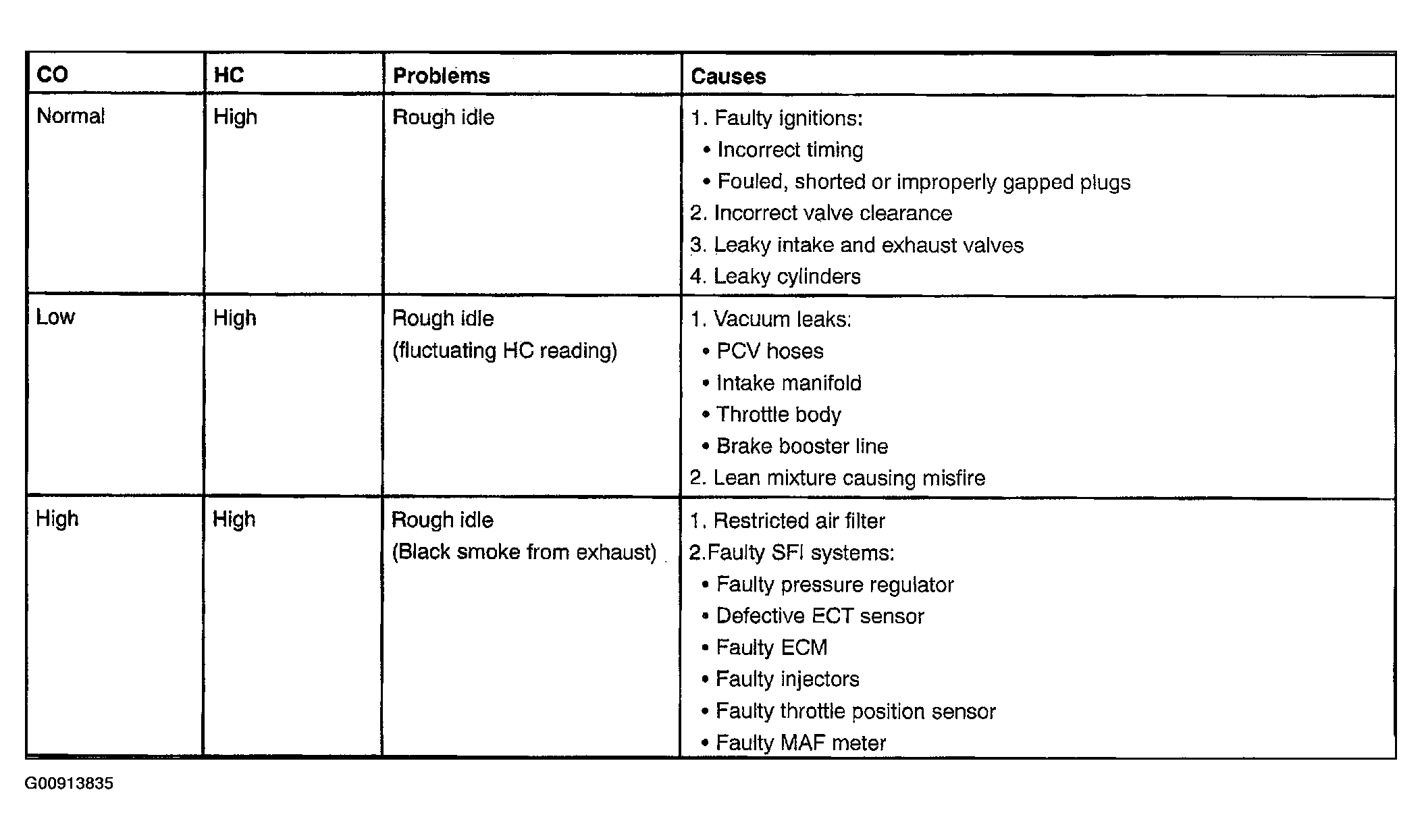

If the CO/HC concentration does not comply with the regulations, perform troubleshooting in the order in Fig 2 .
