Camshaft Position Sensor: Installation
- INSTALL CAMSHAFT POSITION SENSOR

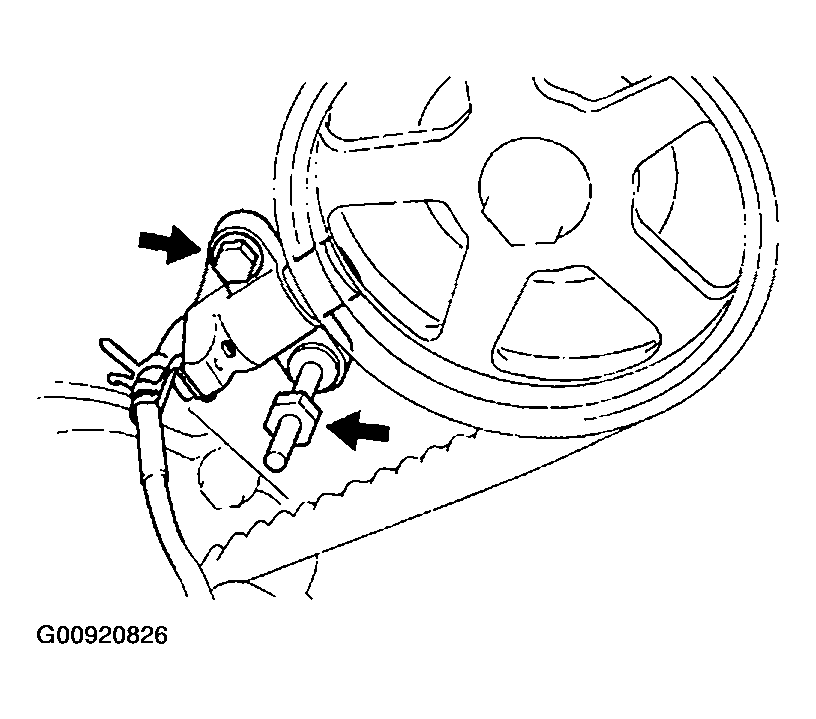

Install the camshaft position sensor with the bolt and stud bolt
- Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)
- INSTALL LH NO. 3 TIMING BELT COVER (See INSTALLATION )
- CONNECT RADIATOR HOSE
- INSTALL V-BANK COVER
- FILL ENGINE COOLANT (See REPLACEMENT )
- CHECK ENGINE COOLANT FOR LEAKS
- CHECK IGNITION TIMING (See INSPECTION )
