2004 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Ignition Timing: Inspection

  1. REMOVE BATTERY CLAMP COVER
  2. REMOVE INTAKE AIR CONNECTOR
  3. REMOVE V-BANK COVER
  4. WARM UP ENGINE

    Allow the engine to warm up to the normal operating temperature.

  5. CONNECT LEXUS HAND-HELD TESTER OR OBD II SCAN TOOL
    1. Connect the LEXUS hand-held tester or OBD II scan tool to the DLC3.
    2. Please refer to the hand-held tester or OBD II scan tool operator's manual for further details.

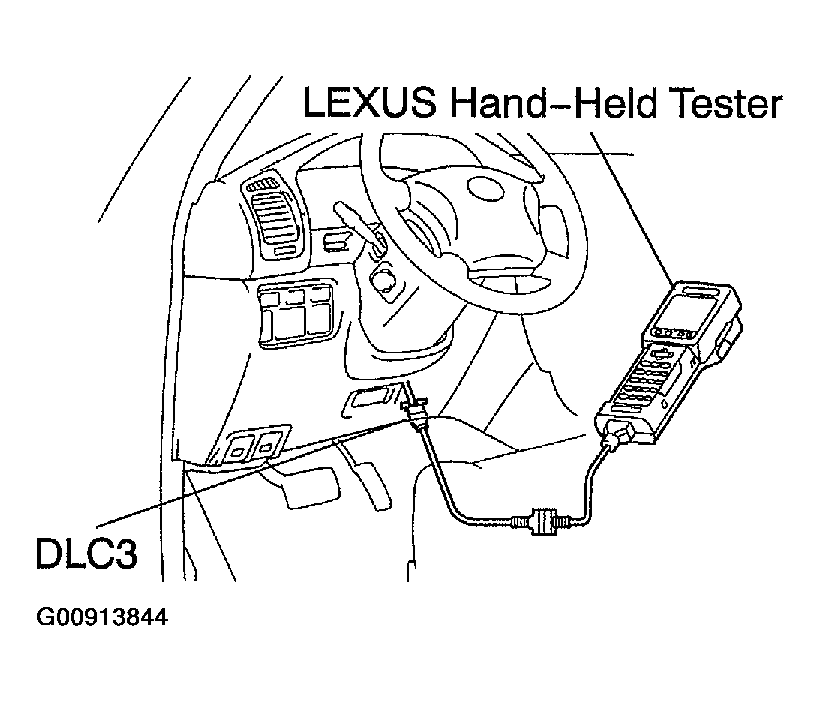

    Fig 1: Connecting LEXUS Hand-Held Tester To DLC3
    G00913844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT TIMING LIGHT TO ENGINE

    Connect the tester probe of a timing light to the wire of the ignition coil connector for No. 1 cylinder.

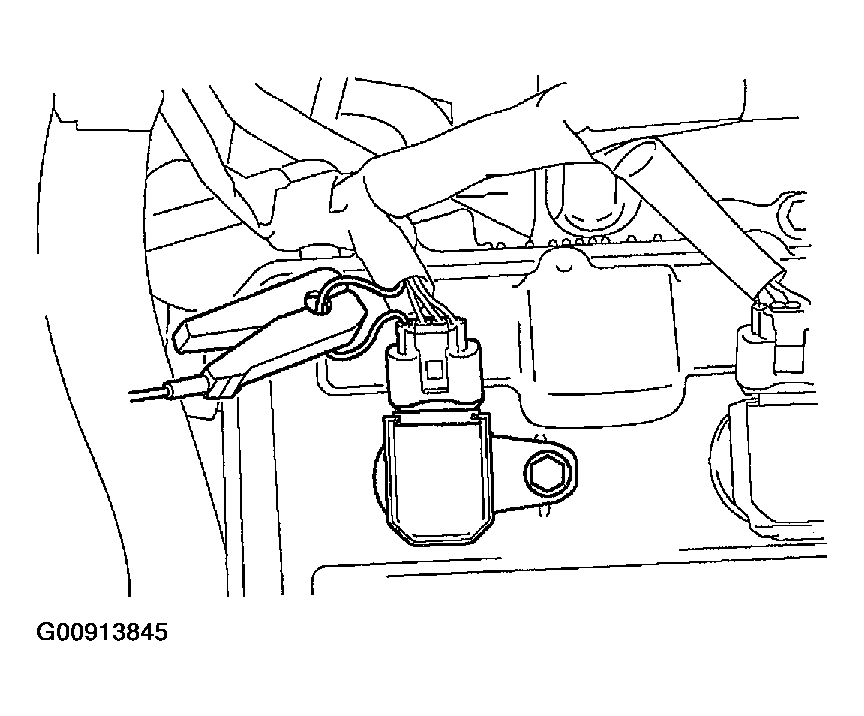

    Fig 2: Connecting Tester Probe Of Timing Light To Wire Of Ignition Coil Connector
    G00913845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CHECK IDLE SPEED
    1. Race the engine speed at 2,500 rpm for approx. 90 seconds.
    2. Check the idle speed.
      1. Idle speed:
      2. 700 +/- 50 rpm
  8. INSPECT IGNITION TIMING
    1. Using SST, connect TC and E1 of the DLC1.
      1. SST 09843-18020

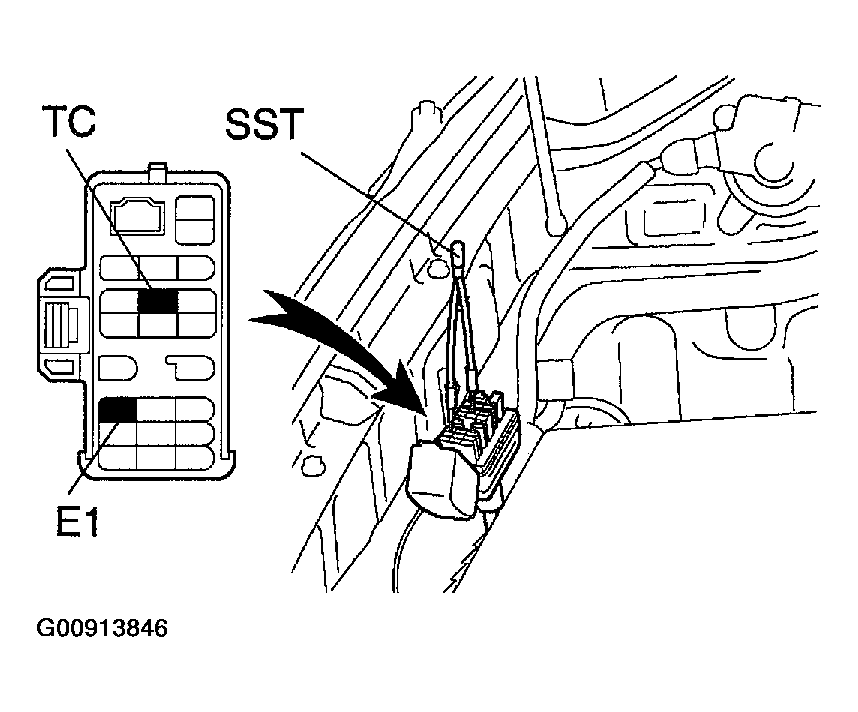

      Fig 3: Connecting TC & E1 Of DLC1 Using SST
      G00913846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a timing light, check the ignition timing.
      1. Ignition timing: 5 - 15° BTDC @ idle (Transmission in neutral position)

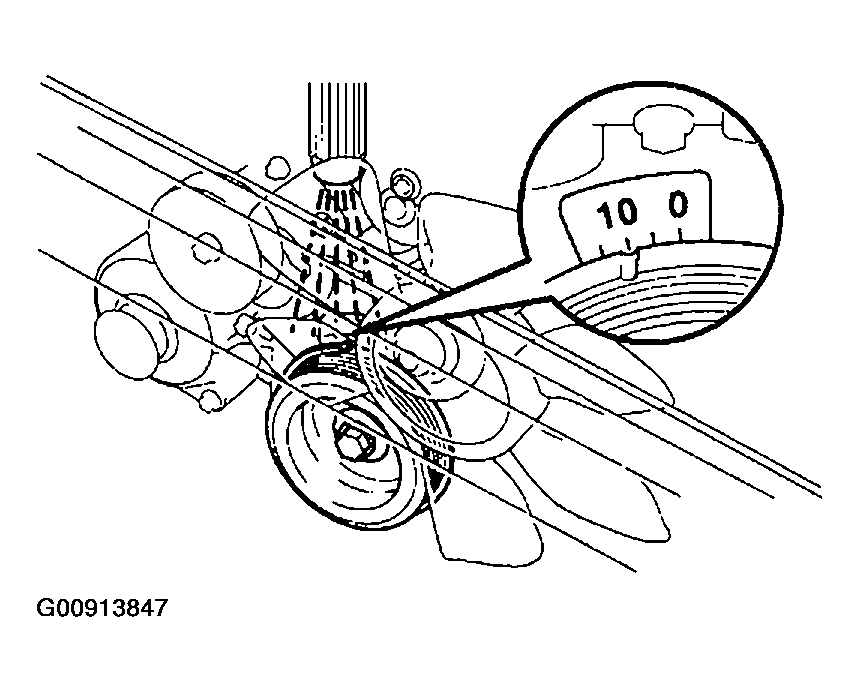

      Fig 4: Checking Ignition Timing Using Timing Light
      G00913847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove SST from the DLC1.
      1. SST 09843-18020
  9. DISCONNECT TIMING LIGHT FROM ENGINE
  10. DISCONNECT LEXUS HAND-HELD TESTER OR OBD II SCAN TOOL
  11. REINSTALL V-BANK COVER
  12. REINSTALL INTAKE AIR CONNECTOR
  13. REINSTALL BATTERY CLAMP COVER
