2004 Lexus LS 430FACTORY OEM SERVICE PROCEDURE
Park/Neutral Position Switch
- Inspect park/neutral position switch assy:
- Apply parking brake and the turn ignition switch to the ON position.
- Depress brake pedal and check that the engine starts only when the shift lever is set in the N or P position, but does not start in other positions.
- Check that the back-up light comes on and the reverse warning buzzer sounds when the shift lever is set in the R position, but do not function in other positions. If a failure is found, check the park/neutral position switch for continuity. See DIAGNOSIS article.

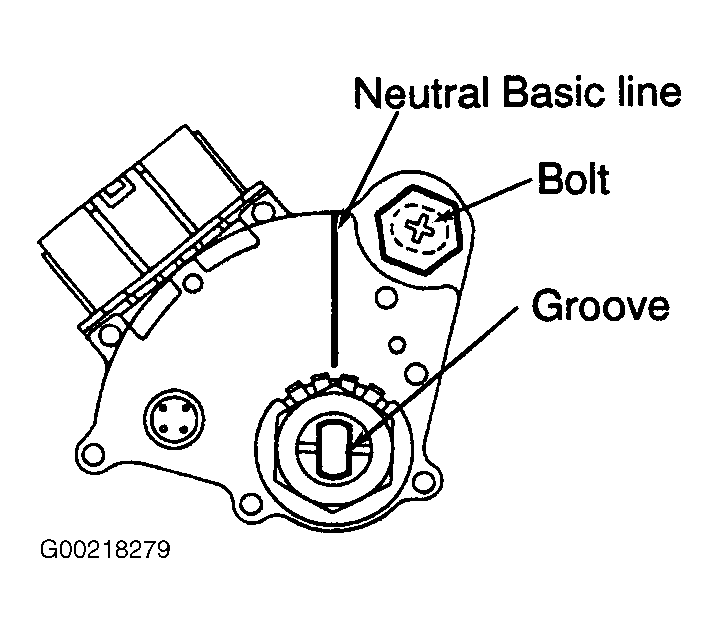

- Adjust park/neutral position switch assy. See Fig 1:
- Loosen the bolt of the park/neutral position switch and move the shift lever to the "N" position.
- Align the groove and the neutral basic line.
- Hold the switch in position and tighten the bolt to specification. See TORQUE SPECIFICATIONS .
- After adjustment, perform the Inspection described in step 1.
