2004 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Rear Wheel Alignment: Adjustment

  1. INSPECT TIRE (SEE  INSPECTION  )
  2. MEASURE VEHICLE HEIGHT (see  ON-VEHICLE INSPECTION  )
    NOTE: Before inspecting wheel alignment, adjust the vehicle height to the specified value.
  3. INSPECT TOE-IN

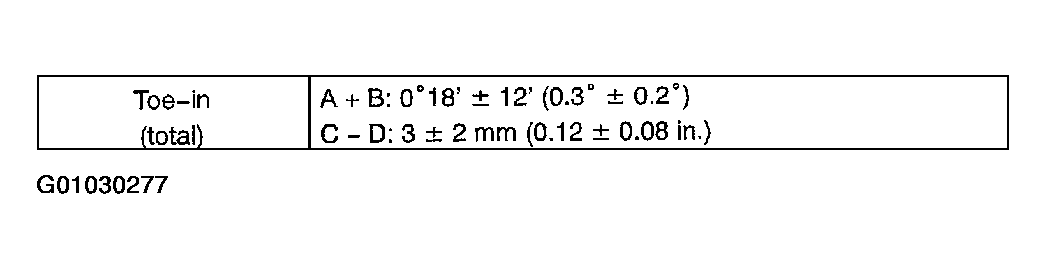

    Fig 1: Identifying Wheel Angle
    G01030277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the toe-in is not within the specified range, inspect the suspension parts and replace them if necessary.

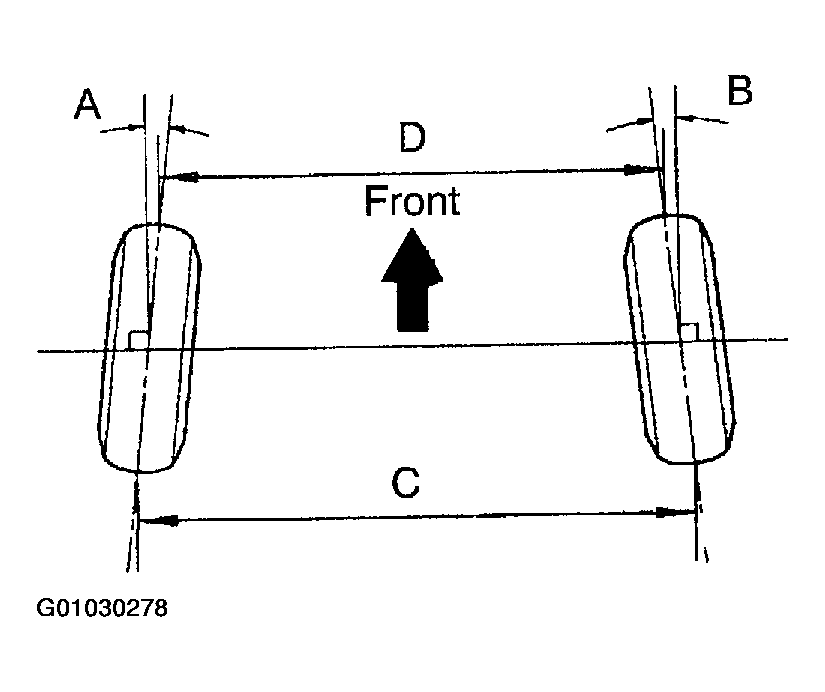

    Fig 2: Inspecting Toe-In
    G01030278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. ADJUST TOE-IN
    1. Loosen the toe adjust cam nut.

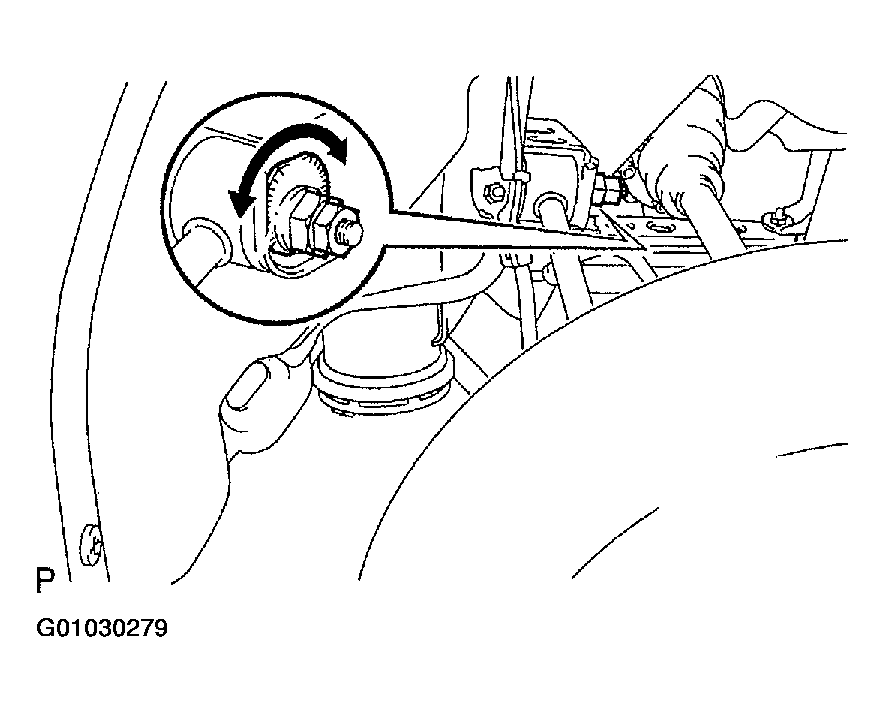

      Fig 3: Loosing Toe Adjust CAM Nut
      G01030279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the adjust cams by an equal amount to adjust toe-in.

      HINT:

      • Try to adjust the toe-in to the center value.
      • The toe-in will change by the following specifications corresponding to each graduation of the cam.

        Approx. 3.0 mm (0.12 in.)

    3. Tighten the nut.

      Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)

  5. INSPECT CAMBER

    Air suspension:

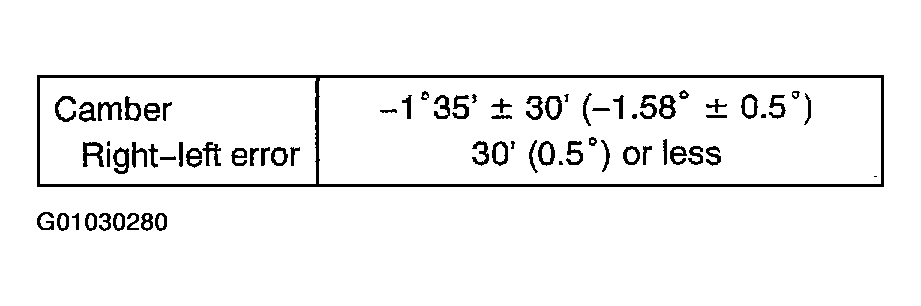

    Fig 4: Air Suspension Specification
    G01030280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Coil suspension:

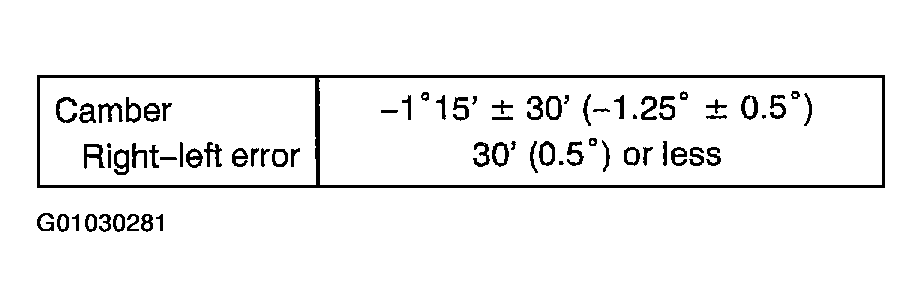

    Fig 5: Coil Suspension Specification
    G01030281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. ADJUST CAMBER
    1. Remove the rear suspension arm No. 2 (see ).
      Fig 6: Removing Rear Suspension Arm
      G01030282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. According to the figure Fig 7 below, select the rear suspension arm No. 2.

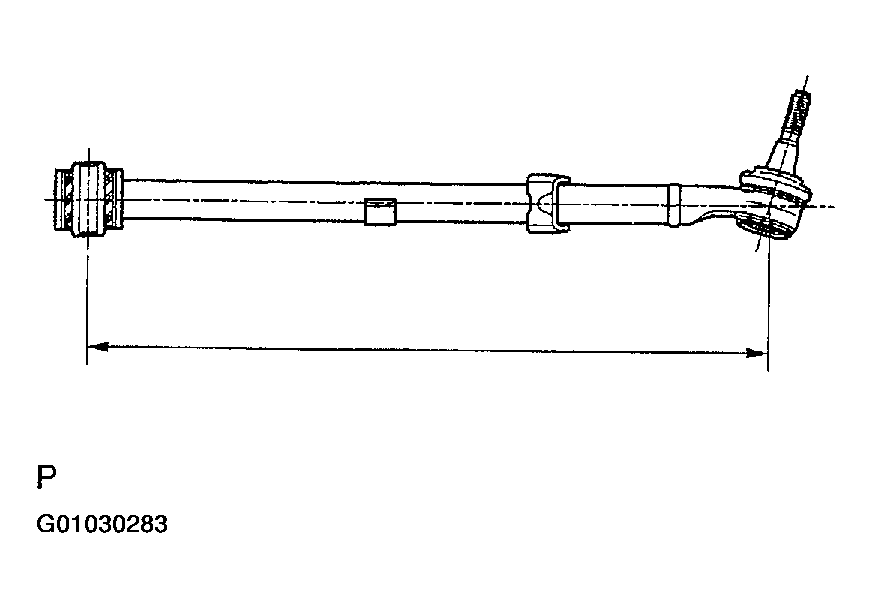

      Fig 7: Rear Suspension Arm Specification
      G01030283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear suspension arm No.2 (see HEIGHT CONTROL VALVE SUB-ASSY NO.2 ).
    4. Inspect toe-in.
