STEERING OFF CENTER REPAIR PROCEDURE
1. Inspect steering wheel off center.
  1. Apply masking tape on the top center of the steering wheel and steering column upper cover.
  2. Drive the vehicle in a straight line for 100 meters at a constant speed of 35 mph (56 km/h), and hold the steering wheel to maintain the course.

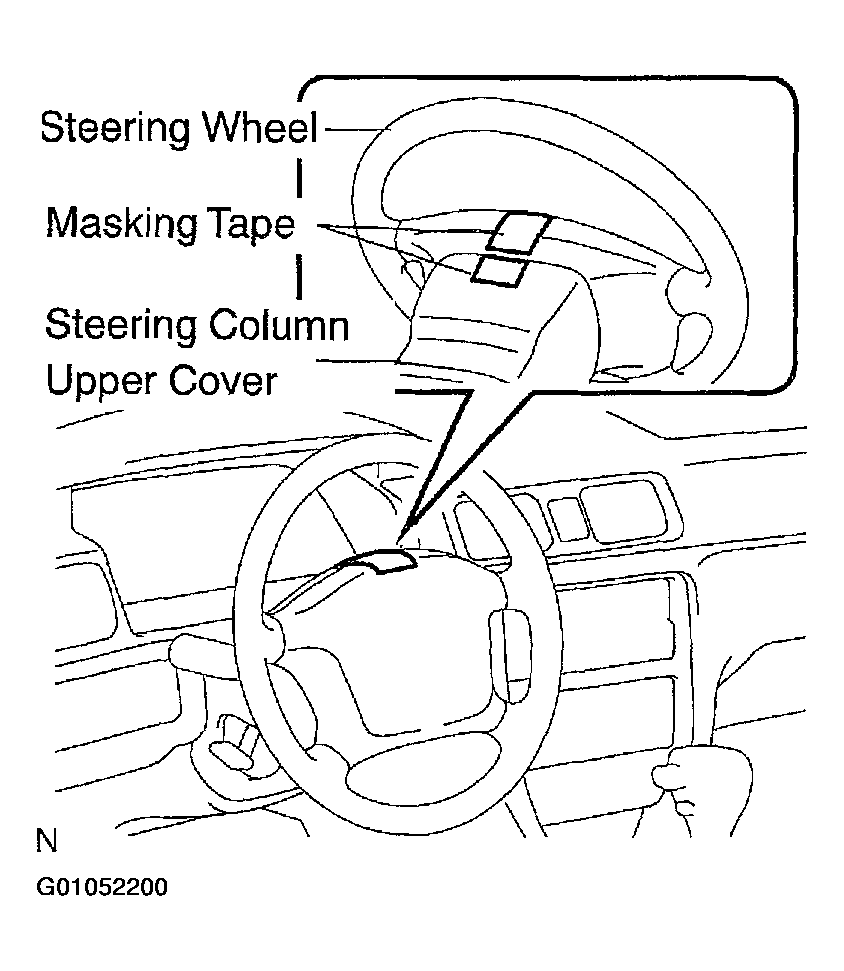

    Fig 1: Applying Masking Tape On Top Center Of Steering Wheel And Steering Column Upper Cover
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Draw a line on the masking tape as shown in the illustration.

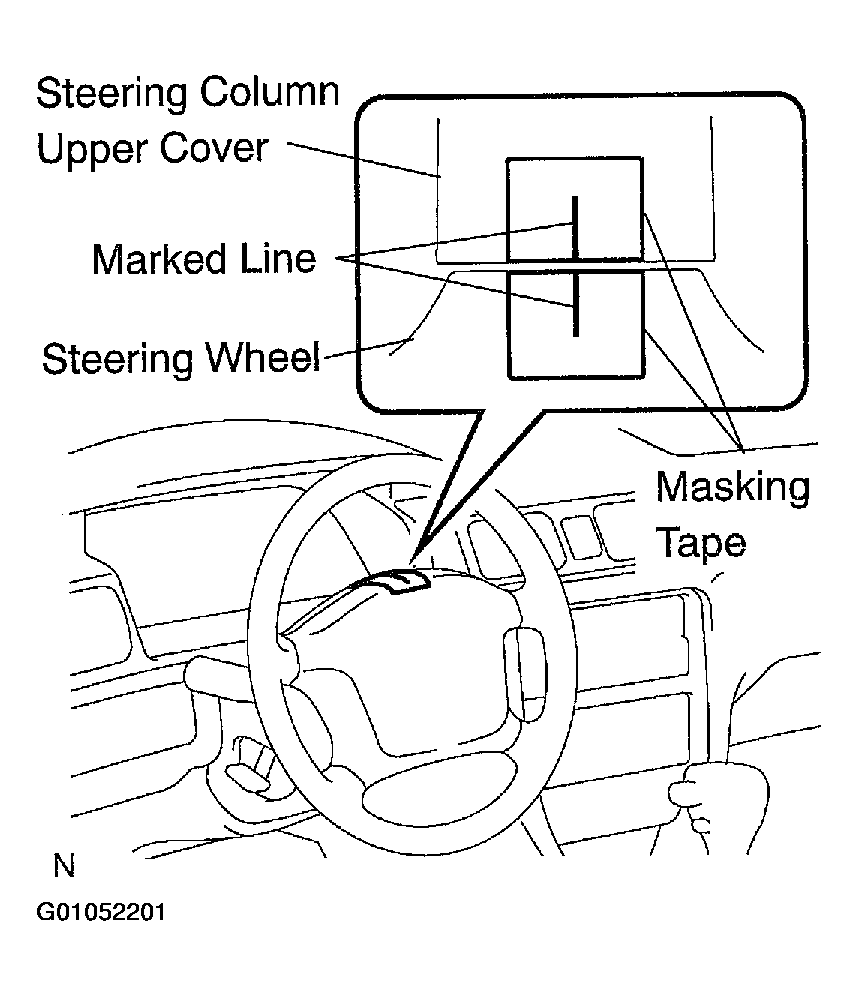

    Fig 2: Drawing Line On Masking Tape
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Turn the steering wheel to the center position.
    HINT:

    Lock at to the upper surface of the steering wheel, steering spoke and SRS airbag line for the center position.
  5. Draw a new line on the masking tape on the steering wheel as shown in the illustration.
  6. Measure the distance between the 2 lines on the masking tape on the steering wheel.

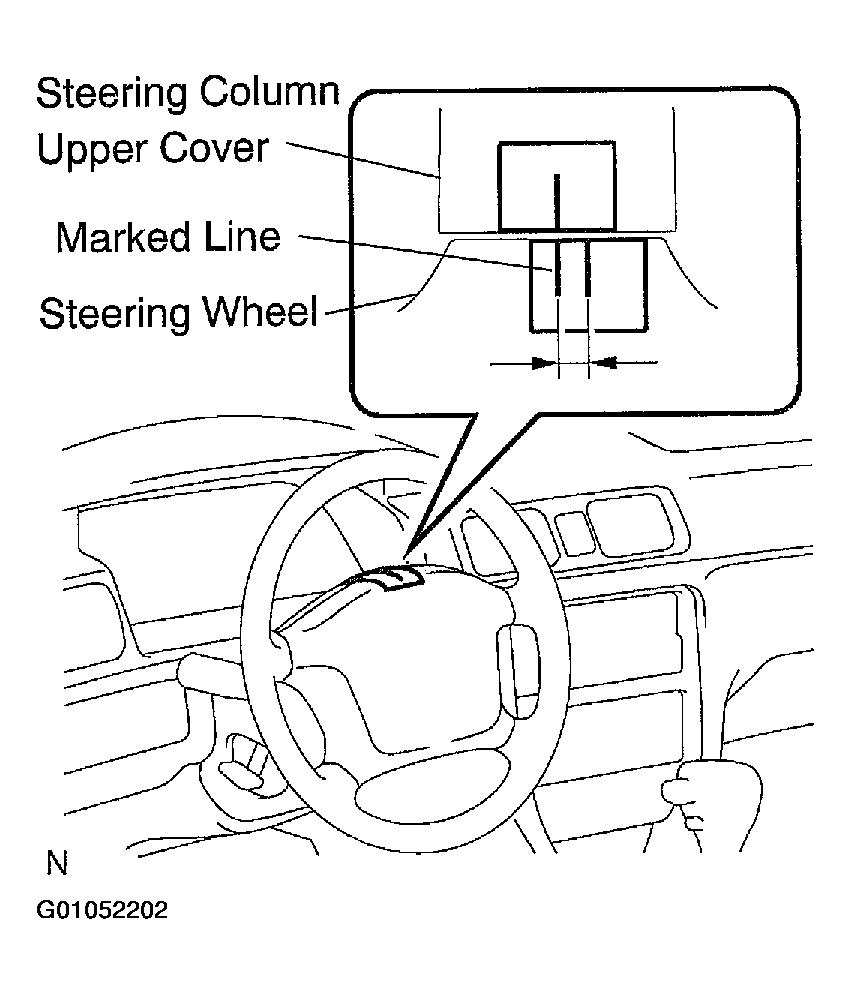

    Fig 3: Measuring Distance Between Lines On Masking Tape On Steering Wheel
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Convert the measured distance to steering angle.
    Measured distance 1 mm (0.04 in.) = Steering angle of approximately 1 degree.

    HINT:

    Make a note of the steering angle.
2. Adjust steering angle.
  1. Draw a line on the RH and LH tie rod ends and rack respectively ends where it can be easily seen.
  2. Using a paper gauge, measure the distance from the RH and LH tie rod ends to the rack end screws.
    HINT:
    - Measure both the RH and LH side
    - Make a note of the measured values.

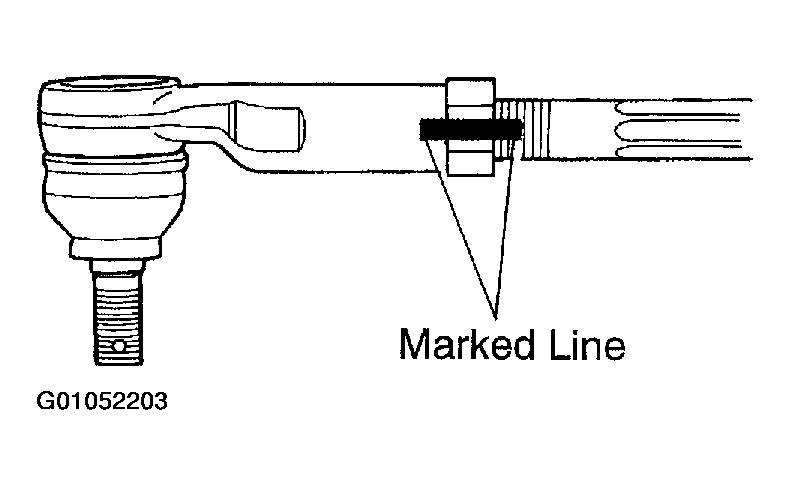

      Fig 4: Adjusting Steering Angle
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove the RH and LH boot clips from the rack boots.
  4. Loosen the RH and LH lock nuts.
  5. Turn the RH and LH rack ends by the same amount but in different directions according to the steering angle.
    One 360 degree turn of rack end (1.5 mm (0.059 in.) horizontal movement) equals to 12 degree of steering angle.
  6. Tighten the RH and LH lock nuts by the specified torque.
    Torque: 74 N.m (750 kgf.cm, 54 ft.lbf)

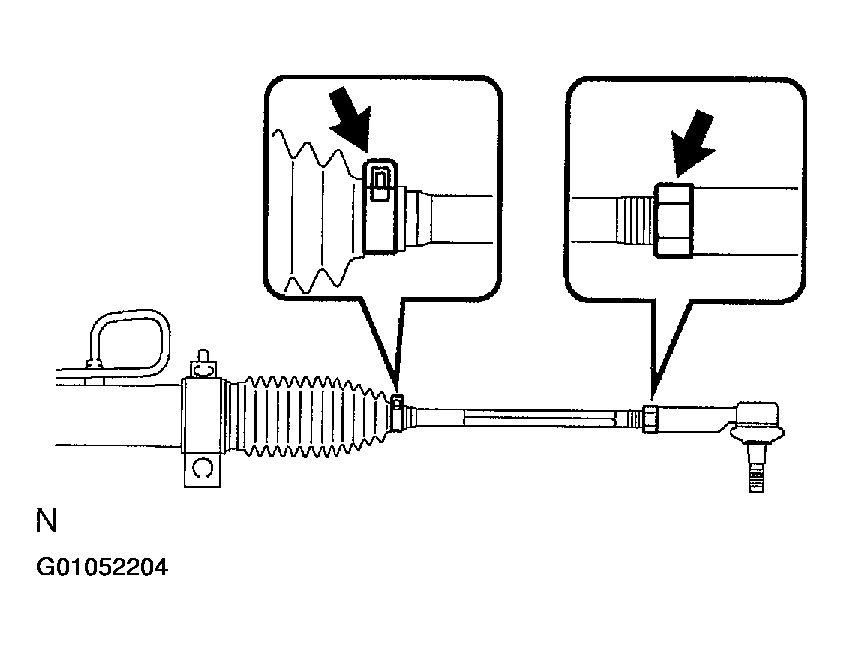

    Fig 5: Removing RH And LH Boot Clips From Rack Boots
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
