For Vehicles Equipped With Traction Control (TRAC) System
When testing with a 2-wheel drum tester such as a speedometer tester, a combination tester of the speedometer and bracket a chassis dynamometer, or when jacking up the front wheels and driving the wheels, always turn the TRAC system OFF beforehand via the TRAC OFF switch before testing.
- Confirm TRAC system is OFF

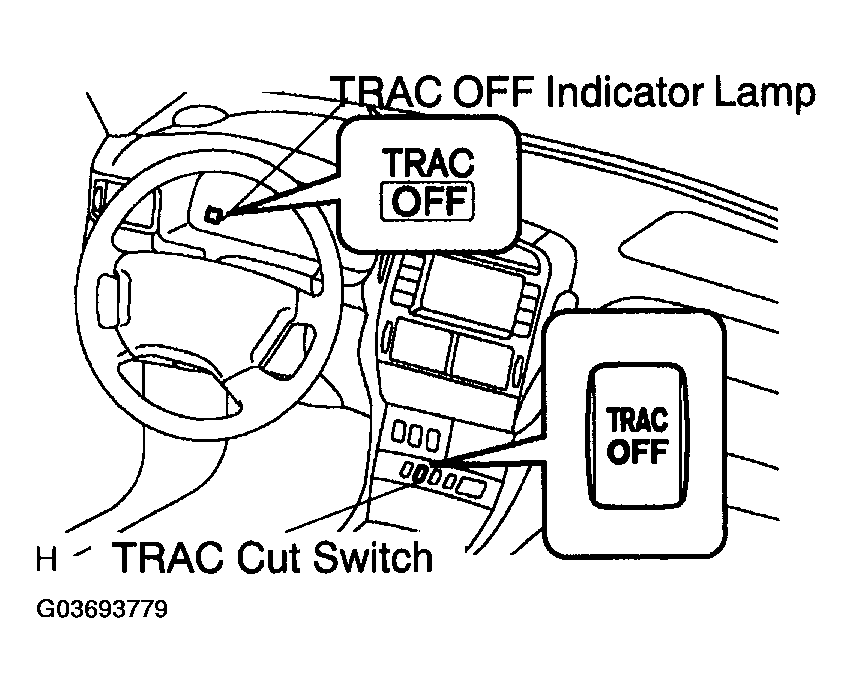

- Press the TRAC cut switch (TRAC OFF) to turn off the TRAC system.
- Check if the TRAC OFF indicator lamp illuminates.
HINT:

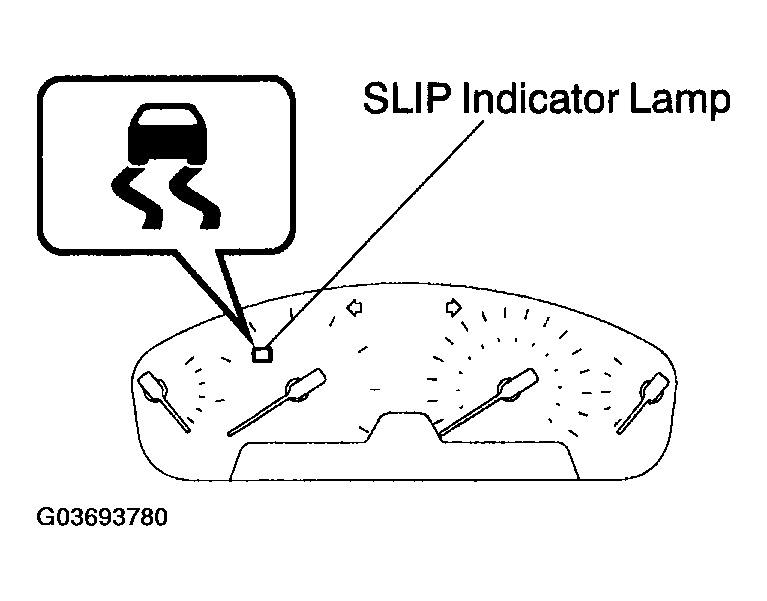

The SLIP indicator lamp should always operate right after the engine is restarted.
- Begin testing.
- Press the TRAC cut switch to turn on the TRAC system and check that the TRAC OFF indicator lamp turns off.
HINT:
The SLIP indicator lamp blinks when the TRAC system is operating.
