2004 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Basic Repair Hint: Fuses

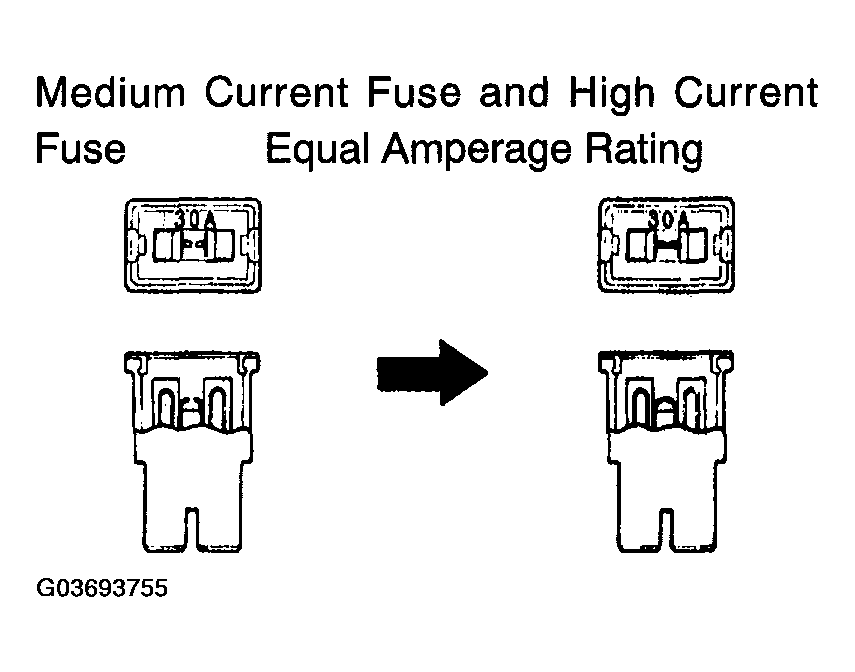

Fig 1: Identifying Fuses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

When replacing fuses, be sure that the new fuse has the correct amperage rating. DO NOT exceed the rating or use one with a lower rating.

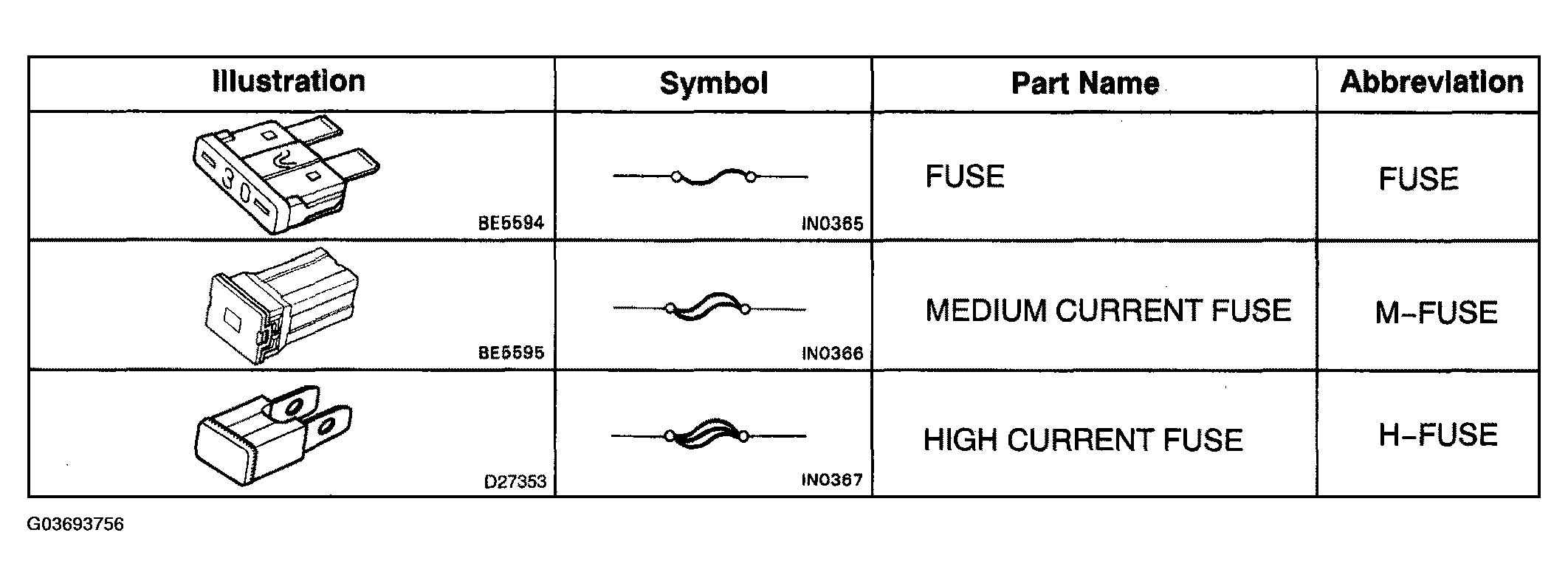

Fig 2: Fuses Symbol And Abbreviation Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
