2004 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Basic Inspection

  1. RESISTANCE MEASURING CONDITION OF ELECTRONIC PARTS
    1. Unless stated, all resistance is measured at an ambient temperature of 20°C (68°F). Resistances measured may be outside the specifications if measured at high temperatures, i.e. immediately after the vehicle has been running. Measurements should be made after the engine has cooled down.
  2. HANDLING CONNECTORS
    1. When disconnecting a connector, first squeeze the mating halves tightly together to release the lock, then press the lock claw and separate the connector.
    2. When disconnecting a connector, do not pull on the harnesses. Grasp the connector directly and separate it.
    3. Before connecting the connector, check that there are no deformed, damaged, loose or missing terminals.
    4. When connecting a connector, press firmly until you hear the lock close with a "click" sound.
    5. If checking the connector with a TOYOTA electrical tester, check it from the backside (harness side the connector using a mini test lead.

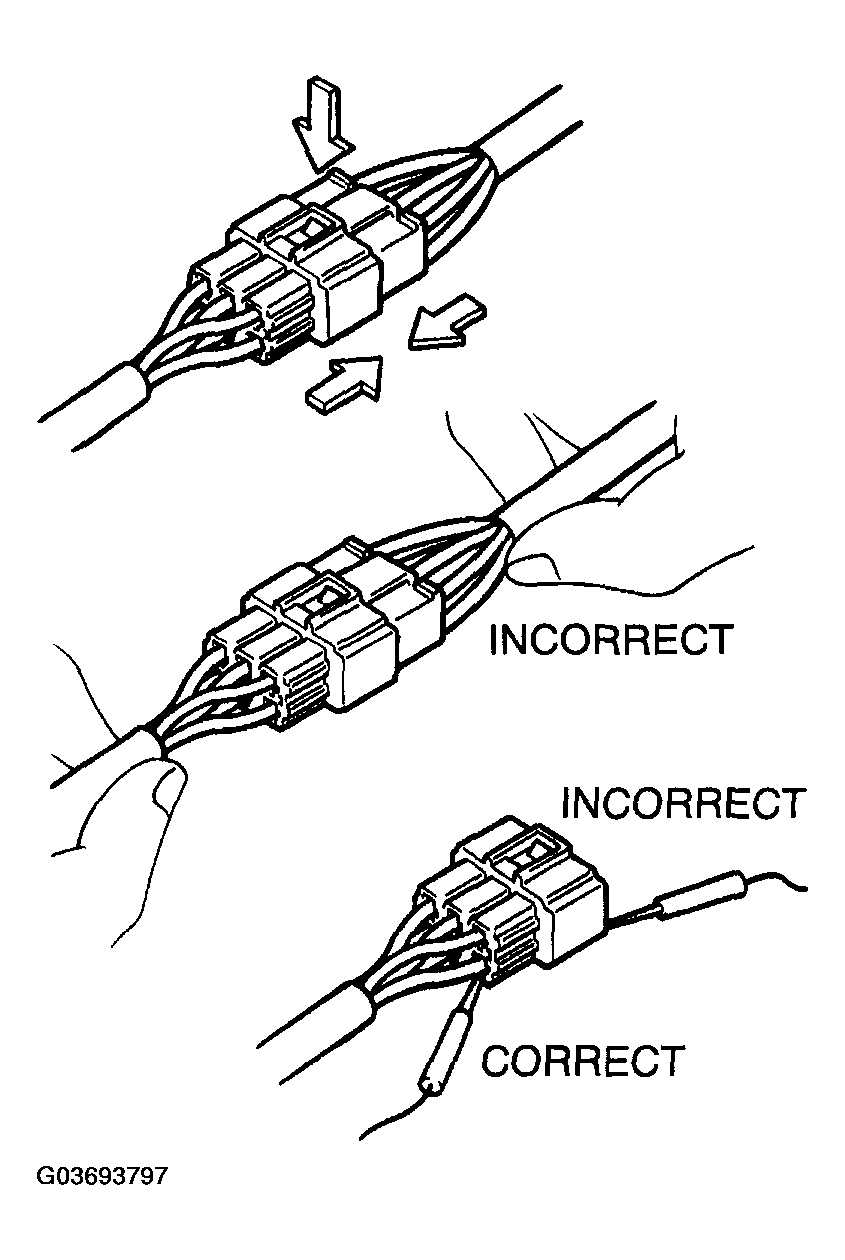

    Fig 1: Identifying Proper Method For Disconnecting Connectors
    G03693797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
