2004 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Engine Control System: ECM: Replacement

NOTE:
  • Wipe water off of the ECM cover and edges.
  • Replacement of the ECM should be performed indoors, away from rain.
  • No water should come into contact with the inside of the ECM. Connectors and screws should also be kept away from water.
  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE ENGINE ROOM SIDE COVER
    1. Remove the 3 clips and engine room side cover.
  3. REMOVE ECM COVER
    1. Remove the 3 bolts and ECM cover.
  4. REMOVE ECM
    1. Remove the 2 nuts.
    2. Disconnect the connector and remove the ECM.
  5. REMOVE ECM GASKET
    1. Peel off the sponge part of the gasket.

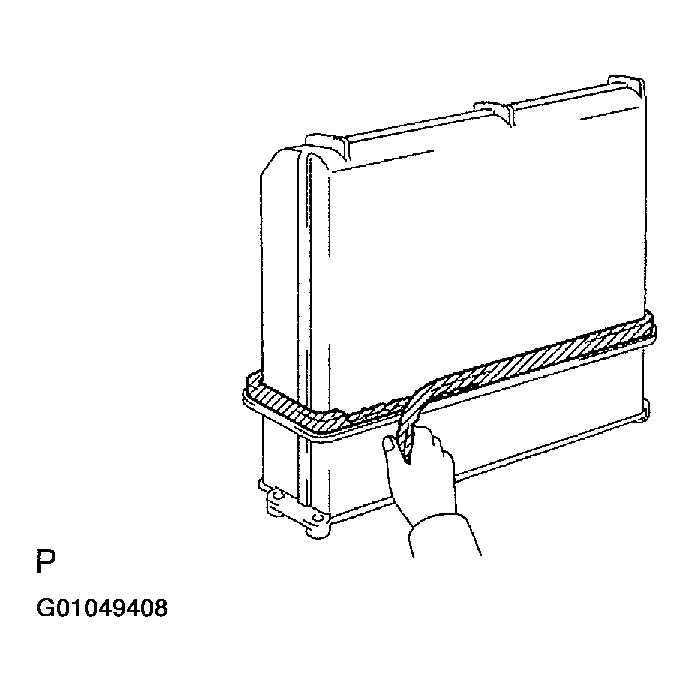

      Fig 1: Removing ECM GASKET
      G01049408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Spray gasket remover or equivalent on the remaining tape of the gasket.
      NOTE: When using gasket remover or equivalent, cover the ECM connector with a shop rag.
