2004 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Throttle Body ASSY: Replacement

  1. DRAIN ENGINE COOLANT (See  ENGINE COOLANT  )
  2. REMOVE V-BANK COVER
    1. Remove the 2 nuts and V-bank cover.
  3. REMOVE AIR CLEANER INLET NO. 1
  4. REMOVE INTAKE AIR CONNECTOR PIPE
    1. Disconnect the air hose and ventilation hose.
    2. Remove the bolt.
    3. Loosen the 2 hose clamps and remove the intake air connector pipe.
  5. REMOVE THROTTLE BODY ASSY
    1. Disconnect the water by-pass hose and water by-pass hose No. 7.
    2. Disconnect the connector.
    3. Remove the 2 bolts, 2 nuts, throttle body and gasket.

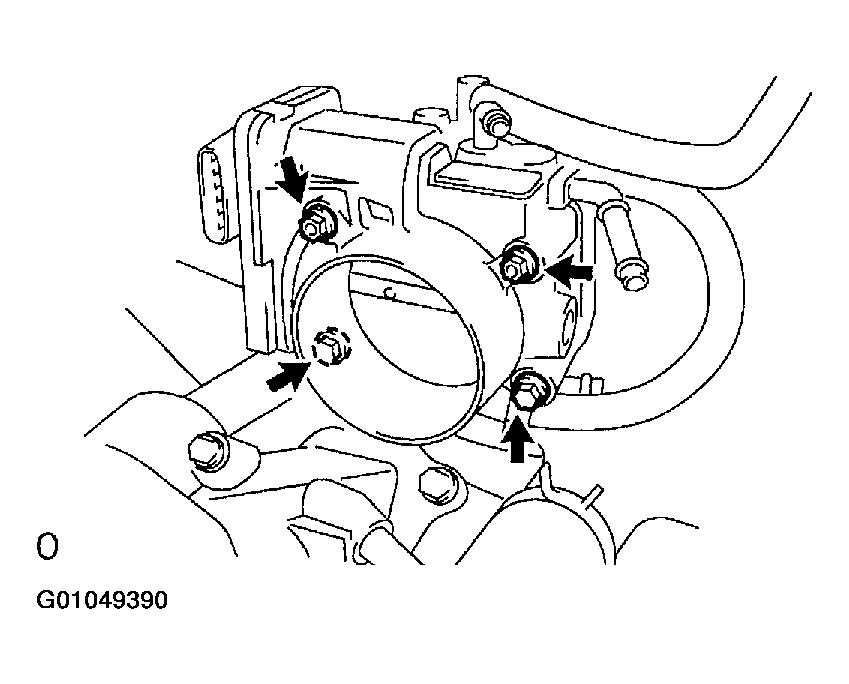

      Fig 1: Removing Throttle Body Assy
      G01049390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL THROTTLE BODY ASSY
    1. Install a new gasket and the throttle body with the 2 bolts and 2 nuts.

      Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

    2. Connect the water by-pass hose and water by-pass hose No. 7.
    3. Connect the connector.

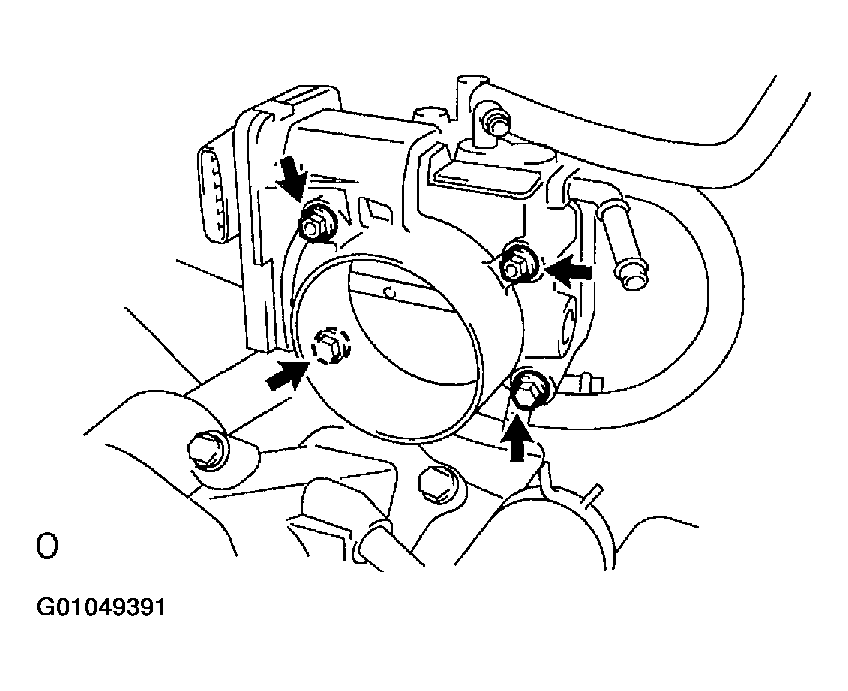

      Fig 2: Installing Throttle Body Assy
      G01049391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL INTAKE AIR CONNECTOR PIPE
    1. Install the intake air connector pipe with the bolt and 2 hose clamps.

      Torque:

      4.0 N.m (41 kgf.cm, 35 in.lbf) for hose clamp

      5.0 N.m (51 kgf.cm, 44 in.lbf) for bolt

    2. Connect the air hose and ventilation hose.
  8. INSTALL AIR CLEANER INLET NO. 1
  9. INSTALL V-BANK COVER

    Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  10. REFILL ENGINE COOLANT (See  ENGINE COOLANT  )
  11. CHECK FOR ENGINE COOLANT LEAKS (See  INSPECTION  )
  12. INSPECT THROTTLE BODY FUNCTION (See  ON-VEHICLE INSPECTION  )
