Ignition Coil: Replacement
- REMOVE V-BANK COVER
- REMOVE ENGINE ROOM SIDE COVER
- REMOVE INTAKE AIR CONNECTOR PIPE
- REMOVE OIL LEVEL GAGE SUB-ASSY (See REPLACEMENT )

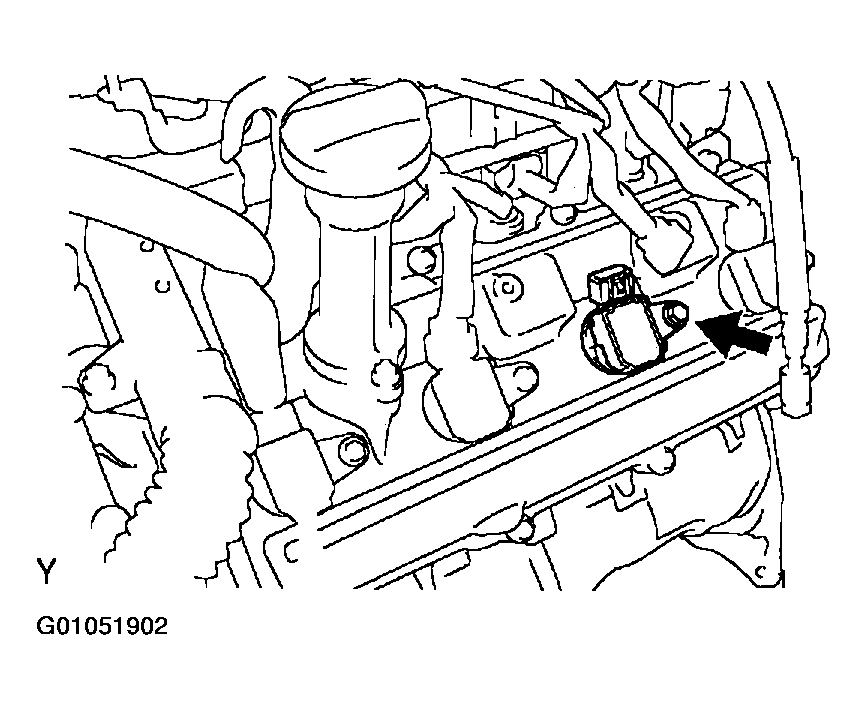

- REMOVE IGNITION COIL ASSY
- Disconnect the ignition coil connector.
- Remove the bolt and pull out the ignition coil.
- INSTALL IGNITION COIL ASSY
- Connect a new ignition coil to the spark plug, attach the ignition coil to the cylinder head cover, and install the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in. lbf)
- Connect the ignition coil connector.
- Connect a new ignition coil to the spark plug, attach the ignition coil to the cylinder head cover, and install the bolt.
- INSTALL OIL LEVEL GAGE SUB-ASSY (See REPLACEMENT )
- INSTALL INTAKE AIR CONNECTOR PIPE
- INSTALL V-BANK COVER
- INSTALL ENGINE ROOM SIDE COVER
