Camshaft Position Sensor: Replacement
- REMOVE AIR CLEANER INLET NO.1 (See REPLACEMENT )
- DRAIN ENGINE COOLANT (See ENGINE COOLANT )
- REMOVE V-BANK COVER
- REMOVE ENGINE ROOM SIDE COVER
- DISCONNECT RADIATOR HOSE NO.1
- REMOVE TIMING BELT COVER SUB-ASSY NO.3 LH (See REPLACEMENT )
- REMOVE CAMSHAFT POSITION SENSOR

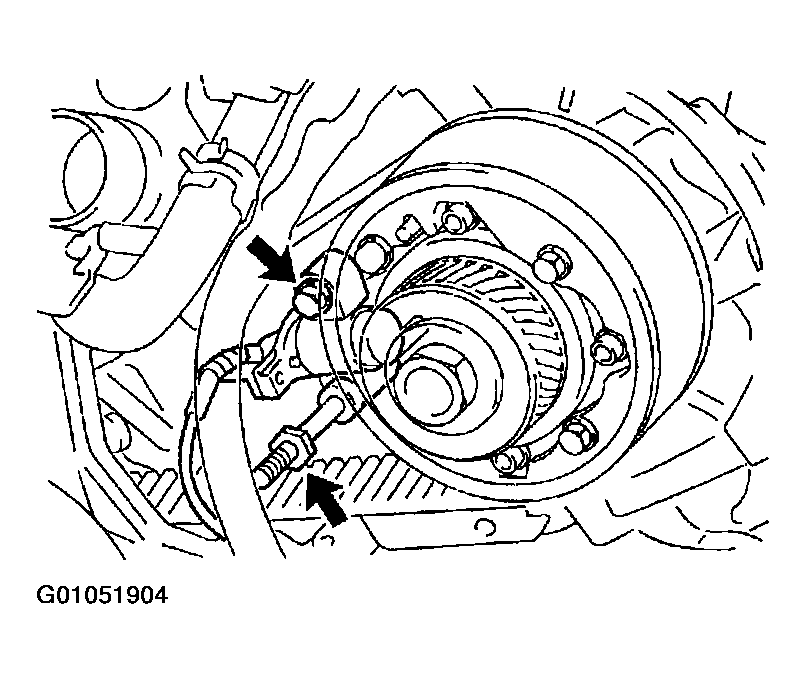

- Remove the bolt, stud bolt and sensor.
- INSTALL CAMSHAFT POSITION SENSOR
- Install a new sensor with the bolt and stud bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in. lbf)
- Install a new sensor with the bolt and stud bolt.
- INSTALL TIMING BELT COVER SUB-ASSY NO.3 LH (See REPLACEMENT )
- CONNECT RADIATOR HOSE NO.1
- INSTALL AIR CLEANER INLET NO.1 (See REPLACEMENT )
- INSTALL ENGINE ROOM SIDE COVER
- INSTALL V-BANK COVER
- REFILL ENGINE COOLANT (See ENGINE COOLANT )
- WARM UP ENGINE
- CHECK FOR ENGINE COOLANT LEAKS
