Ignition Switch Test

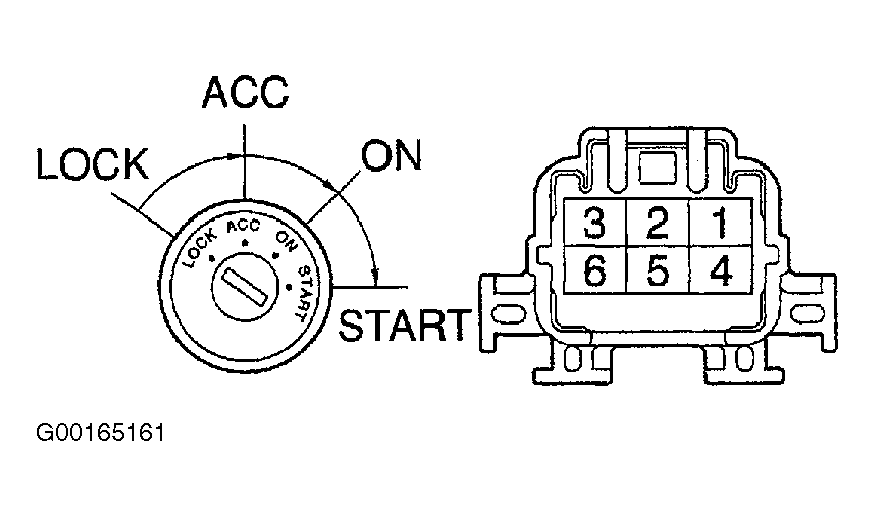

Using ohmmeter, measure resistance between specified terminals. For resistance specifications, see IGNITION SWITCH CONNECTOR RESISTANCE . If the resistance is not as specified, replace switch.
| Switch Position | Terminal No. | Resistance (Ohm) |
|---|---|---|
| LOCK | All | 10k or higher |
| ACC | 1 & 3 | Below 1 |
| ON | 1 & 2, 1 & 3, 5 & 6 | Below 1 |
| START | 1 & 2, 4 & 5, 5 & 6 | Below 1 |
