2004 Lexus IS 300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
On-Vehicle Repair
- REMOVE NO. 1 AND NO. 2 ENGINE UNDER COVERS
- REMOVE LH FRONT FLOOR CENTER COVER
- REMOVE NO. 1 REAR FLOOR BOARD

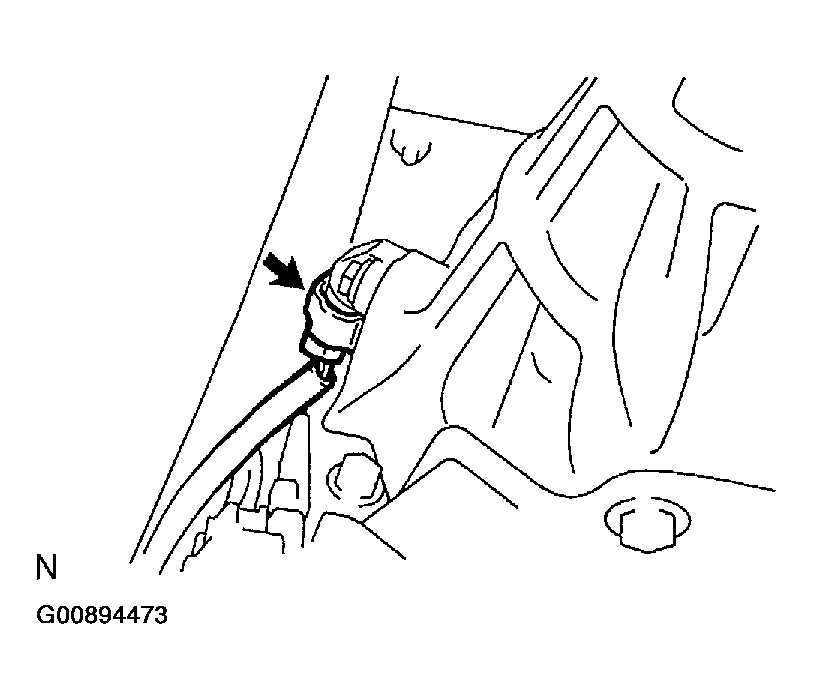

- DISCONNECT VEHICLE SPEED SENSOR CONNECTOR.
- REMOVE VEHICLE SPEED SENSOR
- Remove the bolt and vehicle speed sensor.
- Remove the O-ring from the vehicle speed sensor.
- INSTALL VEHICLE SPEED SENSOR
- Coat a new O-ring with ATF and install it to the vehicle speed sensor.
- Install the vehicle speed sensor to the extension housing and torque the bolt.
- Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- INSTALL NO. 1 REAR FLOOR BOARD
- INSTALL LH FRONT FLOOR CENTER COVER
- INSTALL NO. 1 AND NO. 2 ENGINE UNDER COVERS
