2004 Lexus IS 300 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Floor Shift Assembly: Installation

INSTALL FLOOR SHIFT LEVER ASSEMBLY

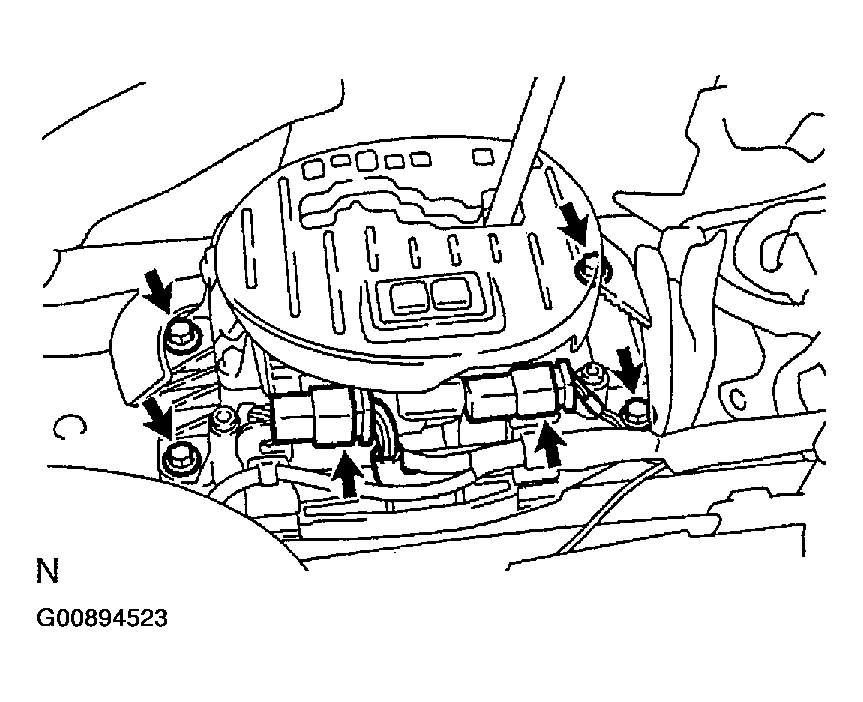

1. Connect the 2 connectors to the floor shift lever assembly.
2. Install the floor shift lever assembly with the 4 bolts.
  1. Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)
INSTALL CONSOLE BOX ASSEMBLY (See INSTALLATION )
1. Install the console box assembly.
2. Install the parking brake hole cover assembly.
3. Install the box bottom mat.
4. Install the console upper panel.
INSTALL NO. 1 FLOOR SHIFT GEAR SHIFTING ROD
1. Shift into the N position.
2. Connect the No. 1 floor shift gear shifting rod and connecting rod swivel with the nut.
  1. Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
CHECK SHIFTING LEVER POSITION (See PRE-CHECK )

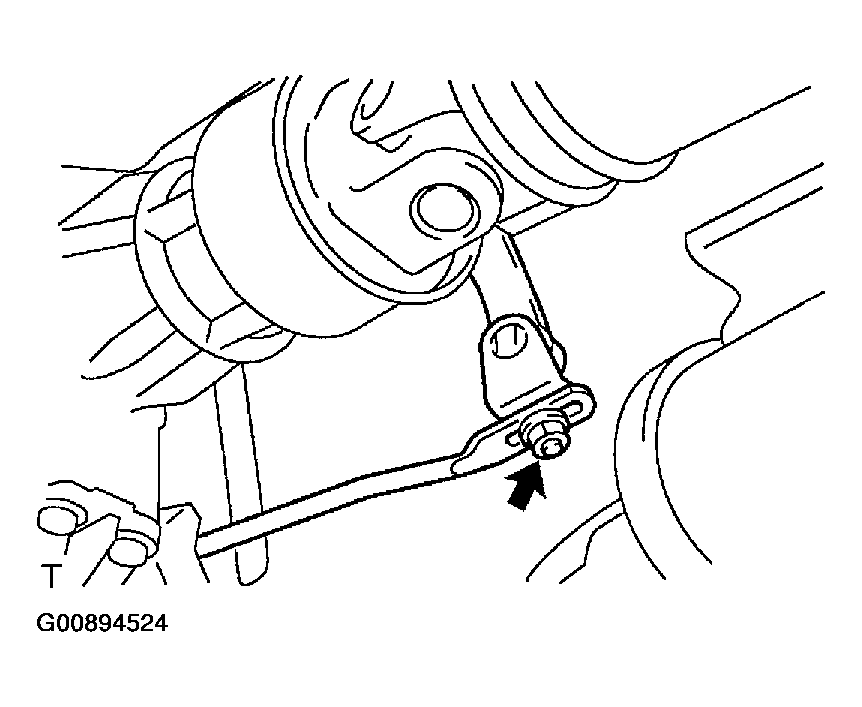

Fig 2: Installing No. 1 Floor Shift Gear Shifting Rod
