Automatic Transmission Unit: Installation

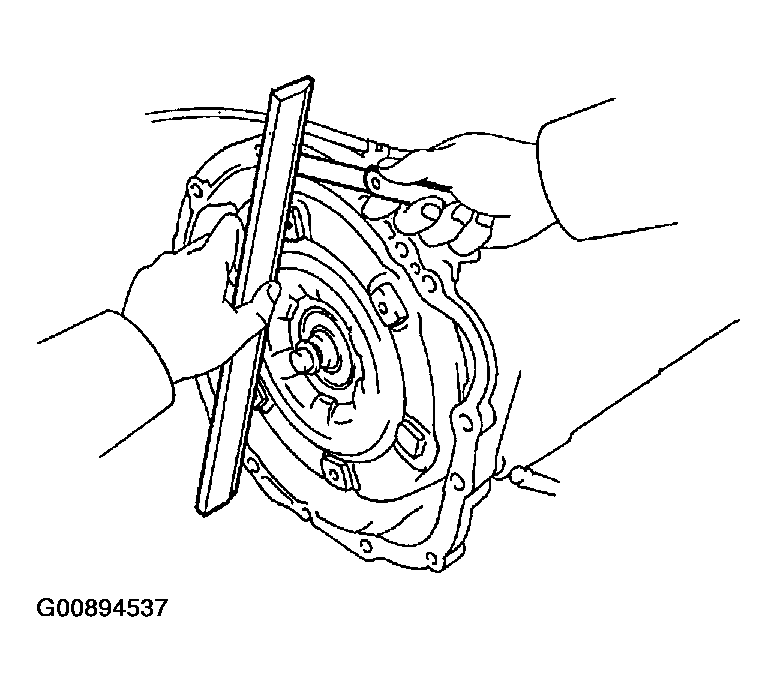

- CHECK TORQUE CONVERTER CLUTCH INSTALLATION
Using calipers and a straight edge, measure from the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.
- Correct distance: More than 0.1 mm (0.004 in.)
If the distance is less than the standard, check for an improper installation.
- INSTALL TRANSMISSION
Installation is in the reverse order of removal (See REMOVAL ).
HINT:
After installation, check and inspect items as follows.
- Adjust the shift lever position (See PRE-CHECK ).
- Fill ATF and check fluid level (See PRE-CHECK ).
- Do the road test (See PRE-CHECK ).
- Fill with engine coolant (See REPLACEMENT ).
