2004 Lexus GX 470FACTORY OEM SERVICE PROCEDURE

SFI System (2UZ-FE): Inspection

  1. INSPECT MASS AIR FLOW METER
    1. Output voltage inspection.
      1. Apply battery voltage across terminals 3 (+B) and 4 (E2G).
      2. Connect the positive (+) tester prove to terminal 5 (VG), and negative (-) tester prove to terminal 4 (E2G).
      3. Blow air into the MAF meter, and check if the voltage fluctuates.
    2. Resistance inspection.
      1. Using an ohmmeter, measure resistance between the terminals 2 (THA) and 1 (E2).

      Resistance:

      1. 12.5-16.9 kΩ at -20°C (-4°F)
      2. 2.19-2.67 kΩ at 20°C (68°F)
      3. 0.50-0.68 kΩ at 60°C (140°F)

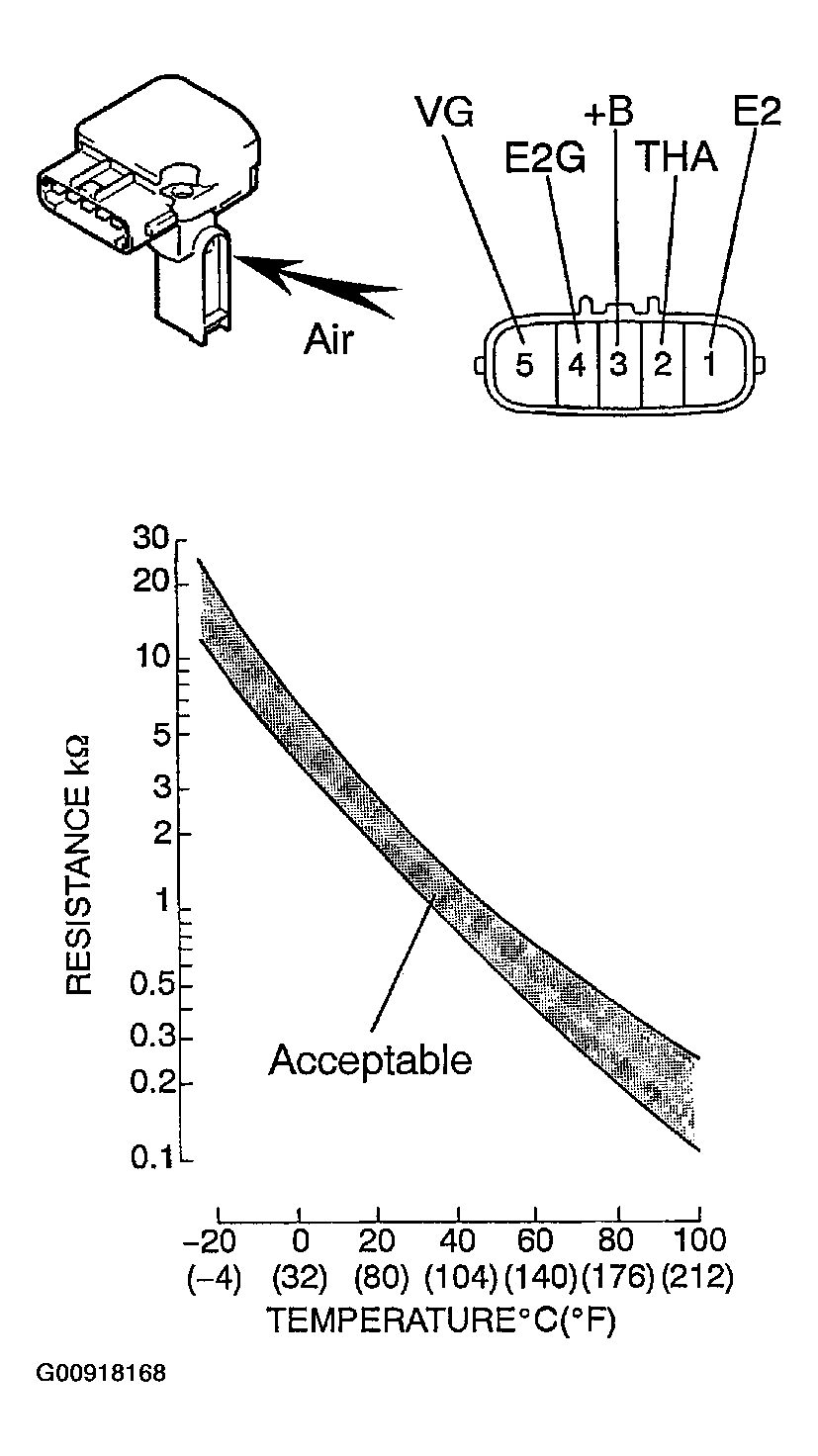

      Fig 1: Identifying MAF Sensor Terminals & Resistance Values
      G00918168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT THROTTLE W/MOTOR BODY ASSY
    1. Disconnect the throttle control motor connector.
    2. Using an ohmmeter, measure the motor resistance between terminal M+ and M-.
      1. Motor resistance: 0.3-100 Ω at 20 °C (68 °F)

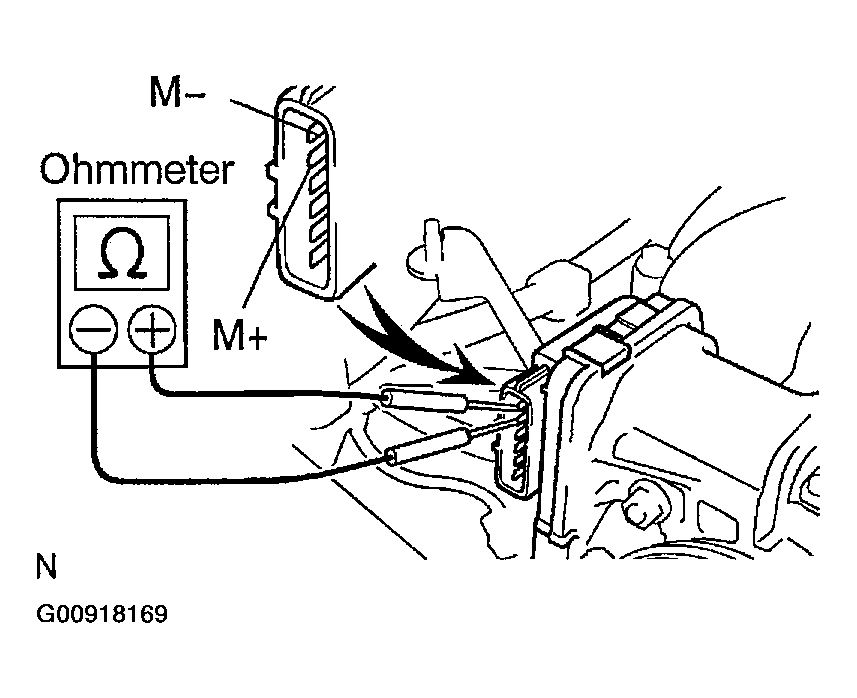

      Fig 2: Measuring Motor Resistance Between Throttle Control Motor Terminals M+ & M-
      G00918169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT KNOCK SENSOR
    1. Continuity inspection.
      1. Using an ohmmeter, check that these is no continuity between the terminal and body.
      1. Specified condition: No continuity

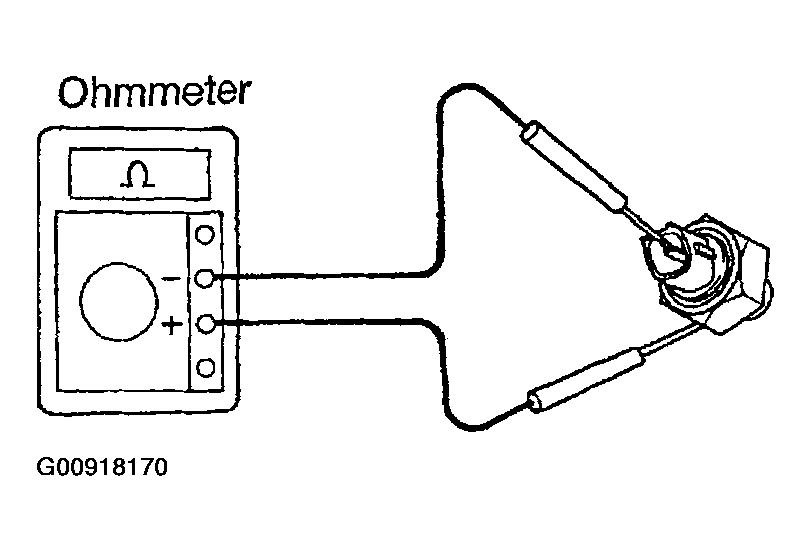

      Fig 3: Checking Knock Sensor Resistance
      G00918170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT ENGINE COOLANT TEMPERATURE SENSOR
    1. Resistance inspection.
      1. Using an ohmmeter, measure the resistance between terminals.

      Resistance:

      1. 2.32 - 2.59 kΩ at 20 °C (68 °F)
      2. 0.310 - 0.326 kΩ at 80 °C (176 °F)
      NOTE: When inspecting the water temperature sensor in water, prevent water flow into the terminals. After inspection, wipe the water off from the sensor.
